Steel Cattle Sheds Easy Install Prefabricated Cow Farm Building

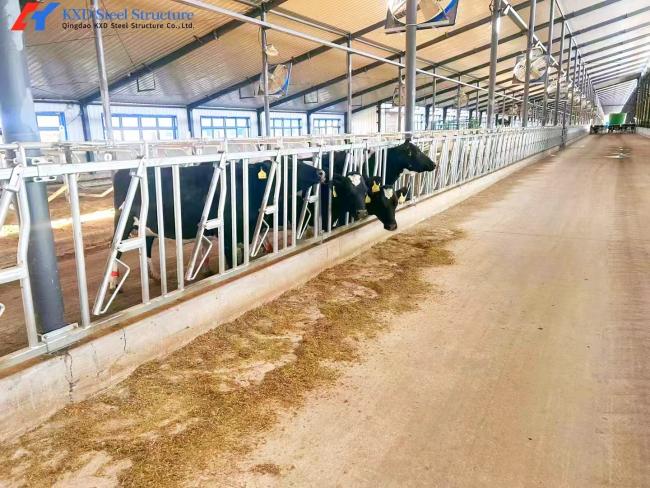

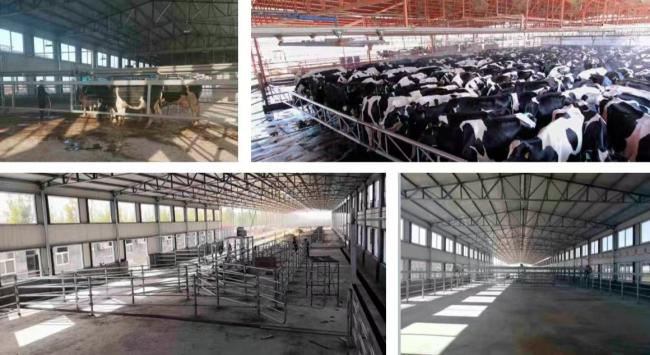

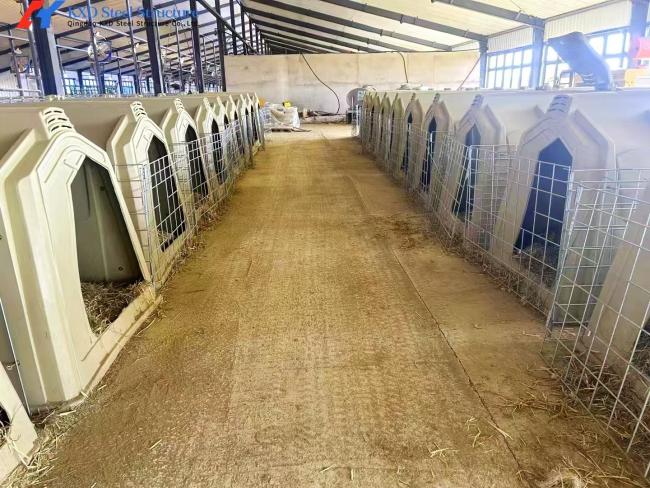

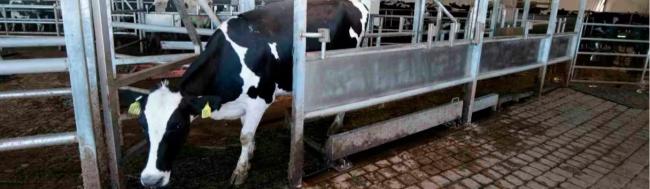

Cattle Shed With Eqipment
Cattle Shed Description
Prefabricated cow farm building use the high quality steel structure for the framework,steel sheet or sandwich panel for the wall/roof, this shed protects the cows from storm and rain.cold and warm, the cowshed can be small or large, we can customize the shed as per clients' requirements.
Advantages:
♦Low cost:the unit price at FOB Qingdao port,range from $25-$45 according to customer’s needs.
♦Strong construction:normal wind speed designed as 100-130km/h,live/dead loads:0.5kn/m2,can resist 8 grade earthquake degree.
♦Easy to install:all the items are pre-fabricated,pre-cut,pre-welded,pre-drilled,factory made.
♦Low maintenance:the long service life more than 50 years.
Cattle Shed Main Material
|
Column and Beam |
Material Q235 steel ( painted or galvanized) |
|
Wall & Roof Purlin |
C or Z section steel, size from C120~C320, Z100~Z200 |
|
Wall & Roof Panel |
Sandwich panels with eps, rock cotton, fiber glass, pu etc. the sandwich panel thickness can be at 50/75/100mm. |
|
Bracing |
Steel angle, steel pipe, steel round. |
|
Gutter |
Steel sheet or galvanized steel sheet |
|
Rainspout |
PVC pipe |
|
Doors |
Sliding sandwich panel door or rolling metal door |
|
Accessories |
Anchor bolt,high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc. |

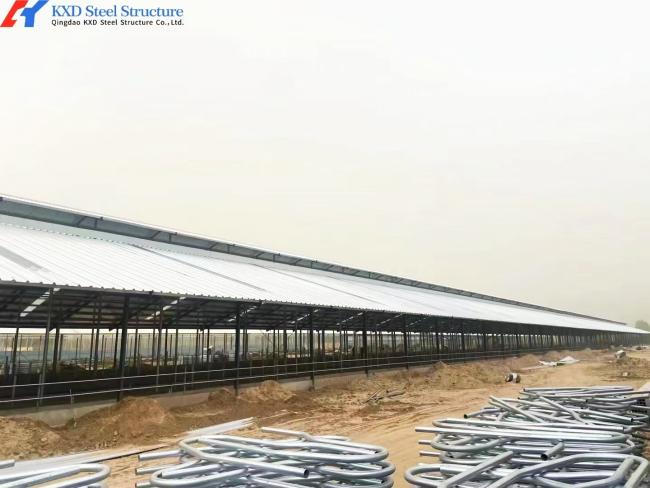

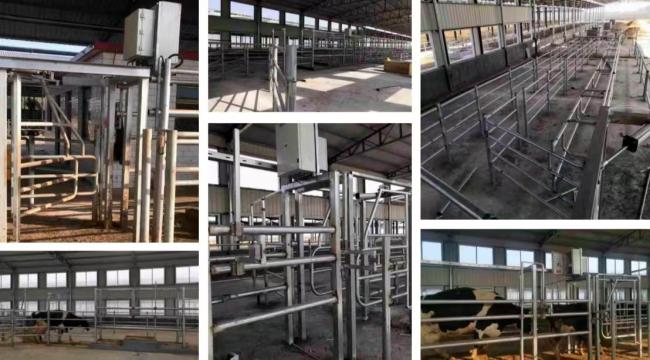

On-site Installation
Automatic Grouping System
Animal Identification & Intelligent Weighing System

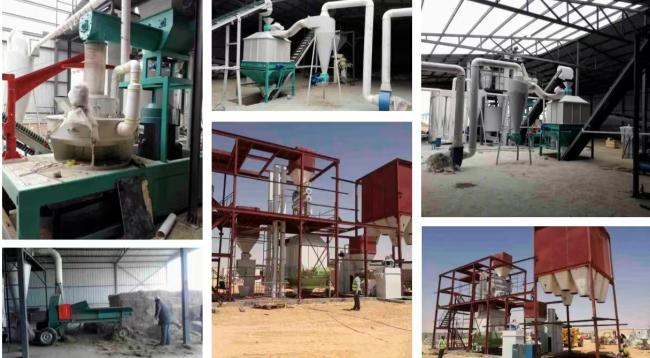

Fully Automatic Production & Processing System
Training Guidance
After-sales Service
