Automatic Battery Cage Poultry Farming Equipment with Hot-Dip Galvanized Steel and Multi-Layer Design for Broiler Chicken House
Price:
20-80 USD per sqm
MOQ:
500 square meters
Delivery Time:
15-35days
Brand:
KXD
Product Description
Automatic Battery Cage Poultry Farming Equipment for Broiler Chicken House
Our Automatic Battery Cage Poultry Farming Equipment is specially designed for broiler chicken breeding, integrating automation, durability and high efficiency. This system is tailored to meet the large-scale, intensive breeding needs of B2B customers including poultry farms, breeding enterprises and agricultural project contractors.
Core Structure Details

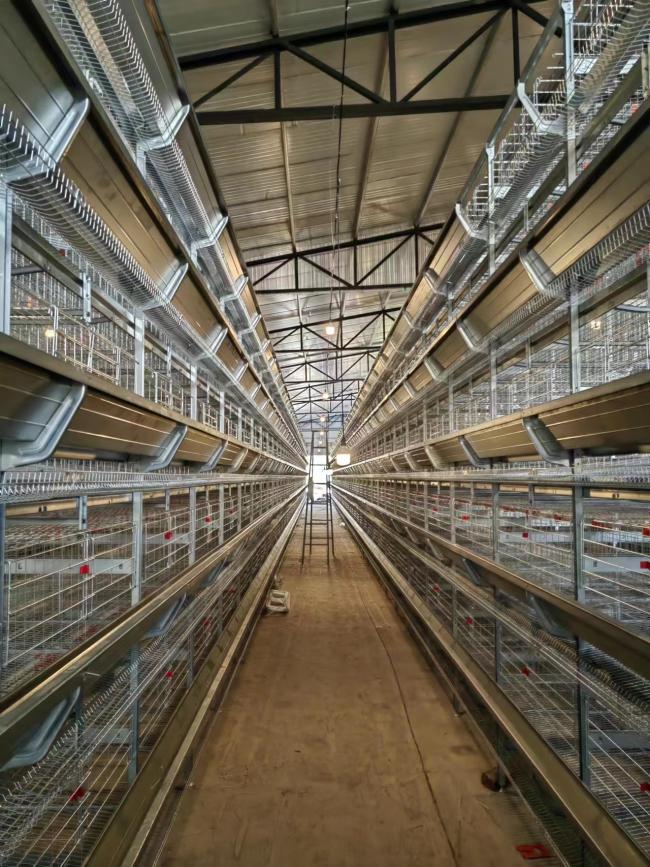

The battery cage adopts a multi-layer superimposed design that maximizes breeding space utilization while saving land area. Each component is engineered for stability and long service life in high-density broiler breeding environments.
Cage Body (Core Breeding Area)
- Material: High-quality hot-dip galvanized steel wire (2.5-3.0mm thickness) with corrosion resistance and 15-20 year service life
- Mesh Design: Precision-welded with optimal spacing (2.5cm×5cm bottom, 5cm×5cm sides) for safety, ventilation and manure drainage
- Cage Size: Customizable - standard specification 180cm×60cm×45cm (L×W×H) holding 15-20 broilers per layer
- Edge Treatment: Polished and deburred edges prevent injuries and reduce disease risk
Frame & Support Structure
- Frame Material: High-strength rectangular steel pipe (50mm×50mm×3mm) for maximum stability
- Connection Mode: Bolted connection for easy assembly, disassembly and transportation
- Safety Features: Anti-skid pads prevent shaking and ensure equipment safety

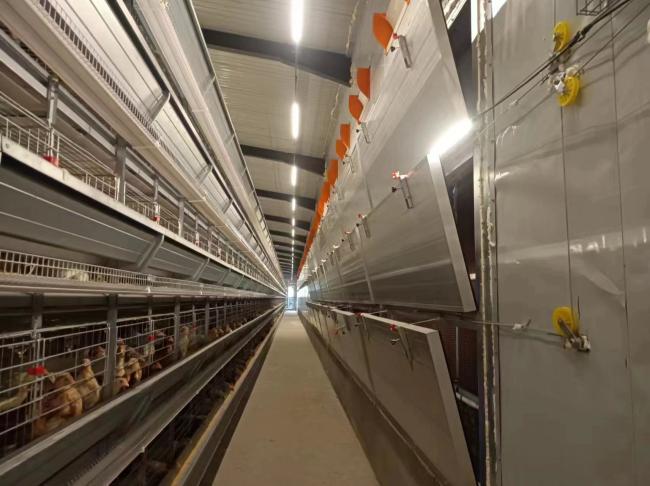

Manure Removal System
- Type: Automatic scraper manure removal system (chain plate type optional)
- Working Principle: Motor-driven scraper moves manure to collection tank automatically
- Advantage: 98% removal efficiency reduces harmful gases and disease incidence
Automatic Function Details
Integrated automation systems significantly reduce labor input while improving breeding efficiency for large-scale intensive operations.
Automatic Feeding System
- Structure: Food-grade galvanized steel feed silo (500-2000kg capacity) with conveyor system
- Working Mode: Auger transport with adjustable feeding amounts (1-2kg/bird/day)
- Control: Intelligent panel for timed, quantitative feeding - saves 80% labor costs
Automatic Drinking System
- Equipment: Nipple drinking system with food-grade stainless steel components
- Advantage: Clean, hygienic water access with adjustable flow and reduced waste
- Maintenance: Easy disassembly for cleaning with integrated filter protection

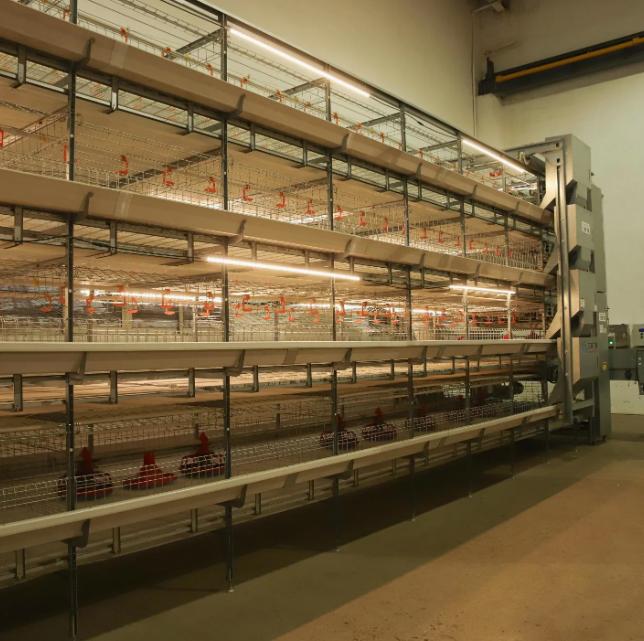

Ventilation & Temperature Control
- Ventilation: Designed ventilation gaps compatible with farm ventilation systems
- Temperature: Compatible with heating/cooling equipment for -10℃~35℃ range
Product Advantages
- High Space Utilization: 3-5 times more efficient than traditional flat breeding
- Labor-Saving & Efficient: One worker can manage 5000-10000 broilers
- Durable & Low Maintenance: 15-20 year service life with <5% annual maintenance cost
- Hygienic & Disease-Preventive: 95%+ survival rate with reduced disease incidence
- Customizable & Adaptable: Fully customizable to farm size, scale, climate and budget
Application Scenarios & B2B Services
Application Scenarios
Ideal for large-scale broiler breeding farms, poultry enterprises, agricultural cooperatives, and farm expansion/renovation projects worldwide.
B2B Supporting Services
- Customized Design: Professional design solutions with detailed drawings
- Installation Guidance: On-site engineer support or installation teams
- Quality Inspection: Strict pre-delivery testing to international standards
- After-Sales Support: 1-year free maintenance, lifetime technical guidance
- Transportation Service: Fast, safe delivery via Qingdao Port
Technical Parameters
| Parameter Name | Specification |
|---|---|
| Material | Hot-dip galvanized steel wire (2.5-3.0mm), rectangular steel pipe (50×50×3mm) |
| Cage Layers | 3-5 layers (customizable) |
| Single Cage Size | 180×60×45cm (length×width×height, customizable) |
| Breeding Capacity per Cage | 15-20 broilers/layer |
| Manure Removal System | Automatic scraper/chain plate type |
| Feeding System | Automatic auger feeding, adjustable feeding amount |
| Drinking System | Nipple drinking system, food-grade material |
| Service Life | 15-20 years |
Our Automatic Battery Cage Poultry Farming Equipment focuses on solving B2B points in large-scale broiler breeding with high quality, efficiency and cost-effectiveness. With extensive global export experience, we provide comprehensive solutions from design and production to installation and after-sales support.
