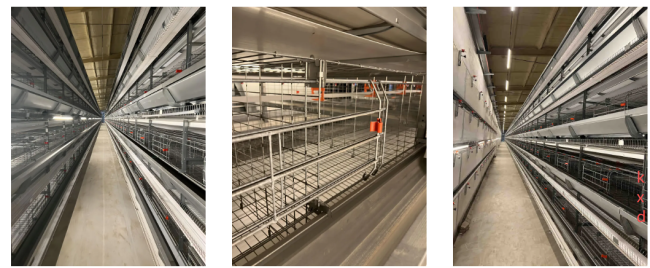

KXD Automatic Battery Cages for Laying Hens - High-Cost-Effective Corrosion Resistant Poultry Layer Farm Equipment with Automated Egg Collection
Robust and stable structure with high rearing density, maximum space utilization, and outstanding cost-effectiveness for large-scale intensive breeding.
Stable and reliable operation with ultra-low egg breakage rate, high automation level, and simple operation, greatly reducing labor intensity.
Equipped with front-end filtration system to ensure clean and hygienic drinking water; two drinking nipples per cage guarantee sufficient and timely water supply for each laying hen.
Adopts high-corrosion-resistant materials and optimized structural design, ensuring clean and smooth manure removal, keeping the chicken house hygienic and reducing harmful gas accumulation.
High-degree automatic adjustment of temperature, humidity and ventilation, effectively reducing hen mortality, stabilizing the laying cycle, and improving egg production efficiency.
Adopts zinc-aluminum-magnesium alloy sheets for excellent corrosion resistance and long service life.
Made of aluminum-zinc coated welded wire mesh, with 3-4 times higher corrosion resistance than conventional hot-dip galvanized wire, ensuring durable and stable performance.
Equipped with smooth sliding cage doors for easy operation and safe, reliable containment.
Features a heavy-duty V-shaped roller design, which is high-strength, feed-saving, and mold-resistant, effectively improving feed conversion efficiency.

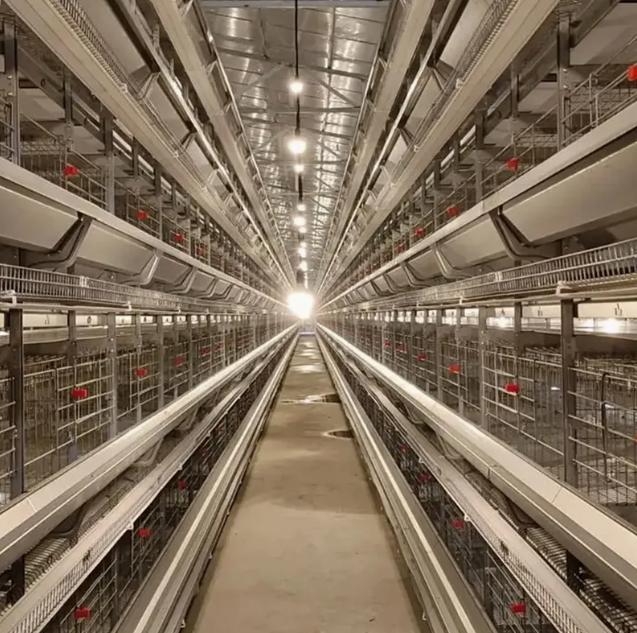

- Heavy-Duty Stacked Frame: Scientifically designed with sturdy structure for lower bird mortality. High-density breeding effectively saves land cost and improves breeding efficiency.
- Automatic Egg Collection System: Stable operation, low egg breakage rate, high automation level, and easy operation, greatly reducing labor intensity.
- Reliable Drinking Water System: Equipped with front-end filtration for clean drinking water. Each cage has 2 drinking nipples to ensure sufficient and convenient water supply.
- Efficient Manure Removal System: Made of corrosion-resistant materials with optimized structure, ensuring clean and smooth manure removal and a hygienic coop environment.
- Intelligent Climate Control System: Fully automated and intelligent adjustment creates a comfortable living environment, lowers mortality, and effectively increases egg production rate.
| Product Name | 4 tier H type chicken laying hens cage |
|---|---|
| Model | KXD |
| Material | Galfan metal |
| Tiers | 4 |
| One Unit Size | 1206mm × 1540mm × 2790mm (L×W×H) |
| Unit Capacity | 256 |
| One Cell Size | 1206mm × 770mm × 640mm (L×W×H) |
| Cell Capacity | 8 hens per cell |
| Life Span | At least 20 years |
| Living Space | 301.5 cm² |

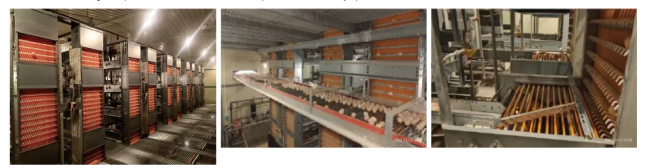

Vertical focusing efficiency up to 12,000 eggs per hour. Conveyor belt speed is adjustable from 0 to 1.2 m/min, ensuring smooth and seamless coordination with vertical egg collection. Equipped with a flexible buffer system, the egg damage rate is kept below 0.3%.
Built-in AI vision inspection system automatically identifies and removes cracked and deformed eggs, with a sorting accuracy rate of over 99.8%.
- Horizontal focusing filtration with soft guide plates and separated vertical electrode bars on both ends
- Top-axis design enables stable weight adjustment and egg flipping without collision
- High-quality PP egg conveyor belts with low elongation ensure stable operation and long service life
- Each tier fitted with soft collection device to remove broken shells and debris before vertical weighing
- Belt + integrated pressure claw structure for simpler mechanism, easier operation and lower maintenance cost
