Modular Structure Automatic Pan Feeding System for High Energy Efficiency Broiler Floor Farming with Quick Assembly
| Product Name | The broiler floor-raising system |
|---|---|
| Type | Floor-raising system |
| Customization Capabilities | Customized |

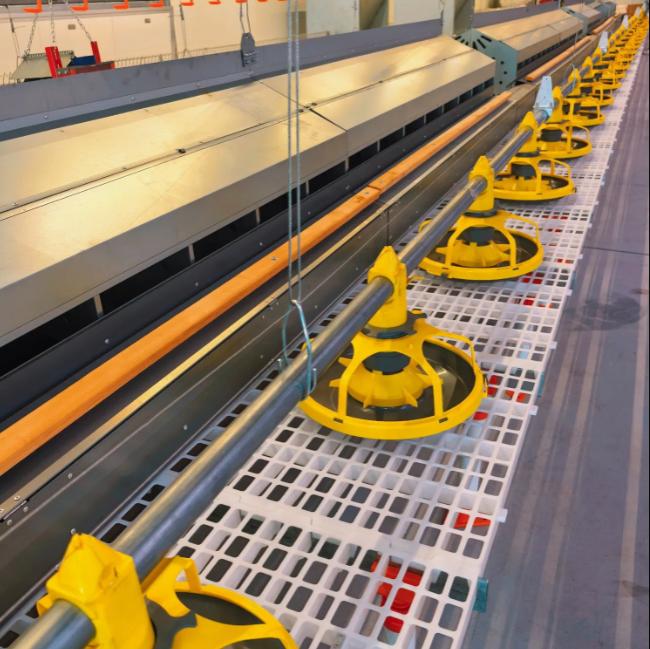

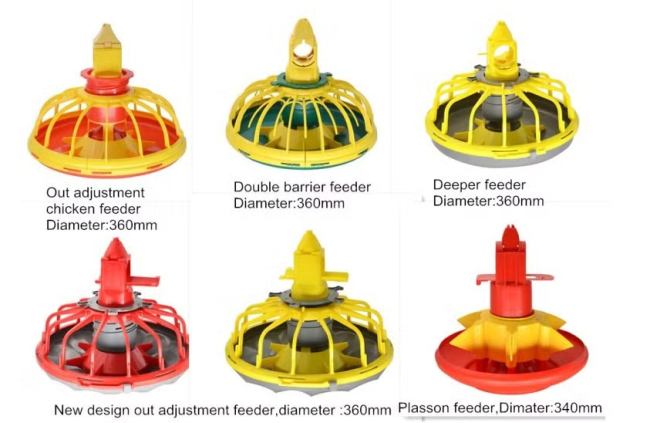

This automatic feeding system delivers feed via helical spring auger rotation, consisting of main feed line and pan feeding line.
Starts from feed silo or manual hopper. Equipped with end feed sensor to automatically start and stop the motor, realizing fully automatic feed conveying.
Each branch feeding line is fitted with feed sensor for automatic feeding control.
- Knock-down structure, saves shipping space and protects galvanized surface
- Plate thickness: over 1.2mm
- Material: 275g hot-dip galvanized steel sheet
Two imported brands optional:
- Germany IFM two-wire feed sensor
- Israel Agrologic three-wire feed sensor
- Die-cast aluminum alloy housing and flange, good heat dissipation, rust-proof and stable operation
- Split gearbox design, easy disassembly and replacement
This complete automatic drinking system consists of pre-water treatment unit, main water supply unit, water inlet assembly, pressure regulator, line end assembly, nipple drinking lines, lifting winches, suspension & lifting system and anti-perching device.
Equipped with water filter, flow meter, pressure gauge, pressure regulator and dosing injector. Water tank and pressure stabilizing device are available as options.
Integrated functions of pressure adjustment, backflow prevention and water level indication. Easy operation and sensitive response. Internal valve adopts virgin material, featuring soft texture and anti-aging property.
Gears are treated for high wear resistance and structural strength. Overall surface coated with paint, nice outlook and long service lifespan.
Drinking nipple housing is made of POM and stainless steel with double cone seal structure, ensuring excellent tightness and stable performance.
Adopts 22×22 virgin PVC square pipe with light-blocking additive inside, effectively inhibiting bacteria and algae growth.
Galvanized pipe and aluminum triangular bracket are optional alternatives.
Fitted with corrosion-resistant aluminum alloy brackets. Smooth round pipe ensures fluent water flow, clip-on design enables quick and easy installation.
Upgraded double-sealed cone nipple delivers better using effect. Hollow drinking cup design owns higher stability.
