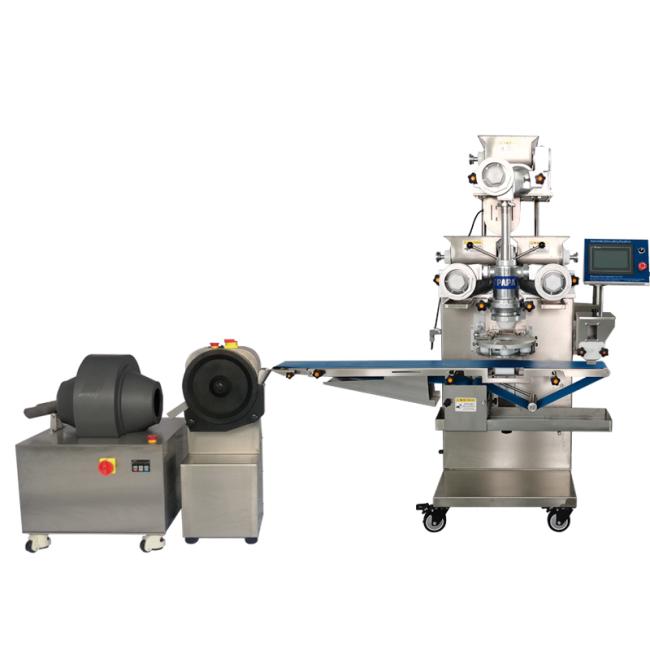

Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls
Automatic Frozen Ball Production Line - Professional Equipment for Raspberry Jam & Dark Chocolate Filling Balls
Product Overview
This fully automatic frozen ball production line is a high-end equipment specifically developed for the food industry, perfectly suitable for making raspberry jam and dark chocolate filling frozen balls. The production line integrates filling, molding, and freezing processes, achieving fully automated production from raw materials to finished products.
Core Technical Advantages
-
Dual Filling Injection System: Precisely controls layered injection of raspberry jam and dark chocolate
-
Low-Temperature Forming Technology: Maintains product texture and flavor integrity
-
PLC Intelligent Control: Touchscreen interface, adjustable parameters, simple operation
|

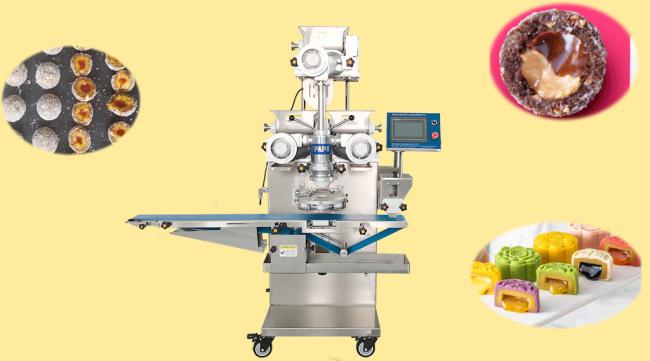

P188 Encrusting Machine |
|||||||||||||
|
Product Description: The automatic food machine can change different skin thickness, length, size of food by the machine.can also change different molds for making different shaped food products.The machine can also make double fillings, one fillings, no fillings and soft stuffed pastries such as ,filled cookies,moon cake, maamoul, pineapple cake, mochi, ice cream mochi, meat ball, crystal bun and so on. |
Packaging Details: Daub coal oil on the surface to protect the machine from moisture, then cover with plastic film. Finally pack them with wooden case.
|
||||||||||||
|
Product shape: ball, cone, round strip, side square, terraced, serrate and etc. Ratio of the product casing and filling: 1:9-10:0 |
|||||||||||||
|
Brand Name |
Model |
Power (kw) |
Voltage (V) |
Dimension L*W*H (mm) |
Output pcs/min |
Product weight (g) |
Machine weight (kg) |
Material |
Mold Material |
Packing weight (kg) |
Packing Size (mm) |
Warranty |
Certification |
|
PAPA |
P188 |
3 |
220V Single phase (Customize) |
1680*1200*1700mm |
20-120 |
10-250 |
400 |
304 Stainless Steel
|
PU |
350 |
1900*1200*1800 |
1 |
CE |
Application Areas
-
Frozen dessert production
-
Chocolate product processing
-
Bakery food manufacturing
-
Ice cream production
