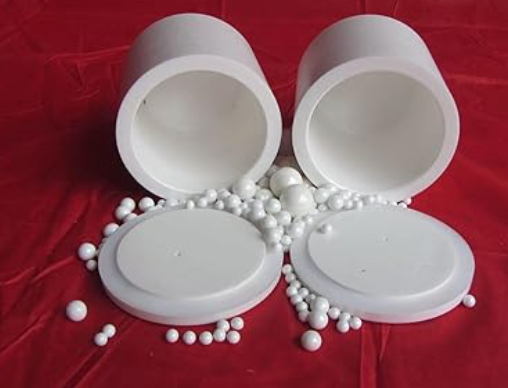

Zirconium Oxide Ceramic Ball Milling Tank Zirconia Planetary Ball Mill Jar With Lid

Zirconium Oxide Ceramic Ball Milling Tank – Zirconia Planetary Ball Mill Jar with Lid

Product Description

The Zirconium Oxide (ZrO₂) Ceramic Ball Milling Tank is a high-performance grinding jar designed for use in planetary ball mills. Made from premium yttria-stabilized zirconia (YSZ), this milling jar offers exceptional hardness, wear resistance, and chemical stability, making it ideal for grinding, mixing, and homogenizing a wide range of materials, including ceramics, minerals, metals, and pharmaceuticals.

The jar comes with a precision-fitted lid to ensure a secure seal during high-speed milling processes, preventing contamination and spillage. Its superior mechanical strength and thermal shock resistance make it suitable for both wet and dry grinding applications.

Key Features:

1. High-Quality Zirconia Material

   • Made from yttria-stabilized zirconia (YSZ), ensuring high fracture toughness and wear resistance.

   • Extremely low abrasion, minimizing contamination during milling.

   • Chemically inert, resistant to acids and alkalis, making it suitable for corrosive environments.

2. Superior Grinding Performance

   • Ideal for planetary ball mills, providing efficient and uniform particle size reduction.

   • Suitable for both wet and dry grinding processes.

   • High-density ceramic ensures minimal wear and long service life.

3. Precision-Engineered Design

   • Smooth inner surface for optimal grinding efficiency.

   • Tight-sealing lid with gasket (optional) to prevent leakage and cross-contamination.

   • Available in various sizes (e.g., 50mL, 100mL, 250mL, 500mL, 1L) to suit different milling needs.

4. Wide Range of Applications

   • Material Science: Grinding ceramics, oxides, carbides, and composites.

   • Pharmaceuticals: Milling active pharmaceutical ingredients (APIs) and excipients.

   • Chemistry & Metallurgy: Sample preparation for XRF, XRD, and spectroscopy.

   • Electronics: Powder processing for batteries, semiconductors, and nanomaterials.

5. Durability & Longevity

   • High mechanical strength (≥1200 MPa) resists cracking under high-impact milling.

   • Excellent thermal stability (operating temperature up to 1000°C).

   • Low porosity prevents material adhesion and simplifies cleaning.

Technical Specifications:

• Material: Yttria-Stabilized Zirconia (ZrO₂ + Y₂O₃)

• Density: ≥6.0 g/cm³

• Hardness (Vickers): ≥1200 HV

• Maximum Operating Temperature: 1000°C

• Available Sizes: 50mL, 100mL, 250mL, 500mL, 1L (custom sizes available)

• Lid Type: Standard screw-on lid with optional PTFE or rubber sealing gasket

• Color: White (high-purity zirconia)

Advantages Over Other Milling Jars:

✔ Lower Contamination – Unlike stainless steel or alumina jars, zirconia minimizes metal ion contamination.
✔ Higher Wear Resistance – Longer lifespan than nylon or polyurethane jars.
✔ Better Grinding Efficiency – Smooth surface ensures uniform particle size distribution.
✔ Chemical & Thermal Stability – Suitable for harsh environments and high-temperature processes.

Applications:

• Nanomaterial synthesis (graphene, quantum dots, etc.)

• Powder metallurgy and alloy mixing

• Ceramic glaze preparation

• Pharmaceutical
