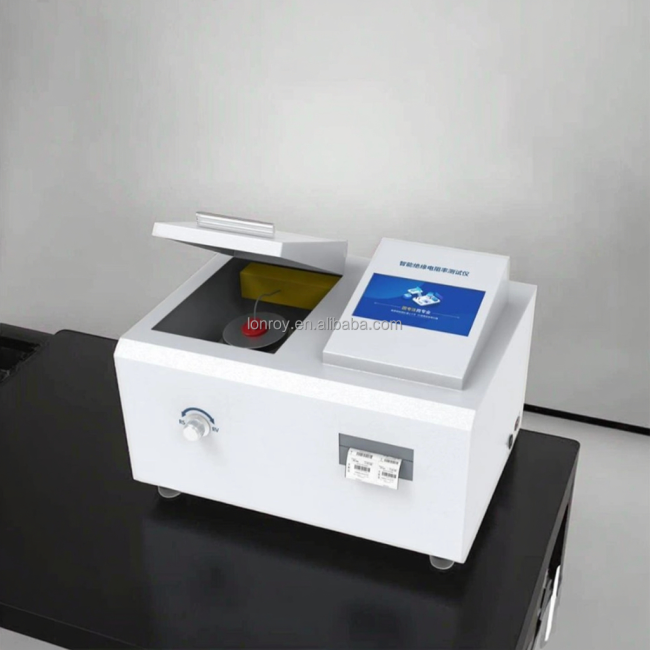

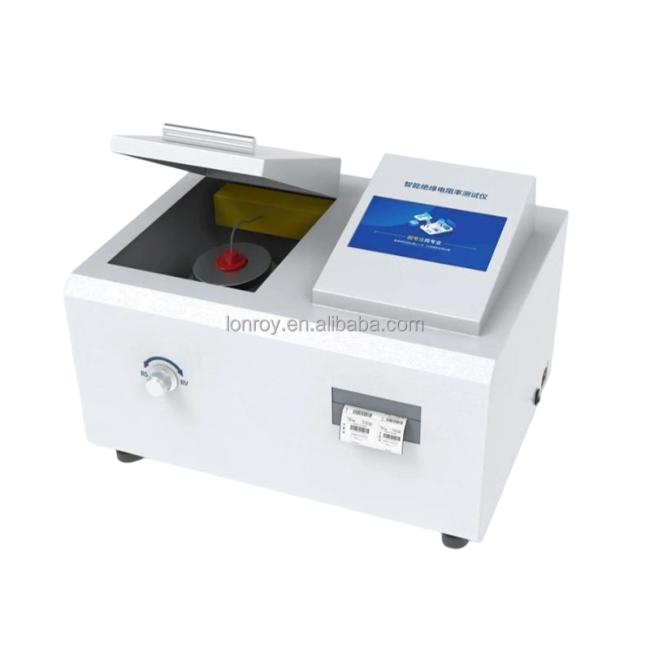

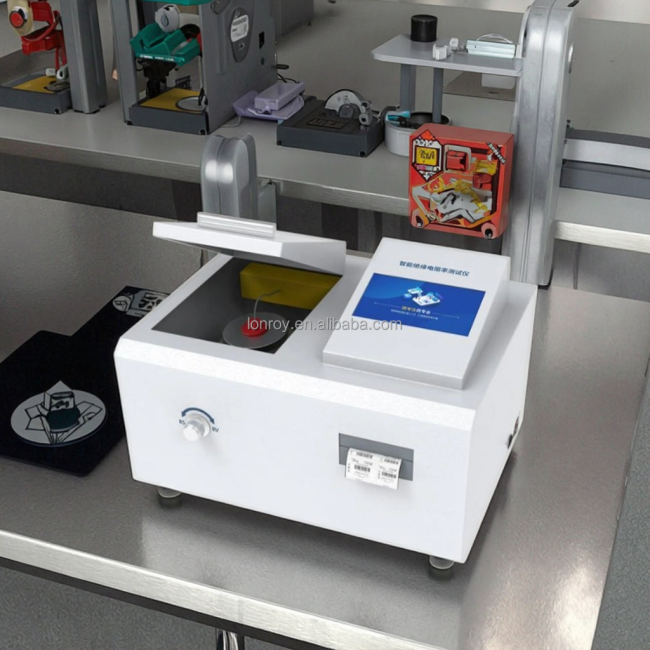

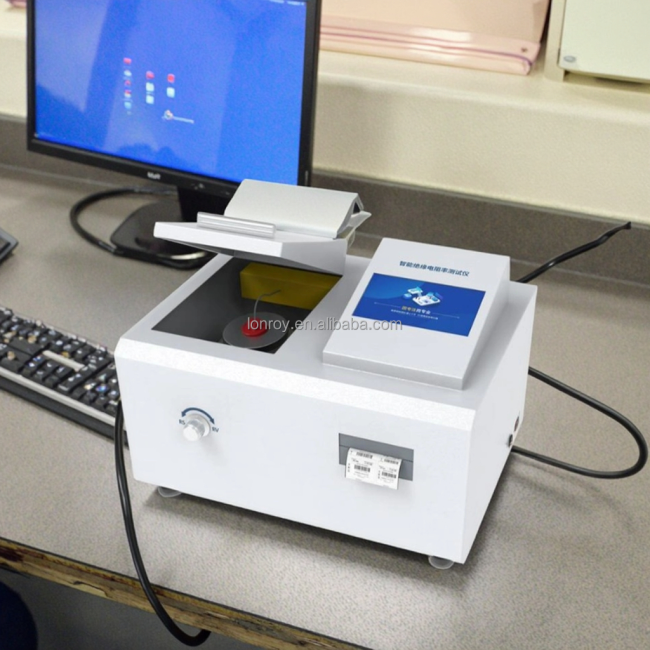

Volume Surface Resistivity Tester Solid Insulating Materials Volume Surface Resistivity Test Machine Manufacturer Price

Applications and Functions

Primarily applicable to the determination of volume and surface resistivity of solid insulating materials (such as plastics, rubber, laminates, films, resins, mica, ceramics, glass, insulating varnishes, etc.), powders, liquids, and various insulating materials.

Product Advantages

1. Overcurrent protection, short-circuit protection, and measurement voltage up to 10KV.

2. Touchscreen design for parameter setting.

3. Integrated shielding design between the measurement chamber and the main unit, significantly improving shielding effectiveness.

4. Automatic measurement of volume resistivity and surface resistivity of solid, liquid, and powder materials.

5. Supports measurement of irregular sizes.

6. Supports real-time printing of measurement results.

7. Supports personalized customization.

Standards Met

GB/T 1410-2006 Solid Insulating Materials—Test Methods for Volume Resistivity and Surface Resistivity

GB 12014 Antistatic Work Clothes

GB/T 20991-2007 Personal Protective Equipment—Test Methods for Footwear

GB 4385-1995 Technical Requirements for Antistatic and Conductive Shoes

GB/T 12703.4-2010 Textiles—Evaluation of Electrostatic Properties—Part 4—Resistivity

GB/T 12703.6-2010 Textiles—Evaluation of Electrostatic Properties—Part 6 Partial Fiber Leakage Resistance

GB/T 15738-2008 Test Method for Resistivity of Conductive and Antistatic Fiber-Reinforced Plastics

GB/T 18044-2008 Carpets - Evaluation Method for Static Electricity Habits - Walking Test

GB/T 18864-2002 Vulcanized Rubber - Industrial Antistatic and Conductive Products - Resistance Limits

GB/T 22042-2008 Clothing - Antistatic Properties - Test Method for Surface Resistivity

GB/T 24249-2009 Antistatic Cleanroom Fabrics

GB/T 26825-2011 Antistatic and Corrosion-Resistant Adhesives

GB 50515-2010 Design Specification for Conductive (Antistatic) Flooring

GJB 5104-2004 General Requirements for Antistatic Coatings and Static Electricity Performance of Radio Fuze Helmets

Test requirements

Diameter greater than 100mm (electrodes smaller than this size must be custom-made).

Operating conditions: Ambient temperature: 15-40℃; Ambient humidity: 30-70%.
