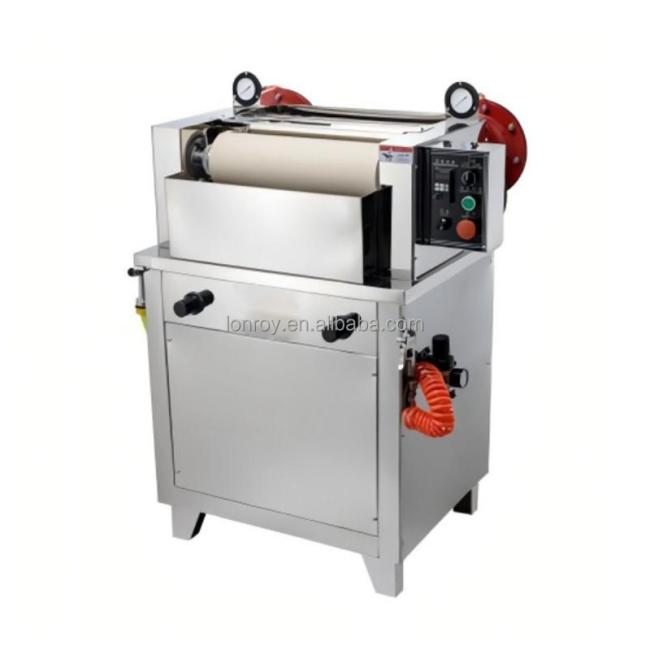

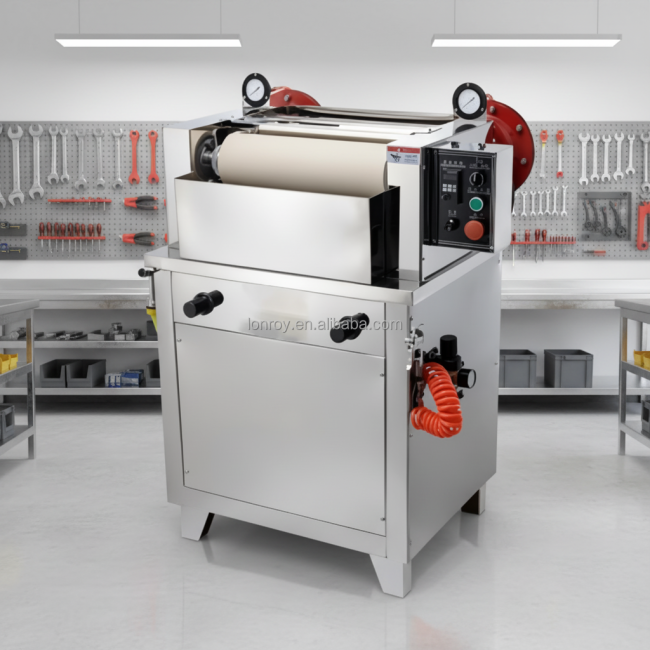

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Product Overview
This machine is suitable for small-batch, multi-variety fabric testing and sampling in textile laboratories. It is mainly used to test the padding rate of fabrics or to evaluate the dyeing, finishing effects, and quality of fabrics.

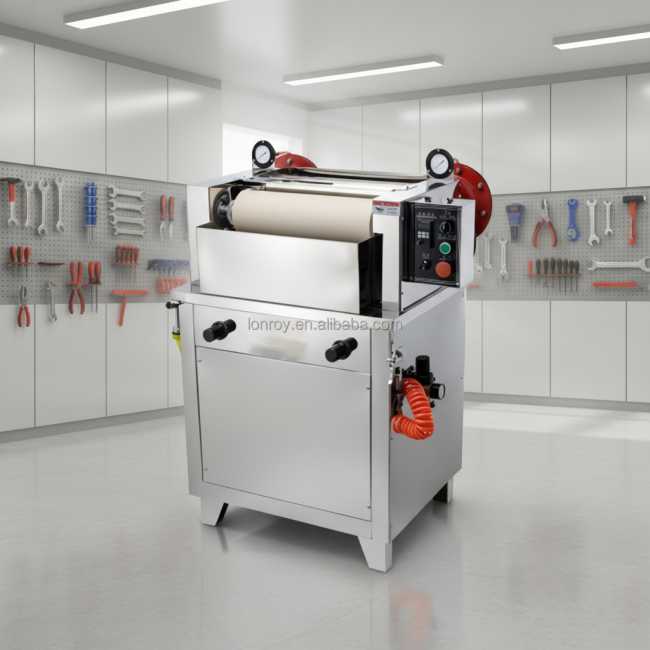

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Technical Specification
|
Material |
The entire machine is made of SUS304 stainless steel |
|
Roller Material |
Nitrile rubber |
|
Roller Hardness |
Shore 70 |
|
Roller Width |
420 mm |
|
Roller Diameter |
Φ130 mm |
|
Roller Pressure |
0.03~0.6 MPa (approximately 0.3 kg/cm²~6 kg/cm²) |
|
Working Speed |
Variable frequency speed control, 0~18 rpm |
|
Power Supply |
AC220V/50Hz |
|
Padding Rate |
25%~110%, selected according to process requirements |
|
Working State |
The rollers are driven by large-section diaphragm cylinders on both sides, powered by compressed air, and the pressure is controlled by a pressure regulating valve to meet production process requirements |
|
Safety Protection System |
Panel emergency stop switch, knee-operated emergency stop switch, providing comprehensive protection during use |
|
Dimensions |
850 mm × 680 mm × 1100 mm (Length × Width × Height) |
