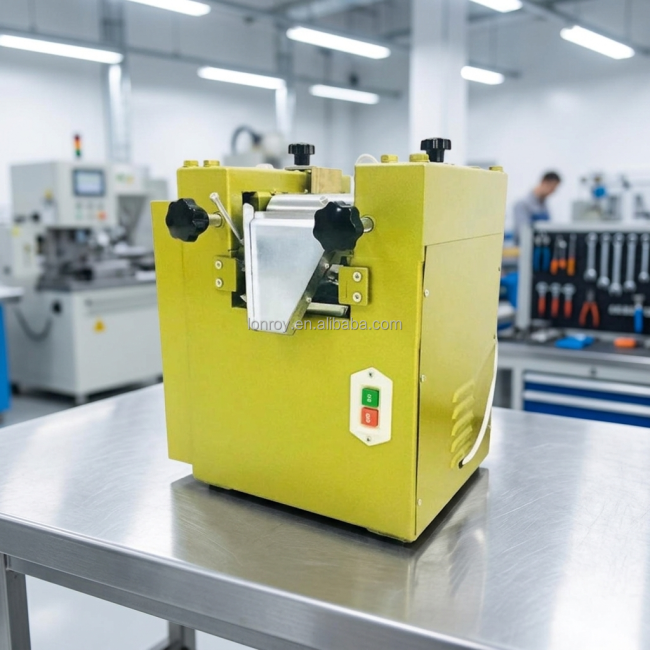

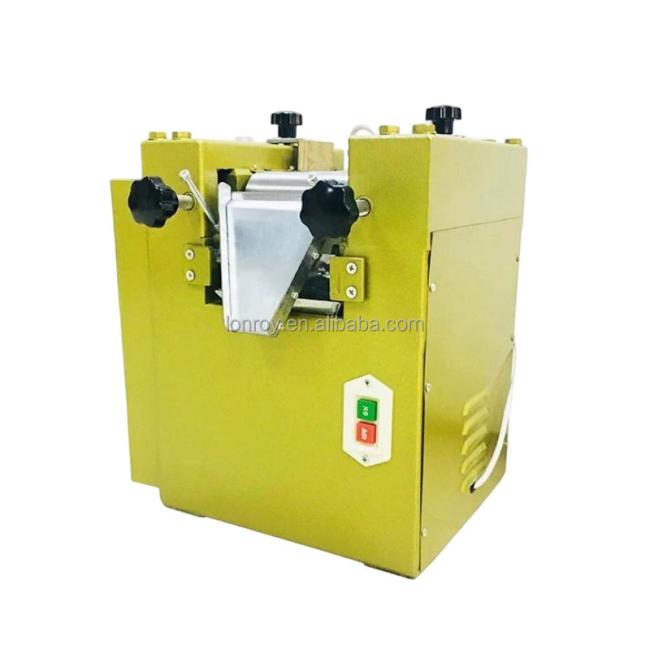

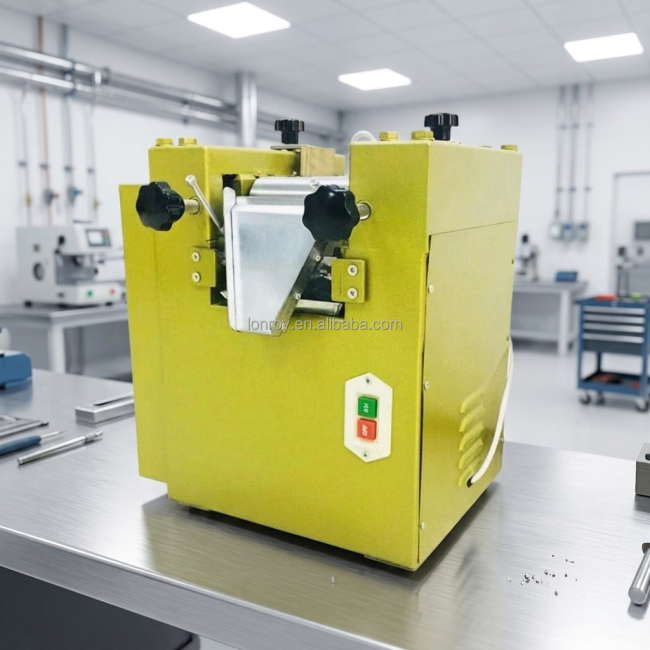

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner
Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner
Product Introduction
The three-roll grinding machine is mainly used for various paints, inks, pigments, plastics and other pastes. Especially for products with high viscosity and fine particle size requirements. This machine achieves the grinding effect through the mutual squeezing of the surfaces of the three horizontal rollers and the friction at different speeds.
Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner
Technical Specification
|
Model |
S65 |
S100 |
S150 |
S200 |
S260 |
S315 |
SM405 |
SM405 longer |
|||
|
Roller diameter |
mm |
Ø 65 |
Ø 100 |
Ø 150 |
Ø 200 |
Ø 260 |
Ø 315 |
Ø 405 |
Ø 405 |
||
|
Roller work length |
mm |
125 |
250 |
300 |
500 |
695 |
755 |
810 |
1000 |
||
|
Roller rotate speed |
Slow |
Rotate/minute |
32 |
28 |
28 |
19 |
19 |
19 |
15 |
15 |
|
|
Middle speed |
Rotate/minute |
89 |
72 |
66 |
55 |
55 |
55 |
45 |
45 |
||
|
Fast speed |
Rotate/minute |
250 |
185 |
152 |
155 |
155 |
155 |
135 |
135 |
||
|
motor power |
kw |
0.75 |
1.1 |
2.2 |
4 |
7.5 |
11 |
15 |
22 |
||
|
Granularity |
u.m |
3-18/3times |
|||||||||
|
Efficiency |
kg/h |
5 |
30 |
60 |
100 |
180 |
250 |
350 |
430 |
||
|
Outside size |
mm |
440×420×400 |
680×600×700 |
820×800×920 |
1180×1120×980 |
1650×1350×1100 |
1720×1550×1180 |
2100×1950×1350 |
2290×1950×1350 |
||
|
Weight |
kg |
60 |
240 |
400 |
560 |
1850 |
2300 |
5000 |
5000 |
||
