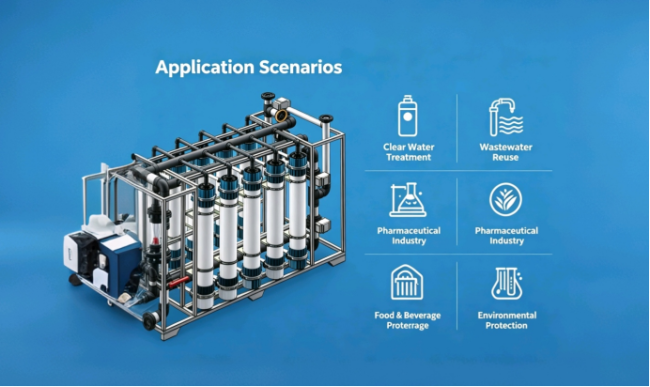

9-inch PVDF Integrated Ultrafiltration (UF) System

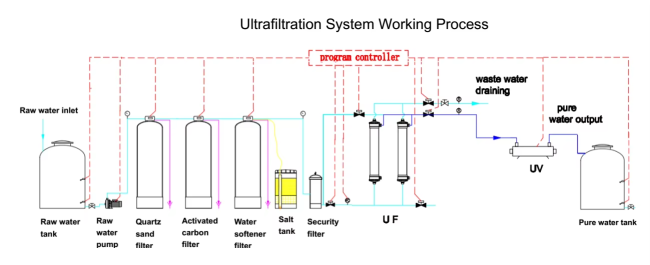

Raw Water → Raw Water Tank → Self-priming Pump → 5μm Cartridge Filter → Ultrafiltration (UF) System → UF Permeate Tank → RO/EDI System→ UV Sterilizer → Ozone Sterilizer → Finished Water Tank
Process Positioning
|
Parameter
|
Raw Water (Influent)
|
After UF Pretreatment (Target)
|
Key Function
|
|
Turbidity
|
0.5–100 NTU
|
≤0.1 NTU
|
Reduce physical fouling on RO membrane
|
|
SDI
|
3–20
|
≤1.0
|
Reduce RO pressure drop rate
|
|
DOC
|
1–20 mg/L
|
≤ 2 mg/L
(depending on downstream process)
|
Minimize organic fouling; reduce RO/EDI load
|
|
Microorganisms
|
10²–10⁶ CFU/mL
|
≤ 10 CFU/mL
|
Prevent biofouling on RO/EDI membranes
|
Why choose us?
Feature 1
The membrane elements are sourced from leading membrane manufacturers, ensuring high-quality components
Feature 2
High recovery rates and superior quality enable purification and high-fold concentration
Feature 3
The process involves no phase change, preventing damage to bioactive substances caused by high temperatures
Feature 4
Low energy consumption, short production cycles, and low operating costsWe have advanced technology, can provide lower prices, better product quality, higher performance, lower maintenance costs, and perfect after-sales serviceTell us the production capacity you want (500L/H, 1T/H, 2T/H...)?
What is your source water (tap water/underground water...)?
What is the product water used for (drinking/bottled water...)?
If you have the water report, please send it to us.
