100T/H Ultrapure Water System with UF+RO+EDI Process for Photovoltaic Solar Industry Featuring <1 ppb TOC and Carbon Steel Filter

Successful case Turkey photovoltaic plant 100m³/h ultra pure water system with UF+RO+EDI units

I. Overview
Ultra-pure water is the “invisible lifeblood” of efficient photovoltaic cell production, with applications spanning the entire process from silicon wafer cleaning to module encapsulation. The ultra-pure water systems we provide to our Turkish photovoltaic plant customers are highly efficient and energy-saving, serving as a key technological foundation for enhancing cell efficiency (>22%) and reducing the cost per kilowatt-hour.

II. Process  flow  of  Turkey  project
Raw water – Raw water tank – Raw water booster pump – Flocculant – Ultrafiltration – Scale inhibitor – Security filter – First-stage high-pressure pump – First-stage reverse osmosis – pH adjustment – Intermediate water tank – Second-stage high-pressure pump – Second-stage reverse osmosis – Purified water tank – EDI booster pump – UV sterilizer – Precision filter – EDI system – Ultra-pure water tank – Terminal delivery pump – TOC remover – Polishing device – Terminal filter – Water usage point

III.Parameters

IV. Application Advantages of Ultra-Pure Water Equipment
Economic Efficiency: EDI technology eliminates the need for acid-base regeneration, reducing operating costs by 30%. Concentrated water can be recycled to the front end of the RO system (recovery rate: 50–70%).
Stability: Fully automatic control ensures water quality fluctuations of ≤±0.1 MΩ·cm, avoiding production interruptions caused by mixed-bed regeneration
Environmental Friendliness: No waste acid or alkali emissions, compliant with EU environmental regulations (Turkey is currently aligning with EU standards)
Scalability: Modular design (e.g., 100 tons/hour system) flexibly adapts to production line expansion requirements

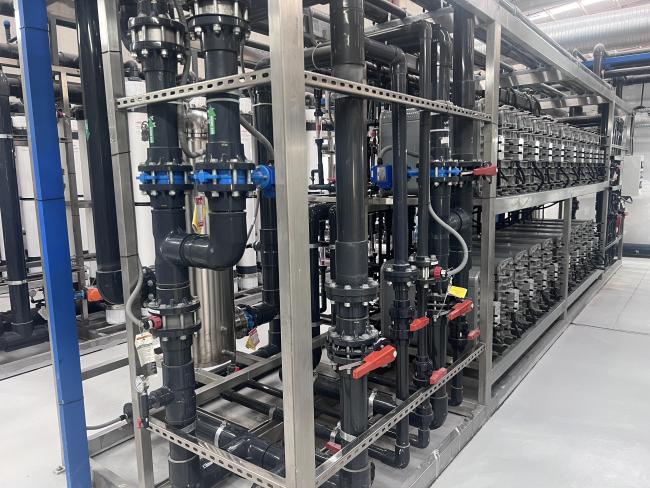

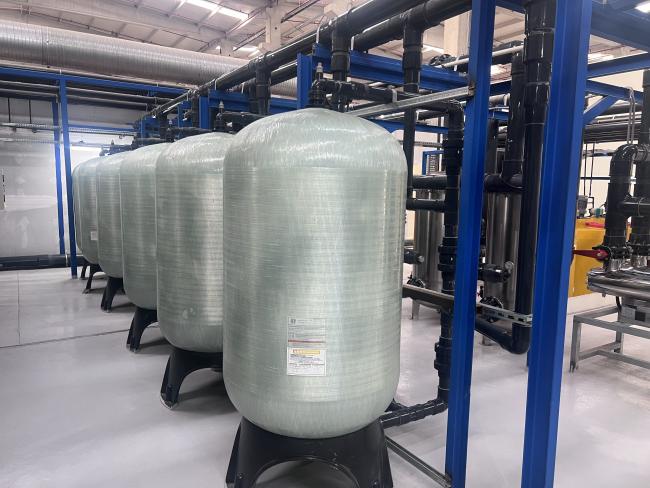

V:Photoes on site:

VI. Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
