3Kg Laboratory Freeze Dryer SUS304 Lab Scale Freeze Dryer AC220V
Price:
Available upon request
MOQ:
1 unit
Delivery Time:
5-20 working days
Brand:
Senova

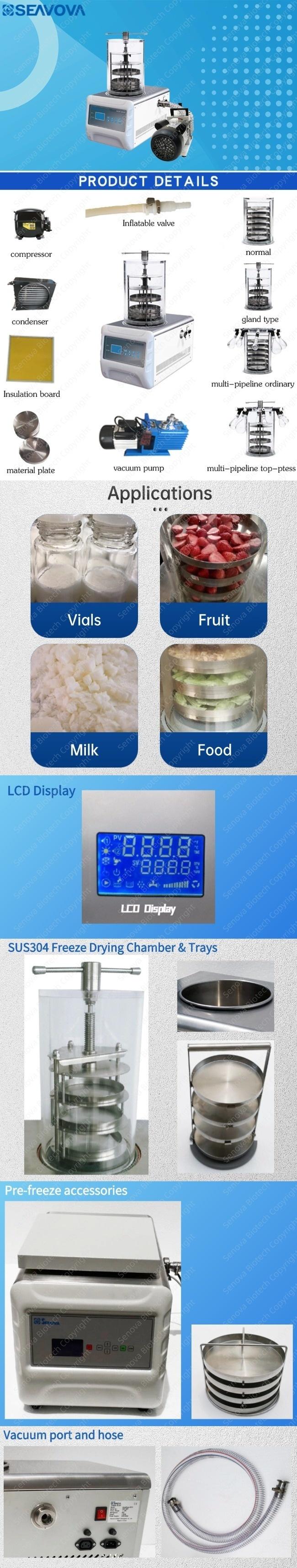

Product Description
Tabletop Freeze Dryer NovaDryer-B102 Top Press Gland Type
Key Features
- Clear LCD display for easy operation monitoring
- Complies with environmental protection standards
- Large cold trap openings without coil pipes for efficient pre-freezing
- Reliable refrigerant compressor with high water-capture capability and low noise operation
- Stainless steel chamber with powder coated steel housing
- Transparent clock-cover-type dry room for safety and visual observation
- Adjustable stainless steel sample holder with customizable shelf spacing
- Compact design for convenient operation in limited spaces
- Optional nitrogen valve available
- Power supply: 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Technical Specifications
| Temperature | <-50℃ |
| Vacuum | <10Pa |
| Freeze-dry Area | 0.07 m² |
| Water-Capture Capability | 3Kg/24h |
| Vial Quantity | ⌀16mm: 258PCS / ⌀22mm: 132PCS |
| Dimensions (D*W*H, mm) | 380*650*360+30(caster) |
| Power | 1100W |
| Power Supply | 110-220V/50-60Hz |
Includes pre-freeze rack (130mm high) with 27mm tray space.
Frequently Asked Questions
What is the HS code?
Typically 8419331000, 8419339090, or 8419399090. Confirm with your local customs.
How to get a quote and brochure?
Provide the model and quantity. You'll receive a detailed quote with specifications and brochure.
Compatible with 110V/60Hz or 220V/60Hz?
Yes. Supports 110V/60Hz and 200V-240V/50-60Hz. Specify your requirement when ordering.
Operating vacuum level?
15Pa (0.15 mbar).
English version available?
Yes.
Can the power plug be replaced?
Yes. We provide cords with various international plugs. Specify your standard.
Ready to use upon delivery?
Almost. Connect the pump, plug in, and power on. Use the touch screen to operate.
Difficult to install for first-time users?
No. We provide a manual, picture checklist, and a setup video for easy installation.
Can I get an oil-free vacuum pump?
Yes, as an optional upgrade for extra cost.
What is the packaging?
Strong plywood crate for safe international shipping.
Can it ship by air?
Yes, but extra inspections/fees apply for refrigerant. Sea freight is more cost-effective.
Can we check quality before shipment?
Yes. We provide photos and videos of your actual unit for approval before shipping.
Payment terms?
T/T (Bank Transfer).
Delivery time?
5-20 working days after payment, depending on order.
Company location? Can we visit?
Based in Shanghai with a factory nearby. Visits are welcome.
What certifications?
ISO 9001 and CE.
After-sales service?
Includes online support, video training, quick spare parts supply, and optional factory training.
Warranty?
12-month standard warranty (14 months for stock orders). Lifetime maintenance support.
About Freeze Drying Technology
Freeze-drying, or lyophilization, preserves perishable items by freezing and sublimating water through pressure reduction. This ancient practice dates back to 13th-century Andean Indians and was refined in the 1950s. Originally developed for blood plasma preservation during World War II, it later entered consumer food markets. Albert Altmann freeze-dried organ pieces in 1890, with 1920s patents including rabies virus freeze-drying. The 1950s saw camping food applications, and NASA adopted it for space food, notably freeze-dried ice cream on Apollo 7 and Gemini missions. Nestle's 1965 instant coffee made the technology mainstream. Early applications by Aztecs and Eskimos involved biological sample preservation. Contemporary freeze-drying freezes products in specialized chambers with heaters to form solid granules determined by chamber design.
Freeze Drying Advantages
- Foods last 7-8 times longer than fresh products
- Retains essential nutrients and vitamins
- Cost-effective preservation method
- Convenient storage and transportation
- Freeze-dried foods maintain high nutritional value
- Dairy products preserve beneficial probiotics
About Senova
Senova has been an innovative freeze dryer manufacturer for over 15 years, serving more than 80 countries with dependable performance and comprehensive support. The company is expanding its global presence with the launch of an EU office in 2024.
