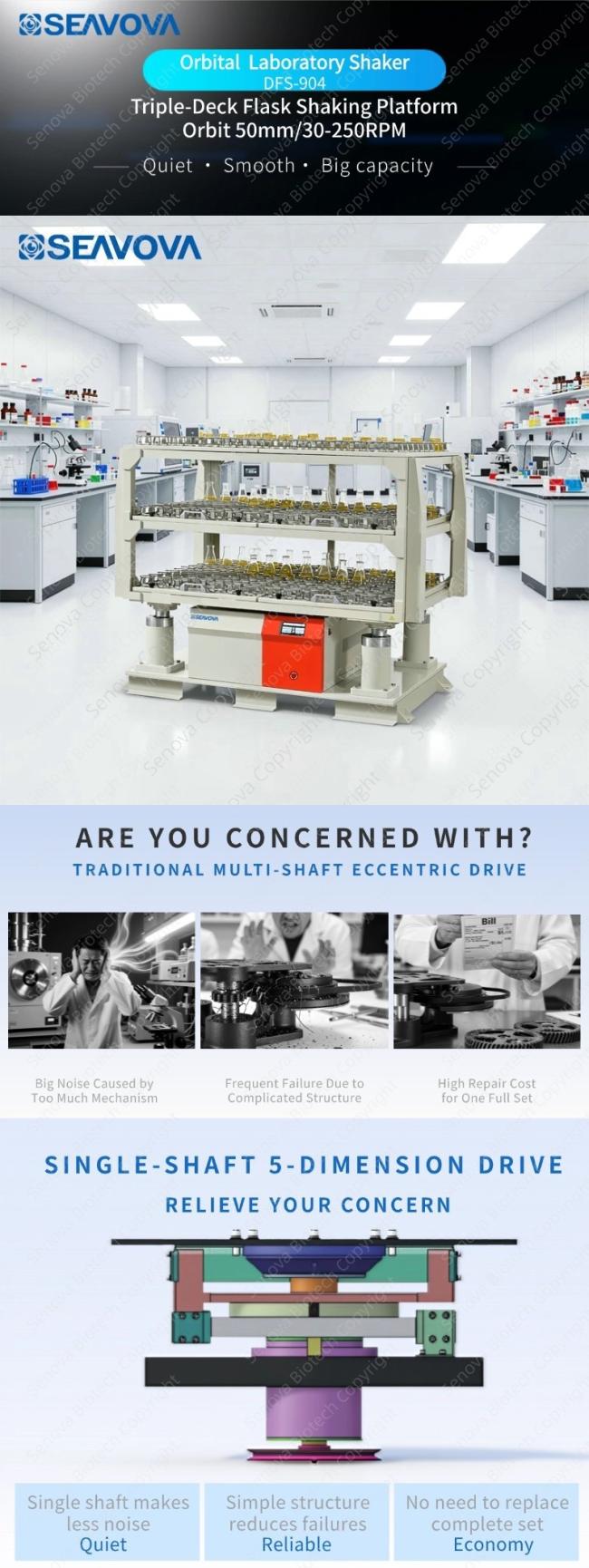

3 Deck Floor Laboratory Orbital Shaker Big Capacity 1000mlx168 / Model DFS-904
- Programmable P.I.D. control automates complex incubation sequences
- Industrial-grade steel construction ensures process reliability
- Interactive 7" touch screen centralizes all control parameters
- Precision servo motor technology provides reproducible shaking dynamics
- Multi-segment programming (30 steps) accommodates intricate protocols
- Self-regulating operation with automatic cycling and recovery features
- Memory function optimizes workflow by recalling previous parameters
- Continuous monitoring with dedicated safety alarms
- Equipment-isolating protection circuits prevent collateral damage
- High-performance alloy components resist wear and corrosion
- Premium bearing system minimizes vibration and noise
- Controlled acceleration prevents sample compromise during startup
- Fail-safe protection against thermal and control system failures
- Integrated emergency stop accessible during automated runs
- Scalable platform configurations (2-3 decks) match throughput needs
- Universal flask compatibility through adjustable clamps
- Digital data recording via optional USB connectivity
- Specialized rack options for automated sample handling
| Control | P.I.D. |
| Display | LCD |
| Program Control | 8 segments (user programmable) |
| Safety Protection | Automatic stop and start, timing, time display, power-off recovery, parameter memory |
| Auxiliary Function | Monitoring timer, Independent over-speed acoustic/visual alarm, independent current leakage and over-load protection |
| Convection Mode | Natural Convection |
| Shaking Mode | Orbital |
| Drive | Single-shaft drive |
| Working Environment | 15℃-35℃ |
| Timing Range | 0-999.59 hr/Continuous |
| Speed Range(rpm) | 30-250 |
| Speed Accuracy | ±1rpm |
| Orbit | Φ50mm |
| Capacity | 1000mlx168, 500mlx324,250mlx450 |
| Platform Size(mm) | 1080x680 |
| Platform Qty. | 6 |
| N.W./G.W. (Kg) | 740/800 |
| Overall Dimensions(LxWxH,mm) | 1590x1120x1310 |
| Packing List(LxWxH,cm) | 164x117x138 |
| Power | 250W |
| Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
| Construction | Powder Coated Steel Housing |
Laboratory shakers, ranging from space-saving benchtop units to high-capacity floor models, are engineered for consistent sample agitation. Their function is to mix, aerate, or suspend the contents of flasks, tubes, or plates through controlled mechanical motion. This action ensures the creation of homogeneous environments, which is a prerequisite for accuracy in applications like cell culture, protein studies, and diagnostic assay development.
The operational principle is based on imparting standardized kinetic energy to samples. This mechanizes a critical step that is difficult to control manually. The orbital shaker is the most common implementation. For protocols requiring environmental control, incubator shakers are employed. Modern versions are characterized by sophisticated user interfaces, often featuring color touchscreens, data logging capabilities, and programmable protocol sequences for complex, multi-day experiments.
Shakers are applied across diverse scientific activities. They are used for culturing insect cells for baculovirus expression systems. They assist in solubility and stability testing of new chemical entities. In clinical laboratories, they ensure consistent mixing of samples in blood culture bottles. Important design and performance features include a vibration-damped drive system for smooth operation, a range of available platform sizes and configurations, and safety interlocks to prevent operation when access doors are open.
