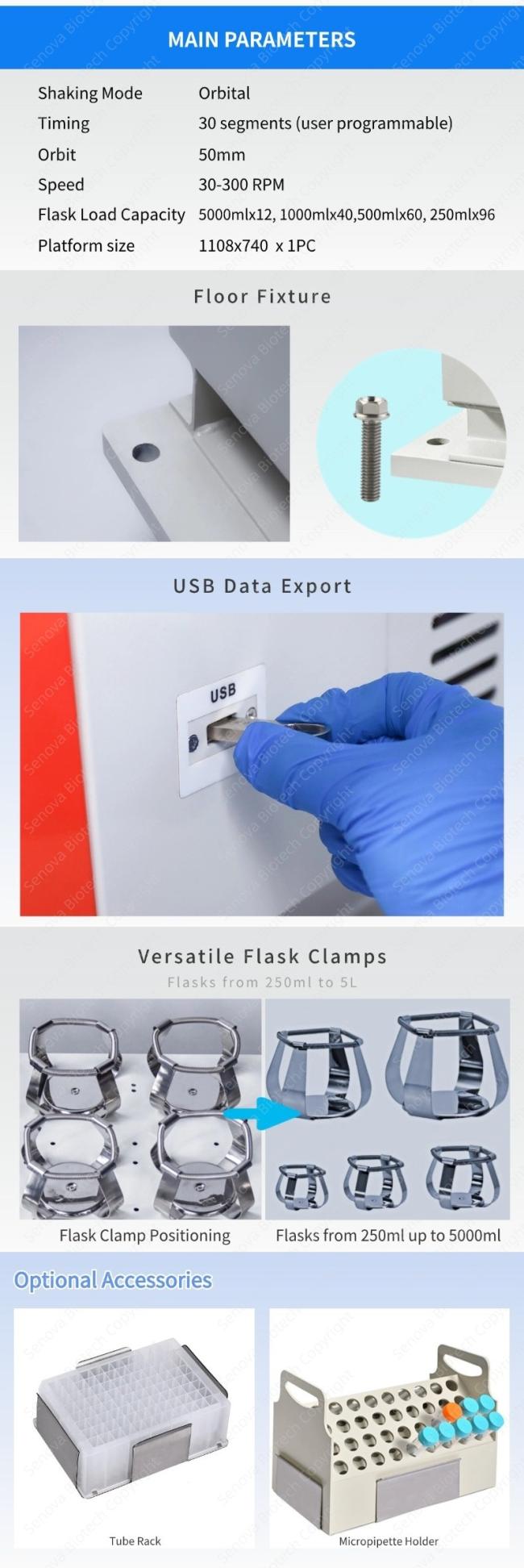

Big Capacity Single-deck Floor Orbital Laboratory Shaker SFS-704
- Microprocessor-based control system
- Study dual-material housing
- Interactive touch screen interface
- Extensive 30-segment programming
- Automatic process management
- Speed memory optimization
- Comprehensive alarm systems
- Advanced servo motor technology
- Premium component construction
- Gentle start-up mechanism
- System failure protection
- Emergency response controls
- Basic platform configuration
- Data export capabilities
- Specialized rack options
| Control | P.I.D. |
| Display | LCD |
| Program Control | 8 segments (user programmable) |
| Safety Protection | Automatic stop and start, timing, time display, power-off recovery, parameter memory |
| Auxiliary Function | Monitoring timer, Independent over-speed acoustic/visual alarm, independent current leakage and over-load protection |
| Convection Mode | Natural Convection |
| Shaking Mode | Orbital |
| Timing Range | 0-999.59 hr/Continuous |
| Drive | Single-shaft balance device/Linear(Reciprocating) |
| Working Environment | 15℃-35℃ |
| Speed Range(rpm) | 30-300 |
| Speed Accuracy | ±1rpm |
| Orbit | Φ50mm |
| Capacity | 5000mlx12, 1000mlx40,500mlx60, 250mlx96 |
| Platform Size(mm) | 1108x740 |
| Platform Qty. | 1 |
| N.W./G.W. (Kg) | 323/355 |
| Overall Dimensions(DxWxH,mm) | 1210x795x480 |
| Packing Size(LxWxH,cm) | 126x85x59 |
| Power | 120W |
| Power Supply | AC 200-240V/50-60Hz. Optional: AC110V/60Hz |
| Construction | Steel with powder coating |
As a key facilitator of homogeneous sample preparation, the laboratory shaker (in benchtop or floor-standing form) executes controlled agitation. It operates by moving a platform that holds sample containers in a repetitive, predefined manner. This mechanical action is designed to blend components into a uniform mixture, increase the surface area for gas transfer in liquid cultures, and prevent the sedimentation of solids. The reliability of this process makes the shaker an essential tool for generating valid data in research and testing laboratories.
The instrument’s value is rooted in its provision of standardized conditions. It replaces the inconsistency of manual shaking with precise, repeatable mechanical action. Primary categories include the ubiquitous orbital shaker, the gentle-motion rocker for blots or slides, and the versatile incubator shaker that combines agitation with environmental control. For modern labs, features like digital touchpad controls, programmable protocols, and quiet operation are not luxuries but necessities for efficiency and user comfort.
Specific uses highlight its versatility. It is employed in microbiology for cultivating bacteria in shaking flasks to improve aeration. In molecular biology, it is used for hybridization and washing steps in nucleic acid analysis. In pharmaceutical development, it aids in dissolution testing of tablet formulations. Important characteristics often include a broad speed range to accommodate everything from gentle rocking to vigorous vortexing, a durable drive system capable of 24/7 operation, and a compact footprint that maximizes valuable bench or floor space.
