Orbital Shaker Incubator CO2 0% To 20% Laboratory Incubator Shaker ST-211R

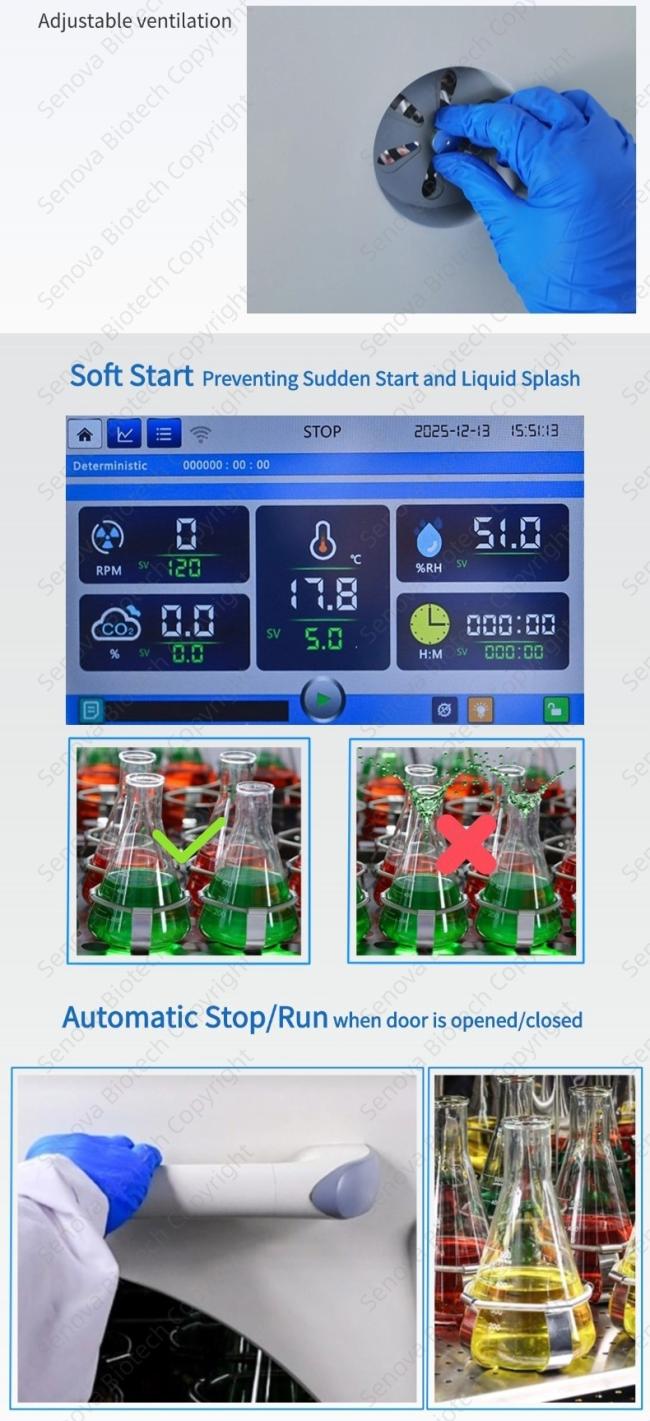

- 7” colour LCD with touch screen
- SUS304 chamber with round corners
- PID control, fast temperature rise, high control accuracy
- Refrigeration system with electronic expansion valve, low power consumption
- DC servo motor with control of positive and negative rotation
- Door temperature and CO2 concentration control
- 3-level access authority and history data log query
- Start timing and run timing
- Power-failure parameter memory and automatic start after power recovery with display of error messages

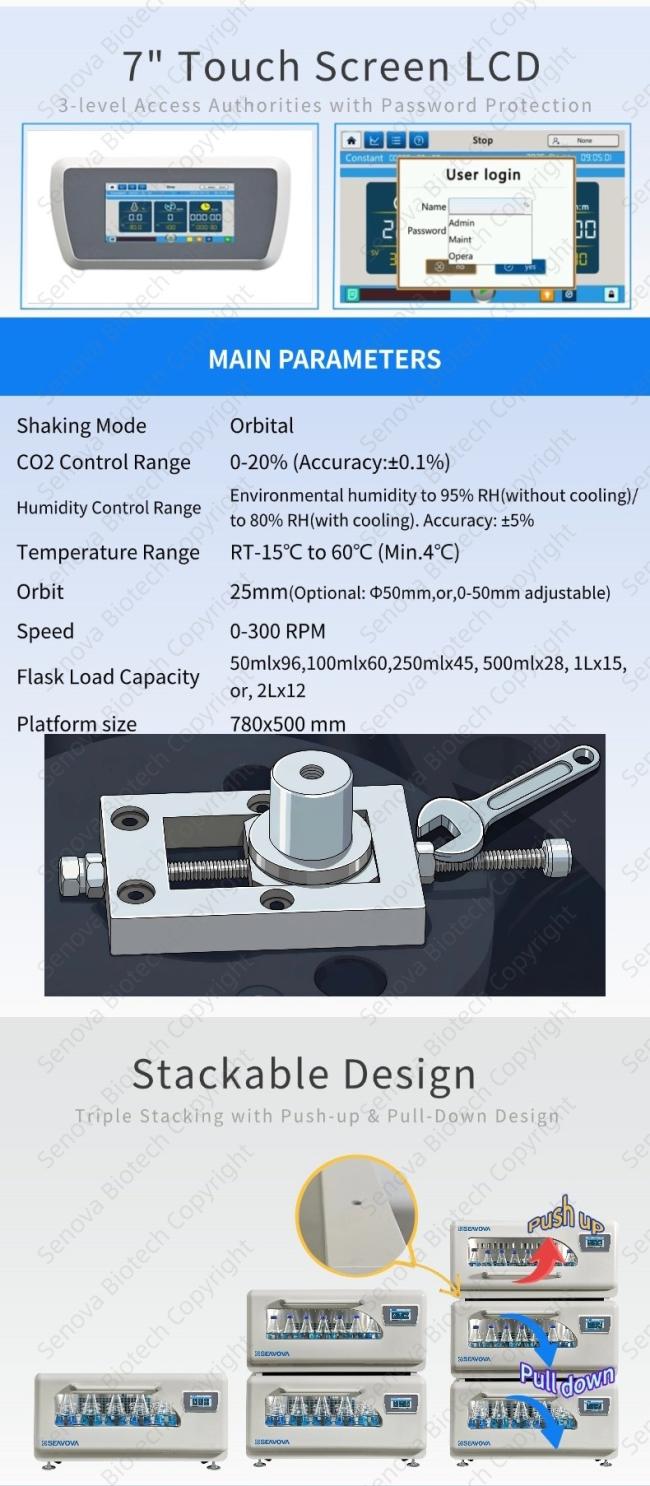

- Screen lock protection for unauthorized access 7”Color Touch Screen LCD
- Stackable design for max. 3 units

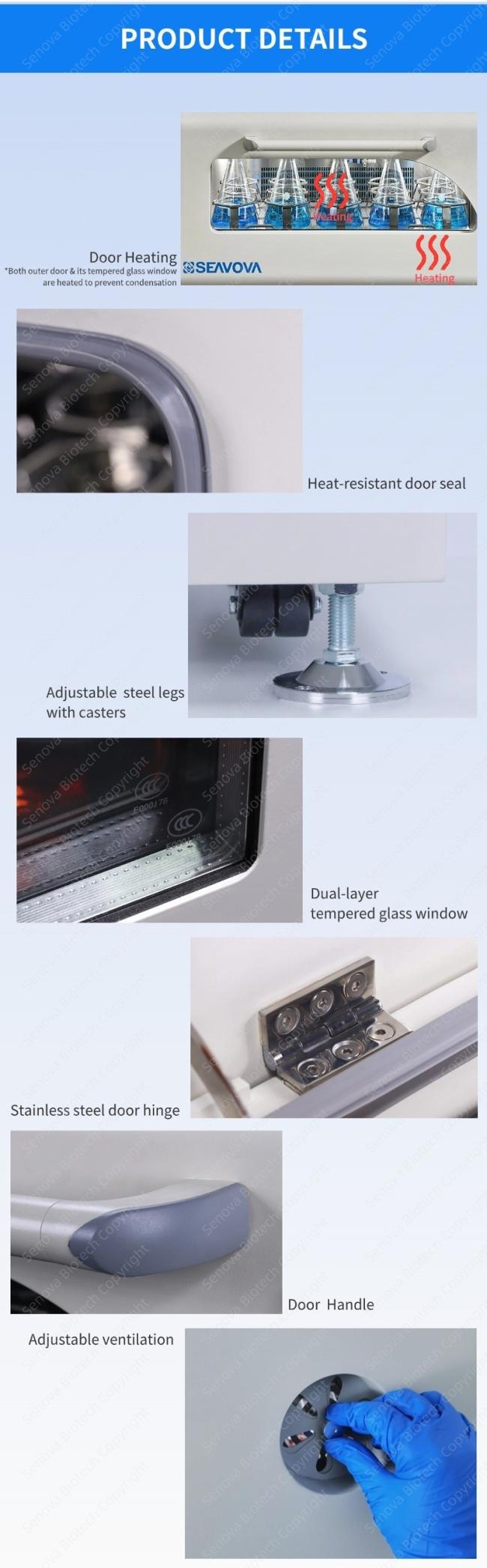

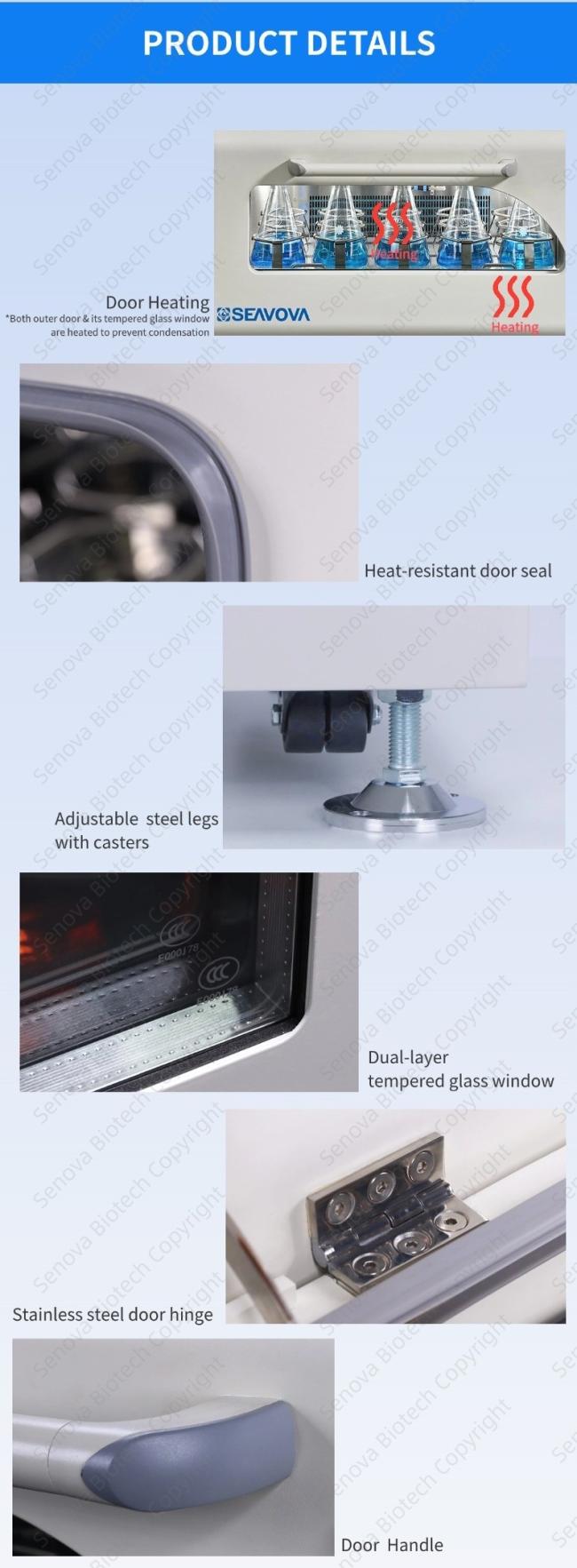

- Double-layer tempered safety glass door
- Inverter refrigeration system with R134a CFC-free refrigerant
- Real-time curve review and history data storage and export for 1 million records or up to 5 years
- Water-resistance chamber: Liquid in bottles accidentally broken during incubating process does not damage the incubator. The chamber can be cleaned with water, detergent or spirit, and sterilized with a sterilizer

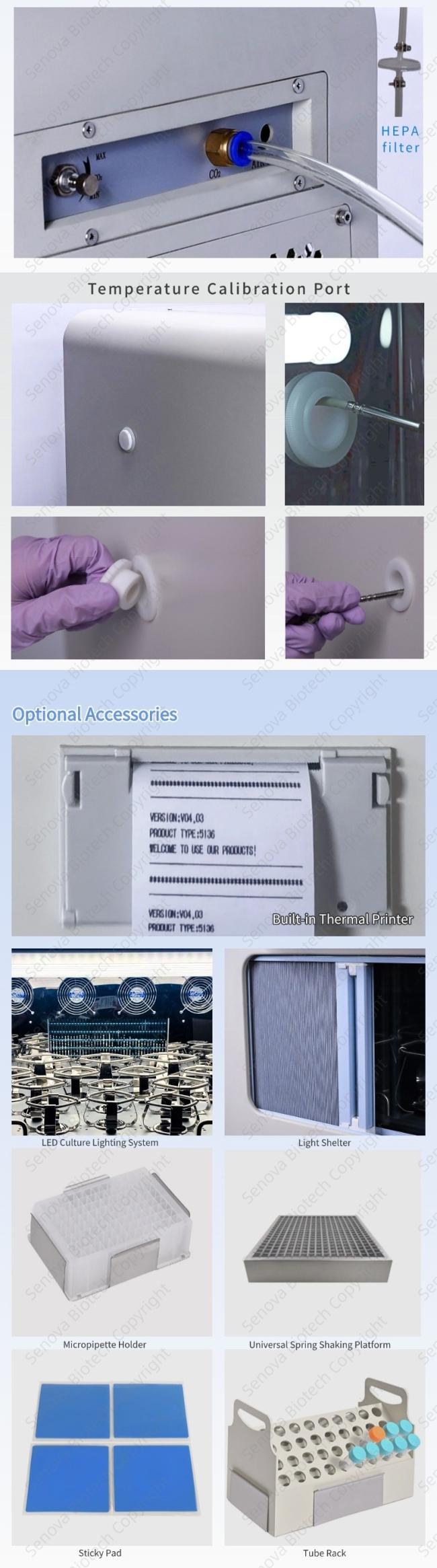

- Platform with pull-out platform rail system and various holders for flasks, tubes, deep-well microplates
| Control | PID |
| Display | 7”color LCD touch screen |
| Convection | Forced convection |
| Shaking | Orbital (Optional: Linear) |
| Drive | Single shaft balanced drive |
| Environment Temperature | 15℃-35℃ |
| Printer | Built-in micro thermal printer, USB data storage and export |
| Refrigeration | Air cooling, R134a,Power controllable refrigeration, frost free |
| CO2 Control Range (%) | 0-20 |
| CO2 Control Accuracy | 0.2(@CO2 concentration 5%) |
| CO2 Display Resolution(%) | 0.1 |
| CO2 Recovery Speed | 10min(@CO2 concentration 5%, door open 1minute) |

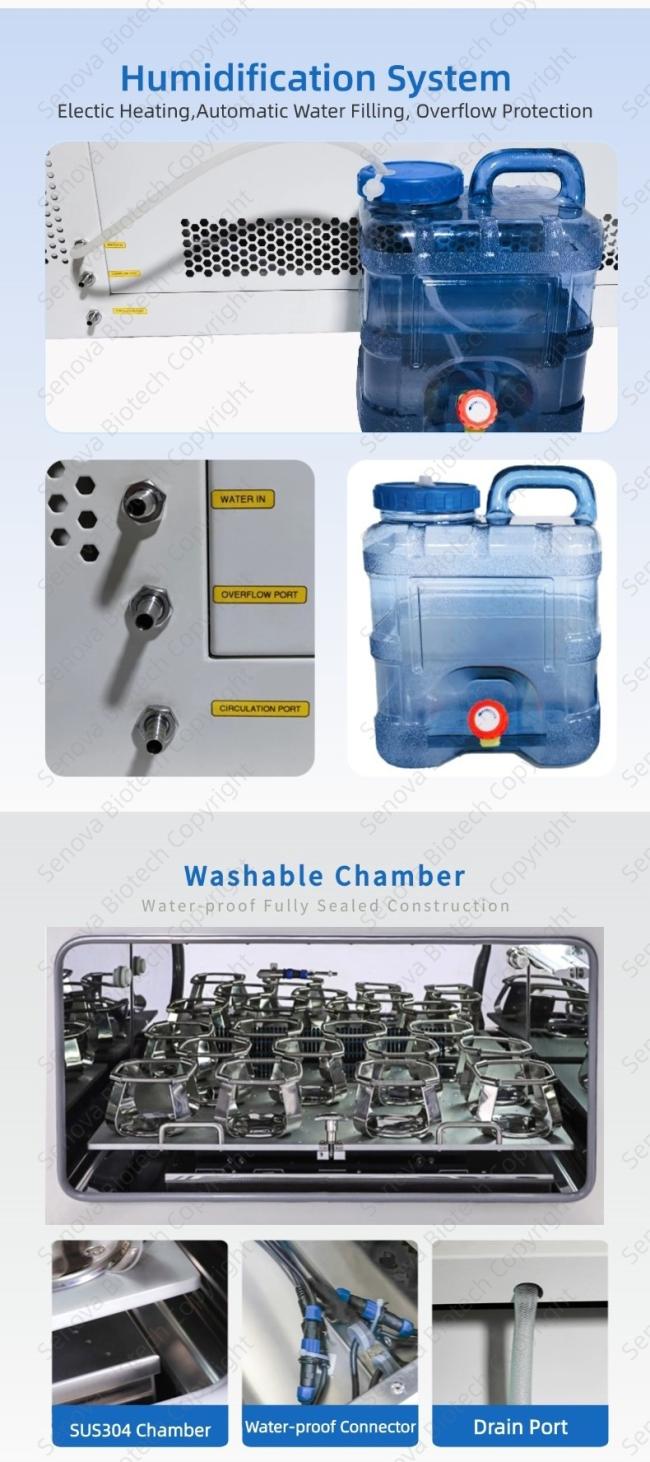

| External Humidifying System | Included |
| Humidity Control Range | Environmental humidity to 95% RH(without cooling)/to 80% RH(with cooling) |
| Humidity Control Accuracy | ±5% |
| Door-open Recovery Time | 15 min |
| Internal Water Tank Capacity | 138ml |
| External Water Tank(PC) | 1 |
| Temp. Control Range(℃) | RT-18℃ to 60℃ (Min.4℃) |
| Temp. Resolution(℃) | 0.1 |
| Temp. Fluctuation(℃) | ≤±0.2 |
| Temp. Uniformity(℃) | ≤±1(@37℃) |
| Speed (rpm) | 30-300 |
| Speed Accuracy(rpm) | ±1 |
| Orit(mm) | 25 |
| Timing Range(min) | 0-999.59 |
| Platform Size(mm) | 780*480 |
| Platform Qty. | 1 |
| Flask Capacity | 250mlx40, 500mlx28, 1000mlx15, or, 2000mlx12 (Alternatively) |
| N.W.(Kg)/G.W.(Kg) | 160/180 |
| Capacity(L) | 189 |
| Chamber Dimensions | 830x566x399(WxDxH,mm) |
| Overall Dimensions | 1200x797x640/Single unit( WxDxH,mm) |
| Packing Size | 125*85*72( LxWxH,cm) |

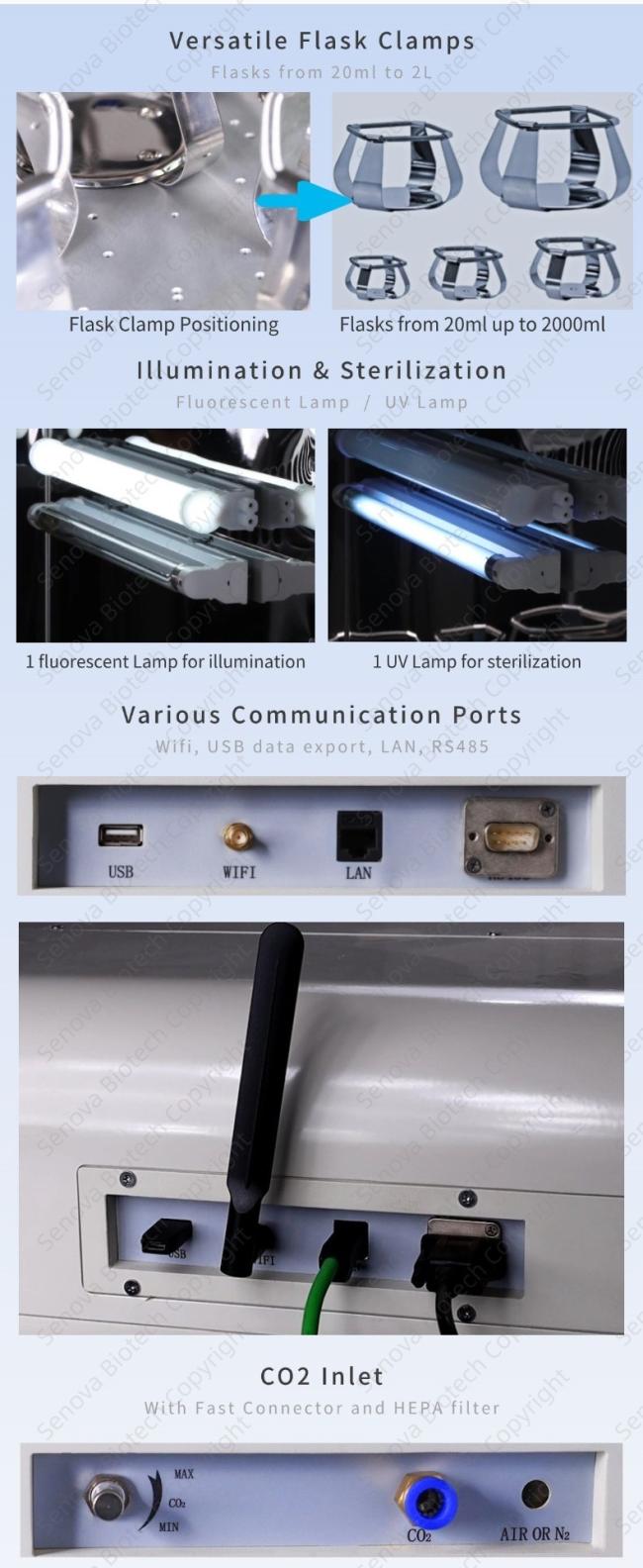

| Other | 1xFluoresent lamp +1x UV lamp |
| Power (W) | 980 |
| Input Power | AC 200∽240V/50∽60Hz |
The laboratory shaker is pivotal for uniform sample agitation, in benchtop/freestanding floor configs. It moves containers in defined pattern (orbital circle) ensuring mixing, aeration, homogeneous suspensions—essential for consistency in research/diagnostics.
Functionality: stable, repeatable mixing environment; mechanical vs manual. Standard orbital is versatile; incubating shakers for temp control; large floor shakers for industrial scale. Modern: digital precision for exact RPM, programmable run profiles.
Utilization: growing microbial cultures, increasing reaction kinetics in chemistry, ensuring even hybridization in molecular biology. Design: low-center-of-gravity base stability, range of platform sizes/clamps, compliance with safety/electrical standards.
