83 Liters Benchtop Incubator Shaker Laboratory Refrigerated Shaking Incubator BS-3032
- Efficient benchtop design saves valuable laboratory space.
- Smart P.I.D. controller learns and maintains setpoints.

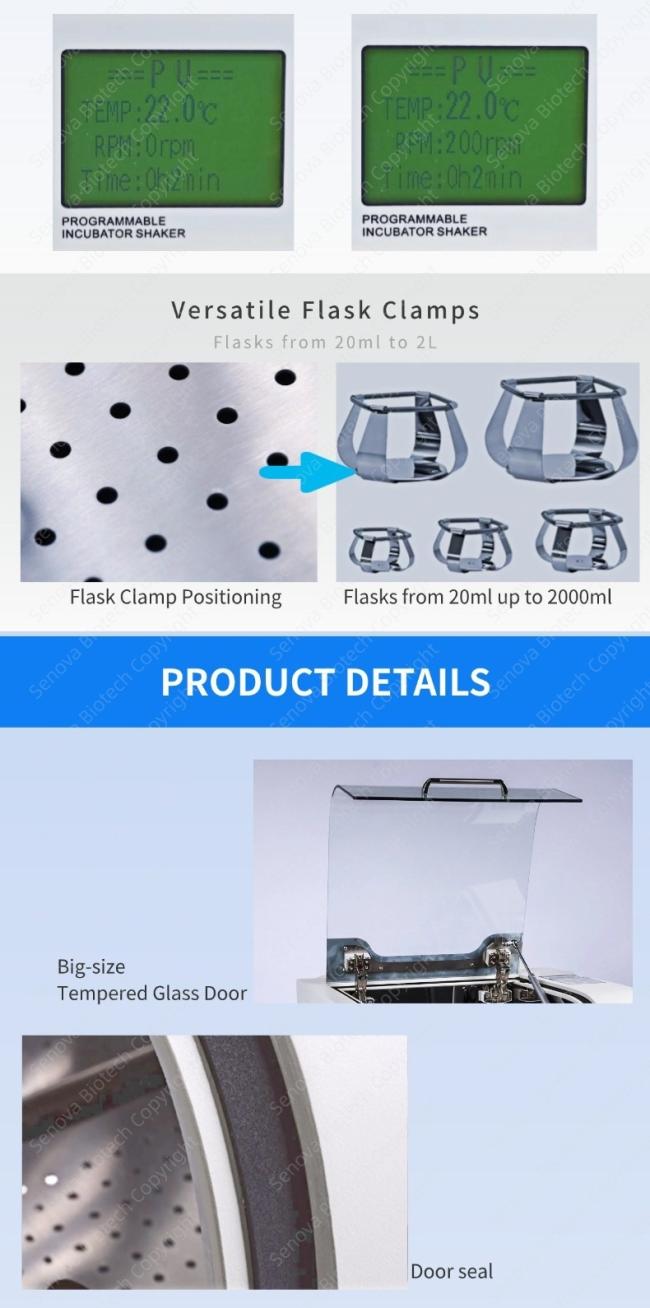

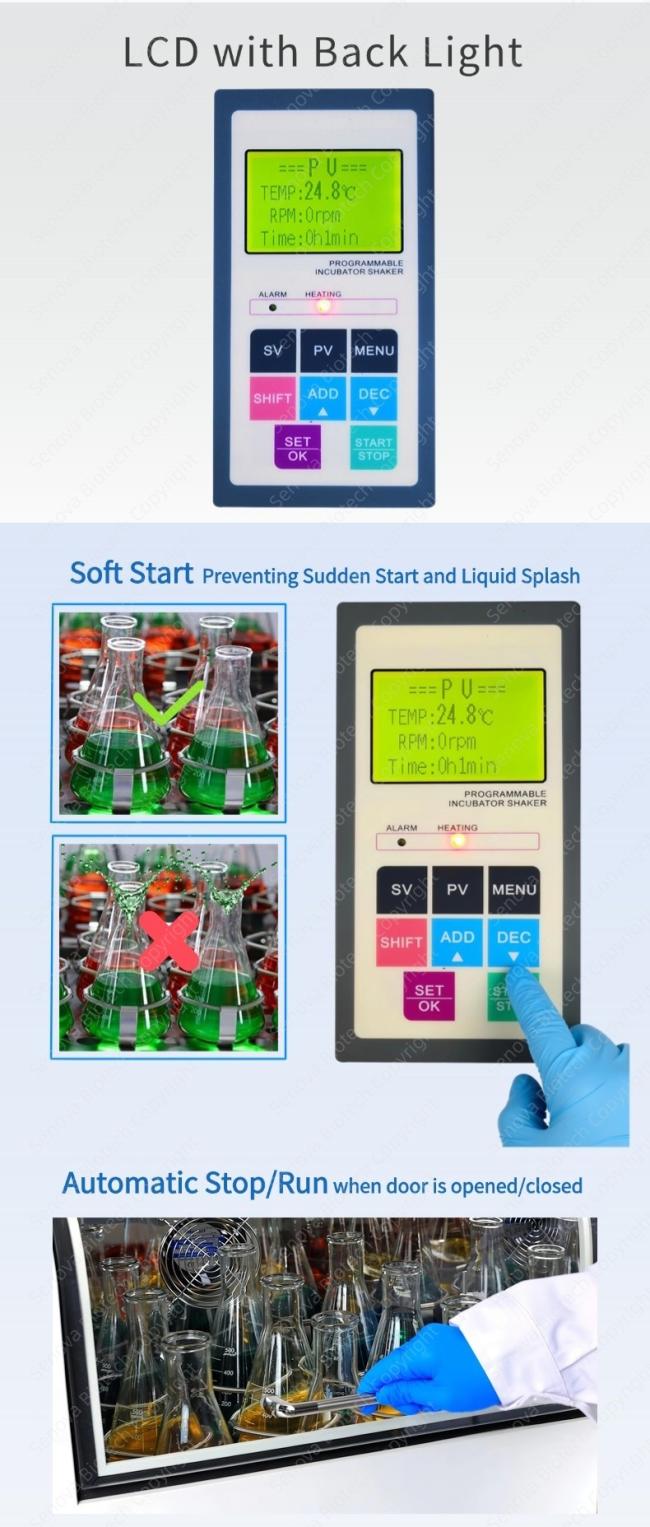

- User-friendly LCD interface simplifies setup and control.
- Transparent design allows visual confirmation of culture status.

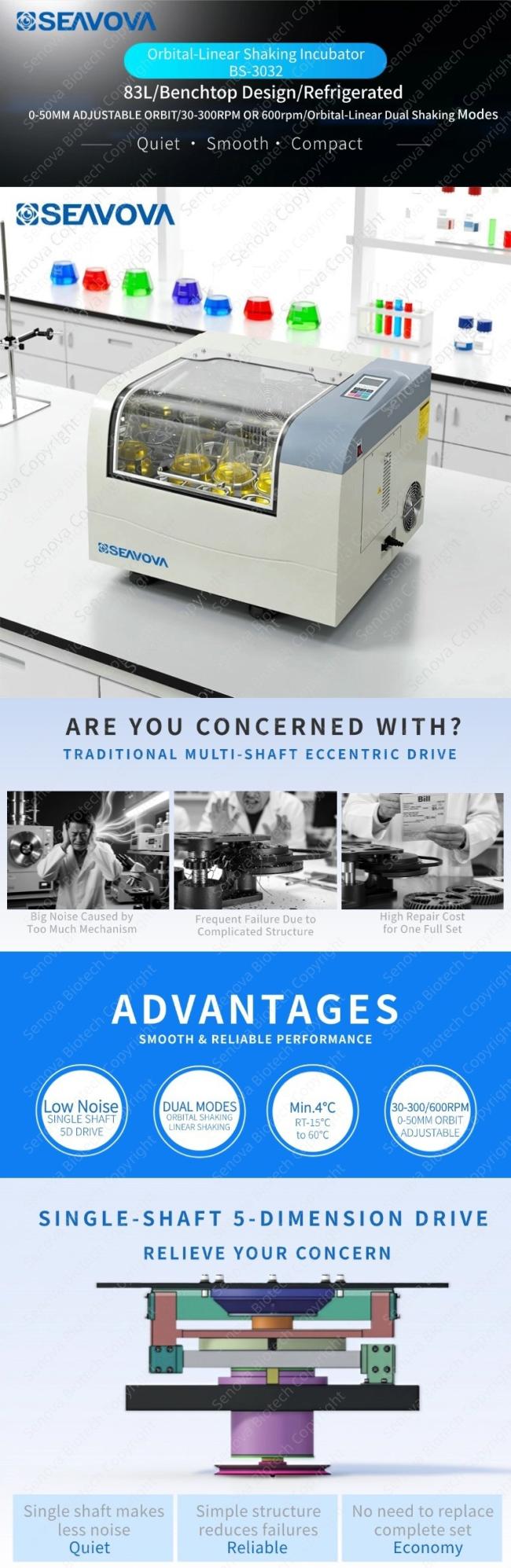

- High-efficiency drive system for quiet, vibration-free operation.

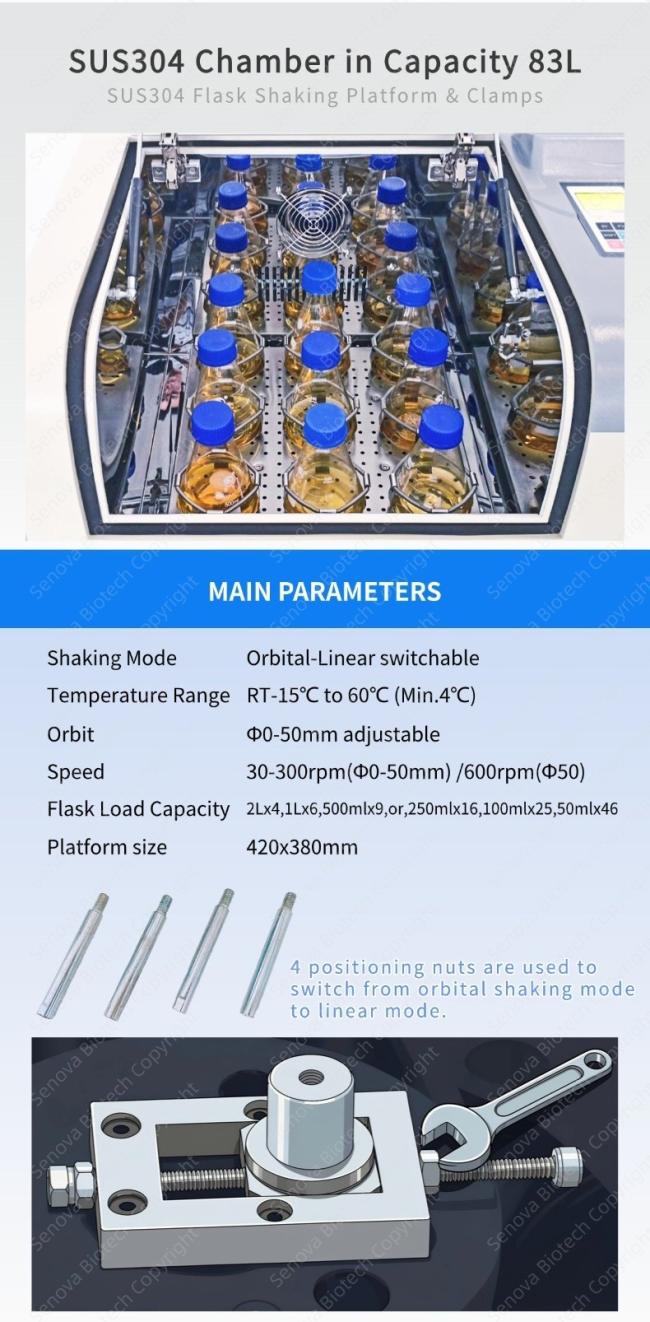

- Mode switching between orbital and linear agitation.
- Thermal flexibility with optional cooling module.
- High-throughput capability for increased productivity.
- Wide operational range to accommodate diverse protocols.
- Configurable alarm thresholds for personalized safety.
- Extensive 8-segment programming for automated experiment cycles.
- Green technology refrigerant with low global warming potential.

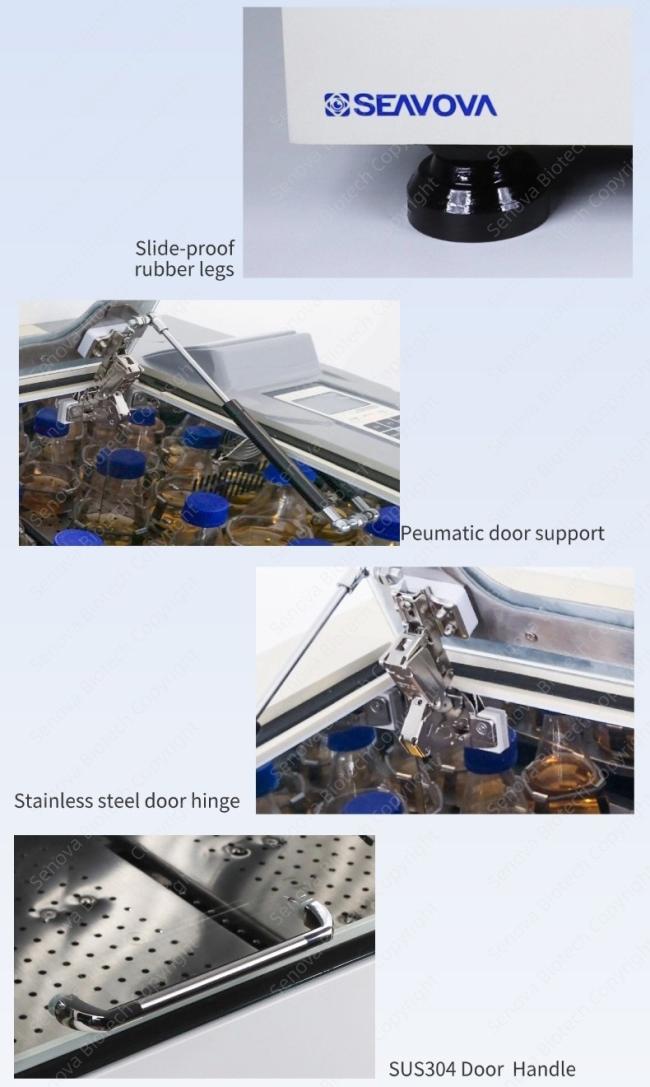

- Smooth, counterbalanced lid mechanism.
- "Set-and-forget" operation with memory and recovery features.
- High-torque motor maintains speed under full load.
- Intelligent ramp control for delicate cell cultures.
- Ready-to-use with included universal or flask-specific platform.

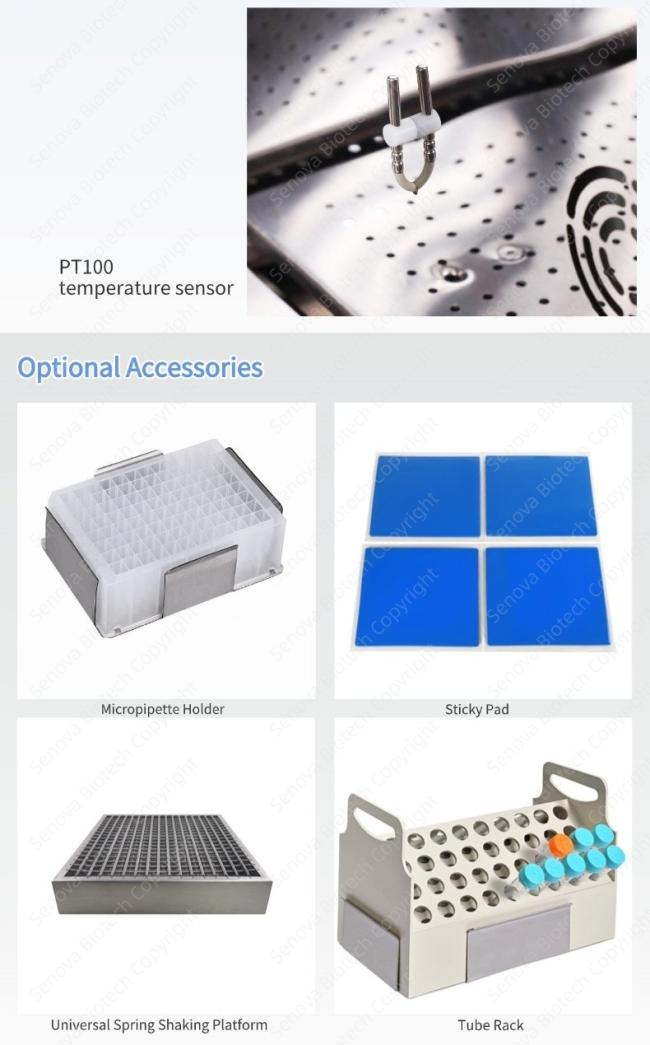

- Modular accessories system for custom lab setups.
- Onboard diagnostics and calibration for peak performance.
- Reduced downtime due to reliable, maintenance-free design.
| Control | P.I.D. |
| Display | LCD(Real-time display of working & set parameters) |
| Convection Mode | Forced Convection |
| Shaking Mode | Orbital |
| Drive | Single-shaft balance device |
| Working Environment | Temperature: 15℃-35℃.Humidyty 20%-90% |
| Temp. Range | 4℃-60℃ |
| Temp. Accuracy | 0.1℃ |
| Temp. Fluctuation | ±0.2℃ |
| Temp. Uniformity | ±1℃ (at 37℃) |
| Speed Range(rpm) | 30-300/600 |
| Speed Accuracy | ±1rpm |
| Orbit (mm) | Φ0-50 adjustable |
| Refrigerant | CFC-Free(134a) |
| Timing Range | 0-999.59 hr/Continuous |
| Flask Load Capacity | 2Lx4,1Lx6,500mlx9,or,250mlx16,100mlx25,50mlx46 |
| Platform Size(mm) | 420x380 |
| Platform Qty. | 1 PC |
| Capacity (L) | 83 |
| Net Weight (Kg) | 86kg |
| Gross Weight (Kg) | 120kg |
| Chamber Dimensions | 490x470x360(DxWxH,mm) |
| Lid-open Height | 990mm |
| Overall Dimensions | 778x685x600(DxWxH,mm) |
| Packing Size | 90x82x77(LxWxH,cm) |
| Power Supply | AC 200-240V/50-60HZ. Optional: AC110V/60Hz |
| Power | 560W |
| Chamber Material | Polished SUS304 Stainless Steel |
| Construction | ABS engineering plastic housing+steel base |

Acting as a vital tool for mixing and aeration, laboratory shakers (benchtop and floor models) provide consistent agitation to samples. They achieve this by moving a platform in a circular orbital or a linear reciprocating pattern. This motion ensures thorough blending of liquids, even distribution of cells or particles, and enhanced gas transfer—all fundamental requirements for successful experiments in cell biology, fermentation science, and analytical testing.
The core concept is the mechanization of agitation for reproducibility. By standardizing the motion, shakers eliminate a significant source of experimental error. The orbital shaker is the most versatile type. For applications needing climatic control, incubator shakers are essential. High-capacity floor shakers are built for scale. Contemporary models are defined by their smart features: digital PID temperature control for stability, programmable acceleration/deceleration ramps, and alarms to notify users of process completion or deviations.
Shakers find use in diverse procedures. They are crucial for monoclonal antibody production in hybridoma cell cultures. They are used in environmental chemistry for leaching tests. In pathology labs, they ensure consistent staining of tissue sections. Key design elements frequently include a brushed or brushless DC motor for efficient and quiet operation, a platform with non-slip matting or adjustable clamps, and a housing with filtered vents to protect internal components from dust.
