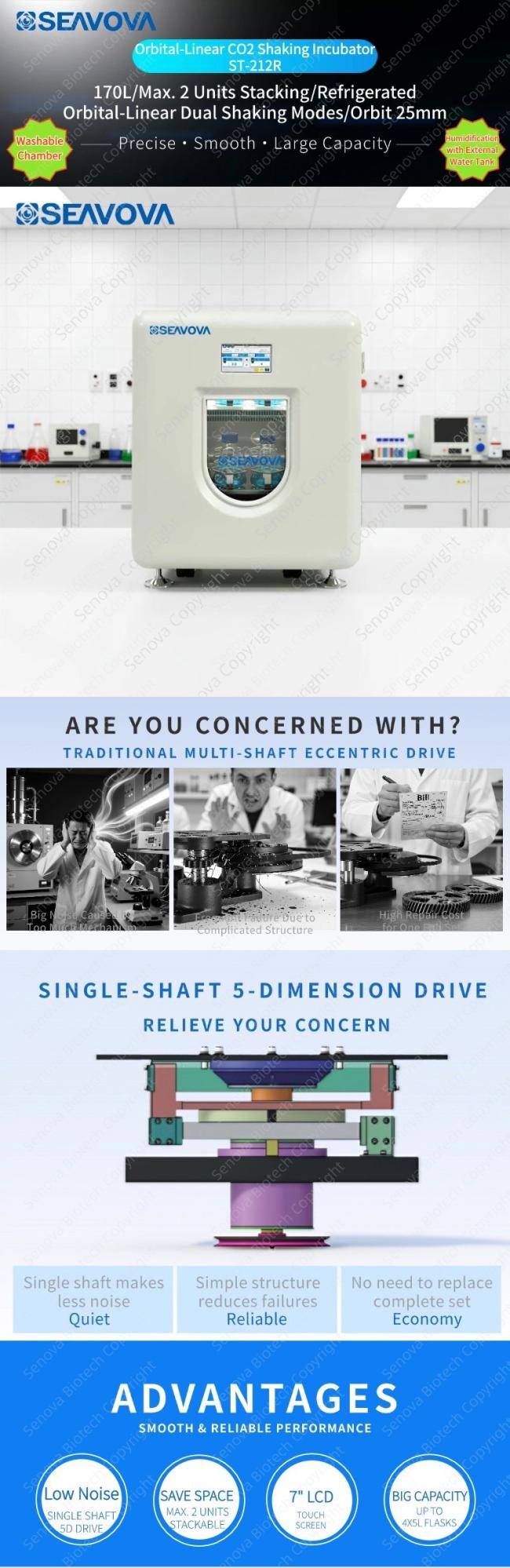

Senova Biotech CO2 Shaking Incubator 25mm Orbital Shaker For CO2 Incubator / Model ST-212R
- Modern Interface:7-inch color LCD touch screen control
- Premium Chamber:SUS304 stainless steel chamber with rounded corners for easy cleaning
- Precise Temperature Control:Programmable PID control system with fast heat-up and high accuracy
- Efficient Refrigeration:Electronic expansion valve refrigeration system with low energy consumption
- Advanced Motor System:DC servo motor with bidirectional rotation control
- Dual Parameter Management:Door temperature and CO₂ concentration integrated control
- Enhanced Security:Three-level access authority and historical data log review
- Dual Timing Function:Start timing and run timing capabilities
- Power Resilience:Power failure parameter memory with automatic restart after power recovery

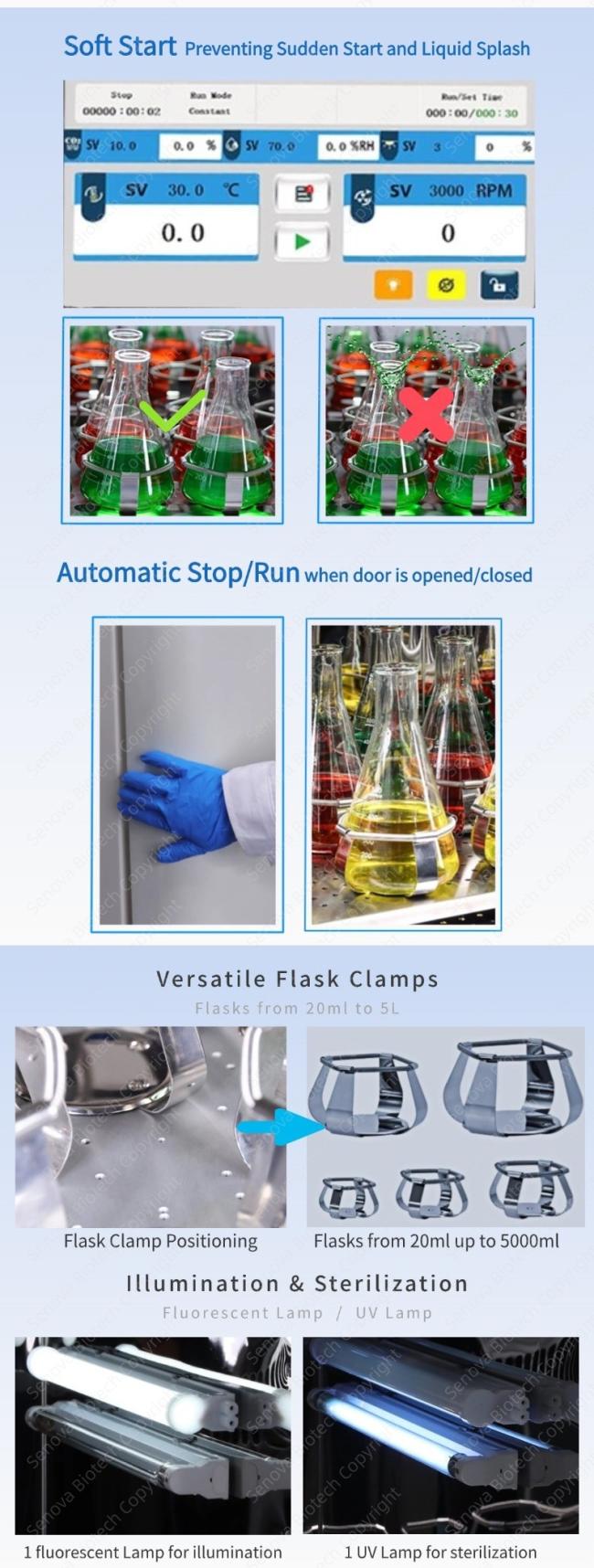

- Operational Safety:Screen lock protection against unauthorized access

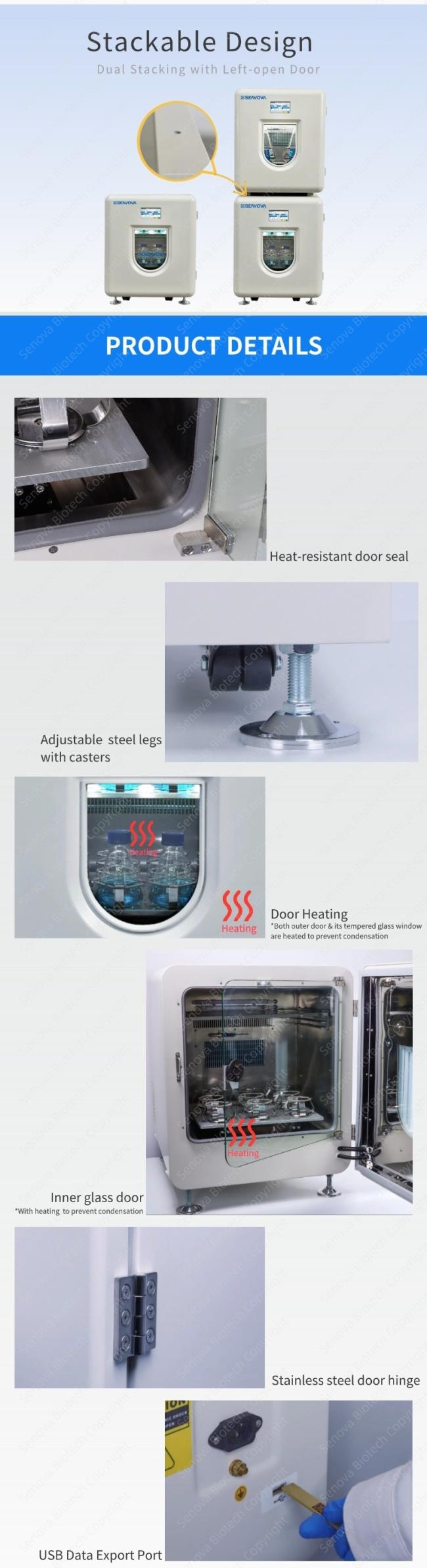

- Space Optimization:Stackable design supporting up to 2 units
- Enhanced Visibility:Double-layer tempered safety glass door (optional Light Shelter)
- Environmentally Friendly:Inverter refrigeration system using R134a CFC-free refrigerant
- Comprehensive Data Management:Real-time curve review and long-term data storage (1 million records / 5 years)

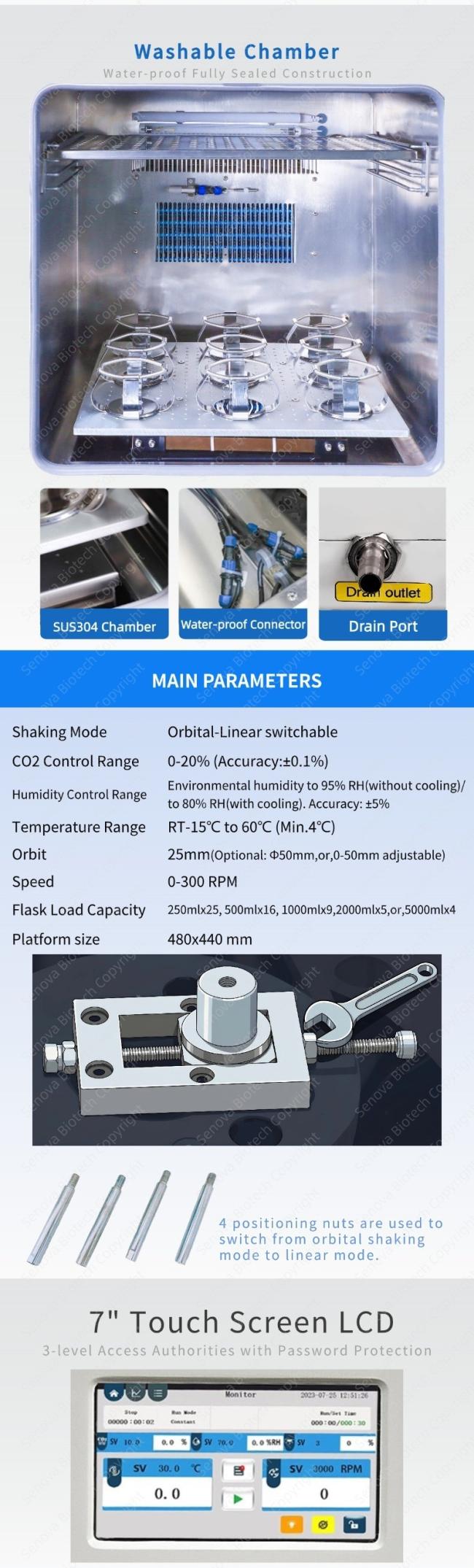

- Spill Protection:Water-resistant chamber with easy cleaning and sterilization capabilities
- Error Management:Clear error message display for quick troubleshooting
- Ideal for sensitive cell culture, tissue engineering, and stem cell research
- Precise environmental control ensures optimal growth conditions
- Enhanced data tracking supports research compliance and reproducibility
- Robust construction minimizes contamination risks
- User-friendly design simplifies daily operation and maintenance
- Flexible configuration adapts to evolving laboratory needs
| Control | PID |
| Display | 7"color LCD touch screen |
| Convection | Forced convection |
| Shaking | Orbital/Linear(Switchable) |
| Drive | Single shaft balanced drive |
| Environment Temperature | 15℃-35℃ |

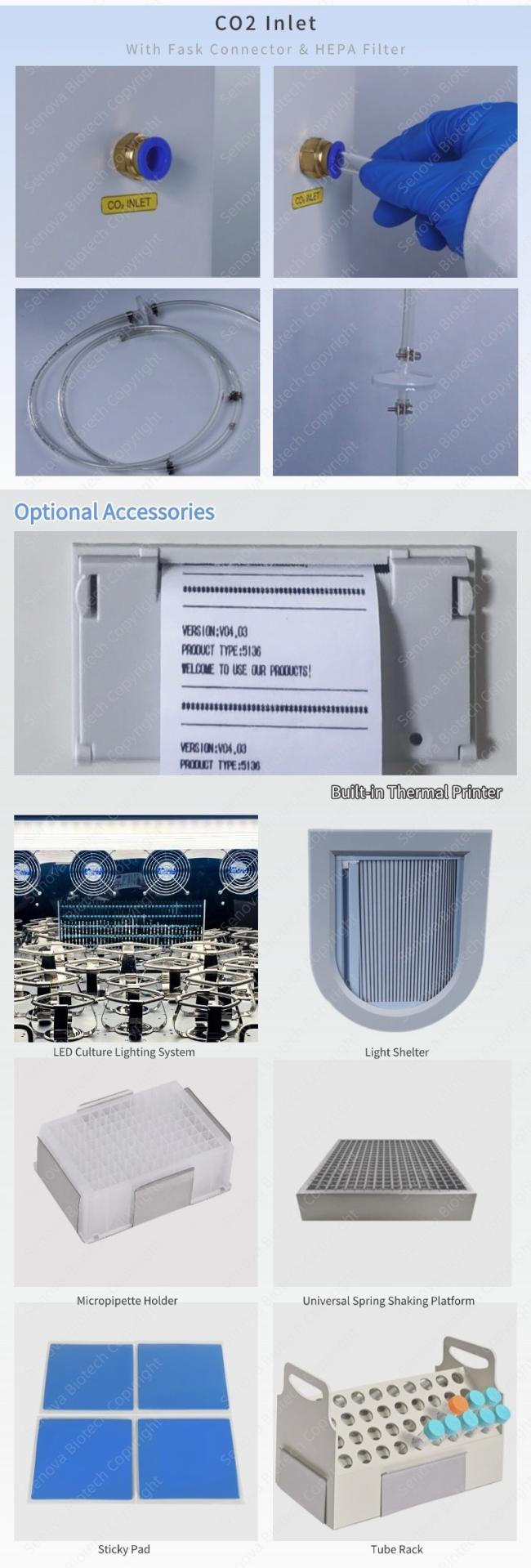

| Port | USB data export, CO2 inlet |
| Refrigeration | Air cooling, R134a,Power controllable refrigeration, frost free |
| CO2 Control Range (%) | 0-20 |
| CO2 Control Accuracy | 0.2(@CO2 concentration 5%) |
| CO2 Display Resolution(%) | 0.1 |
| CO2 Recovery Speed | 10min(@CO2 concentration 5%, door open 1minute) |

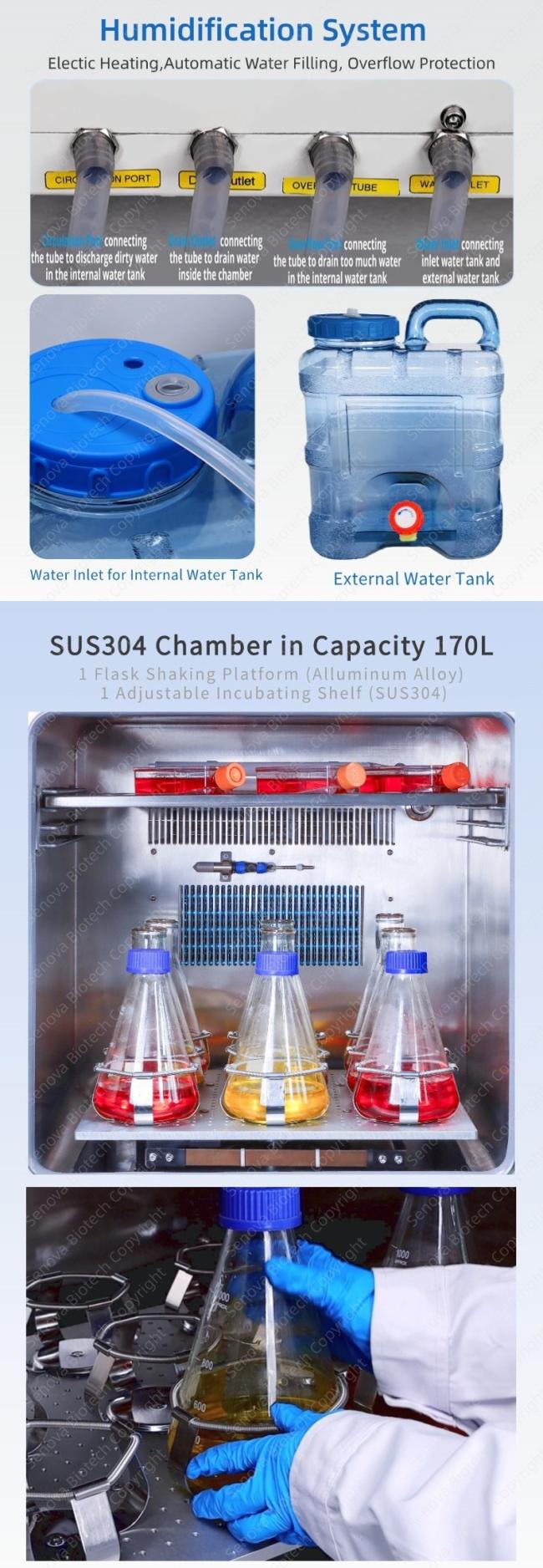

| External Humidifying System | Included |
| Humidity Control Range | Environmental humidity to 95% RH(without cooling)/to 80% RH(with cooling) |
| Humidity Control Accuracy | ±5% |
| Door-open Recovery Time | 15 min |
| Internal Water Tank Capacity | 138ml |
| External Water Tank(PC) | 1 |
| Temp. Control Range(℃) | RT-18℃ to 60℃ (Min.4℃) |
| Temp. Resolution(℃) | 0.1 |
| Temp. Fluctuation(℃) | ≤±0.2 |
| Temp. Uniformity(℃) | ≤±1(@37℃) |
| Speed (rpm) | 30-300 |
| Speed Accuracy(rpm) | ±1 |
| Orit(mm) | 25 |
| Timing Range(min) | 0-999.59 |
| Platform Size(mm) | 780*480 |
| Platform Qty. | 1 |
| Flask Capacity | 250mlx40, 500mlx28, 1000mlx15, or, 2000mlx12 (Alternatively) |
| N.W.(Kg)/G.W.(Kg) | 160/180 |
| Capacity(L) | 189 |
| Chamber Dimensions | 830x566x399(WxDxH,mm) |
| Overall Dimensions | 1200x797x640/Single unit( WxDxH,mm) |
| Packing Size | 125*85*72( LxWxH,cm) |
| Other | 1xFluoresent lamp +1x UV lamp |
| Power (W) | 980 |
| Input Power | AC 200∽240V/50∽60Hz |
Central to sample processing, the laboratory shaker provides automated agitation. As benchtop/floor models, it imparts motion (typically orbital) to flasks/tubes/plates, homogenizing mixtures, enhancing oxygenation, preventing sedimentation—cornerstone of reliable methodology.
Principle: controlled kinetic energy for fluid mixing; standardizes agitation, eliminating variable. Models: general orbital, gentle rockers, incubator shakers for temp-critical apps. Advancements: color touchscreens, USB data export for control/documentation.
Applications: culturing suspension mammalian cells, solvent extraction in natural product isolation, staining/destaining gels. Attributes: powerful motor for consistent speed, vibration-minimizing platform, safety auto shut-off on lid open.
