Refrigerated Orbital Laboratory Incubator Shaker ST-217R
Refrigerated Orbital Shaking Incubator /Laboratory Incubator Shaker ST-217R
Main Features
- Advanced Control System: P.I.D. controller with 7" touch screen LCD interface

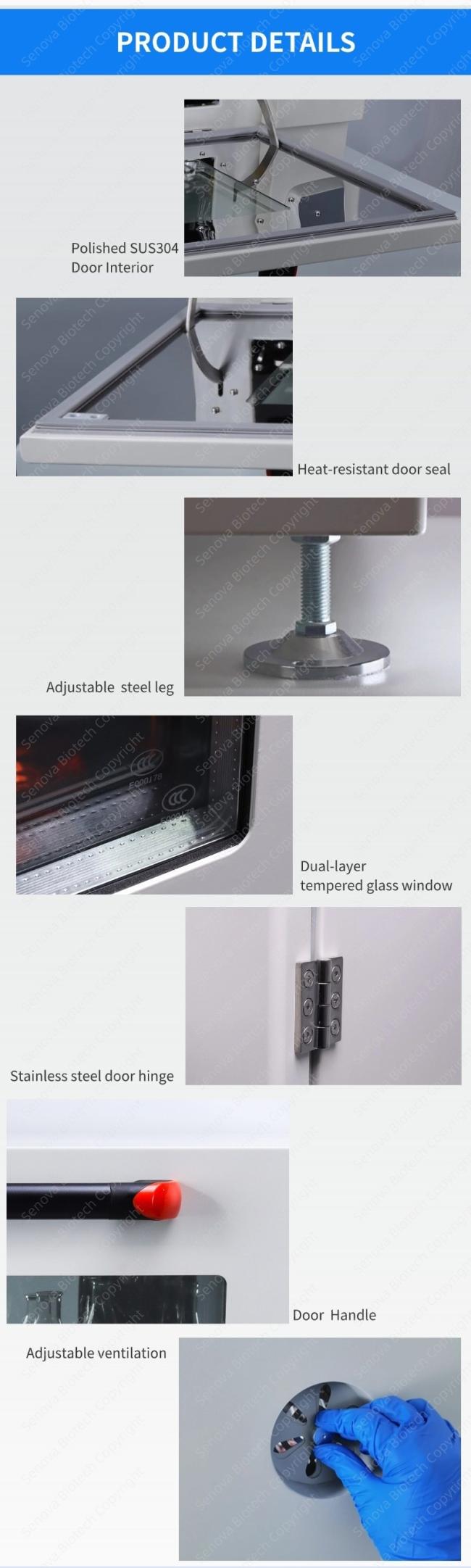

- Durable Construction: Powder-coated steel exterior with SUS304 internal components
- Optimal Visibility: Large tempered glass viewing window with fluorescent and UV lighting
- Robust Motion System: Single-shaft 5-dimensions orbital shaking technology

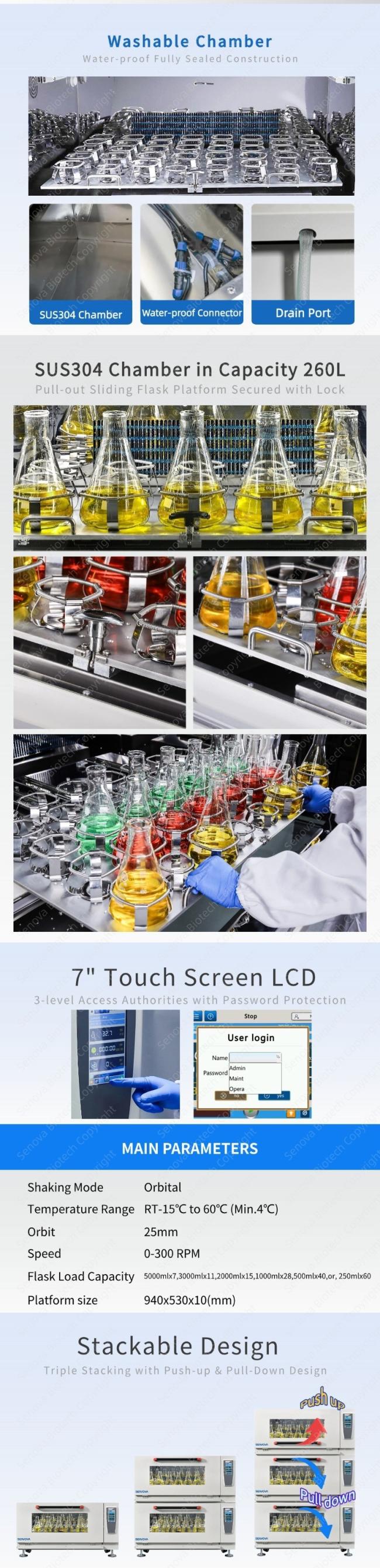

- Easy Maintenance: Water-resistant, washable SUS304 chamber with rounded corners
- Space Efficient: Stackable floor-standing design (max. 3 units)
- Precise Temperature Control: Heating and frostless refrigeration system (RT+4℃ to 60℃)
- Environmental Responsibility: R134a CFC-free refrigerant
- Comprehensive Safety: Multi-layer protection system with alarms and automatic safeguards
- Smart Programming: 5 groups/30-segment curve programming capability
- Enhanced Humidity Control: Integrated active humidifying system (room humidity to 95%RH)

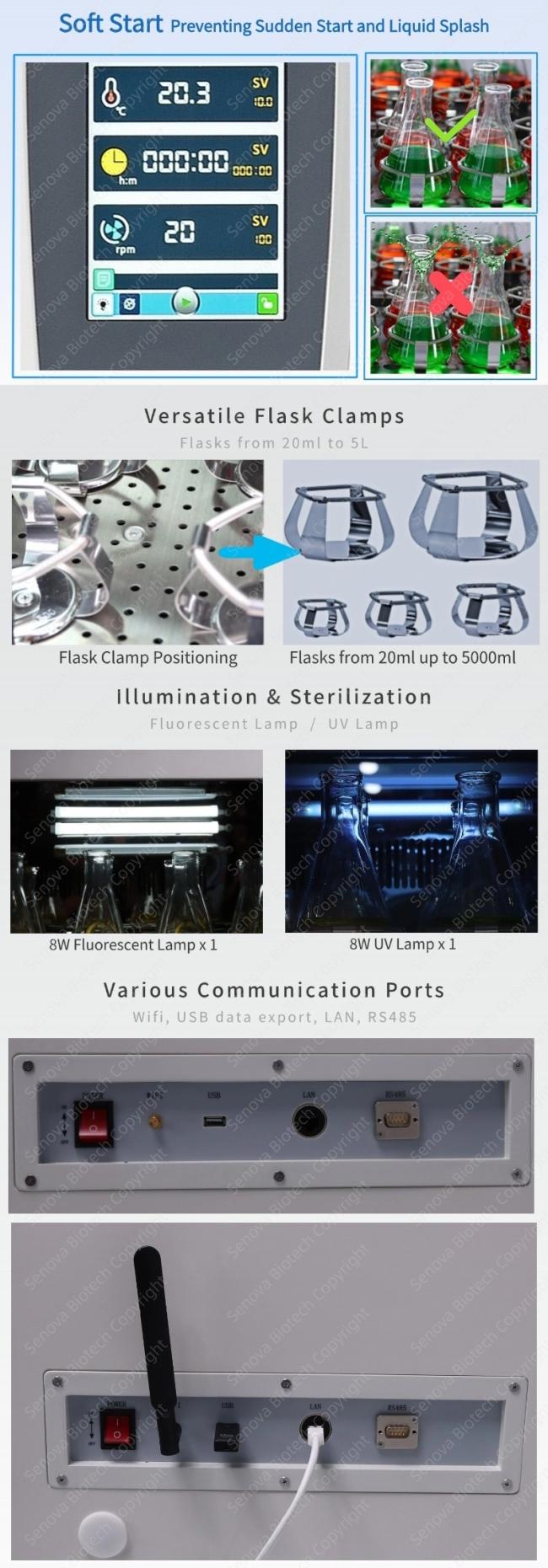

- Sample Protection: Soft start circuit prevents liquid splash and sudden movement
- Data Management: USB export and RS485 connectivity with optional thermal printer
- User Convenience: Automatic door sensing, power failure recovery, and parameter memory

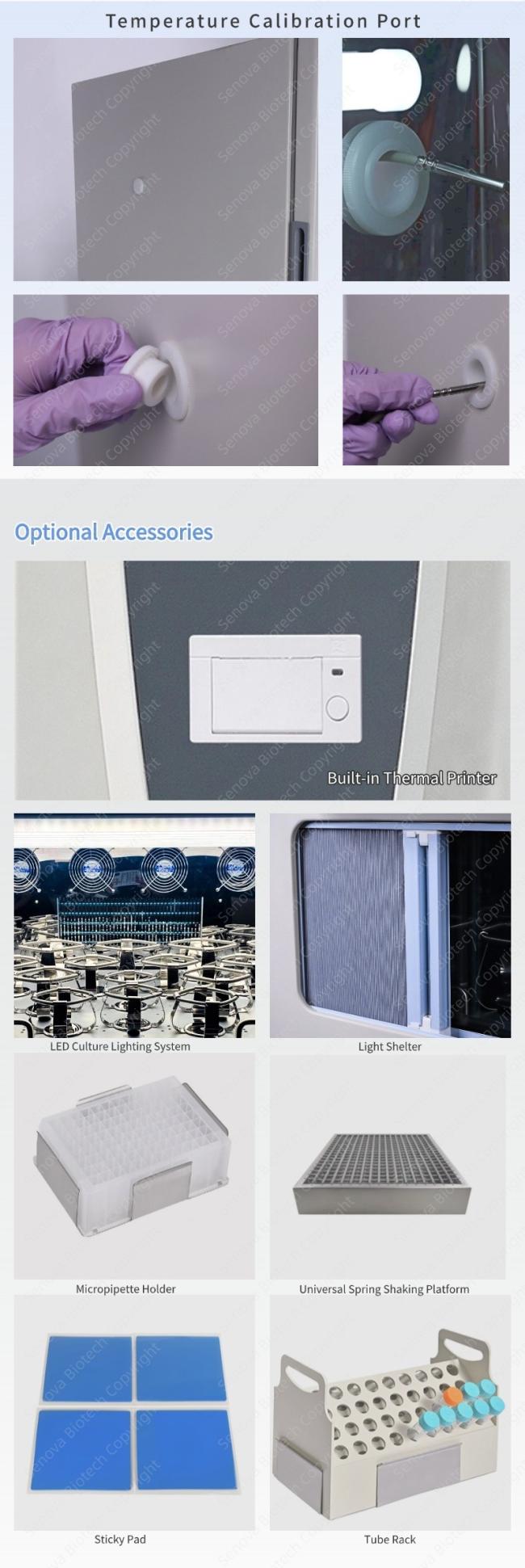

- Versatile Accessories: Multiple platform options for flasks, tubes, and microplates
- Operator Safety: Three-level security system with one-key screen locking
- Real-time Monitoring: Live curve display with working/set parameter comparison
- Calibration Ready: Built-in temperature and speed calibration functions
- Extended Functionality: Optional LED culture lighting and external humidity systems
- Reliable Performance: Independent over-temperature protection and compressor safeguards
Technical Data
| Temp. Control Range | 4℃-60℃ |
|---|---|
| Environment Temp. | 5℃-35℃ |
| Control | P.I.D. |
| Display | 7" LCD with touch screen |
| Programme | 5 groups/30-segment curve programming |
| Acceleration | Soft start |
| Compressor | Inverter compressor |
| Refrigerant | R134a,CFC-Free |
| Convection Mode | Forced Convection |
| Shaking Mode | Orbital |
| Drive | Single-shaft balance device |
| Motor | DC motor |
| Temp. Resolution | 0.1℃ |
| Temp. Accuracy | ±0.1℃ |
| Temp. Uniformity | <±0.5℃ |
| Speed Range | 30-300rpm |
| Speed Accuracy | ±1rpm |
| Orbit | Φ25mm (Optional: Φ50mm) |
| Timing Range | 0-999.59 hr/Continuous |
| Volume | 260L |
| Max. Stacking Units | 3 |
| Platform Size | 940x530x10(mm) |
| Flask Capacity | 5000mlx7,3000mlx11,2000mlx15,1000mlx27,500mlx38,or, 250mlx66 |
| Flask Platform Qty.(PC) | 1 |
| Chamber Dimensions | 1020x595x430(WxDxH,mm) |
| Overall Dimensions | 1410x790x660(WxDxH,mm) |
| Net Weight | 354Kg |
| Packing Size(LxWxH,cm) | 151x90x80 |
| Heating Power | 1300W |
| Cooling Power | 195W |
| Motor Power | 150W |
| Illumination Lamp Power | 8W |
| UV Lamp Power | 8W |
| Power Supply | AC 200-240V/50-60Hz(Optional: AC110V/60Hz) |
| Chamber Material | Polished SUS304 Stainless Steel |
| Construction | Mild steel with powder coating |
Introduction about laboratory shaker
A laboratory shaker is fundamental for sample agitation (benchtop/floor). Purpose: mix, aerate, suspend via controlled movement (often orbital), ensuring homogeneous solutions, uniform conditions vital for credible data in cell culture to analytical chemistry.
Principle: imparting reproducible motion; automates inconsistency-prone manual step. Configurations: open-air orbital, enclosed incubator for temp control, large-capacity floor for high-throughput. Digital control systems: high-precision parameter management for standardization.
Employed in essential tasks: culturing suspension-adapted insect cells for viral production, liquid-liquid extractions in organic synthesis, mixing samples/reagents in clinical diagnostics. Attributes: low-vibration drive for quiet operation, platform compatible with disinfectants, ATEX certifications where required.
