500mlx40 250mlx60 Shaker Incubator Floor Orbital Shaker ST-205
Price:
Available upon request
MOQ:
1unit
Delivery Time:
5-20 working days
Brand:
Senova
Product Description

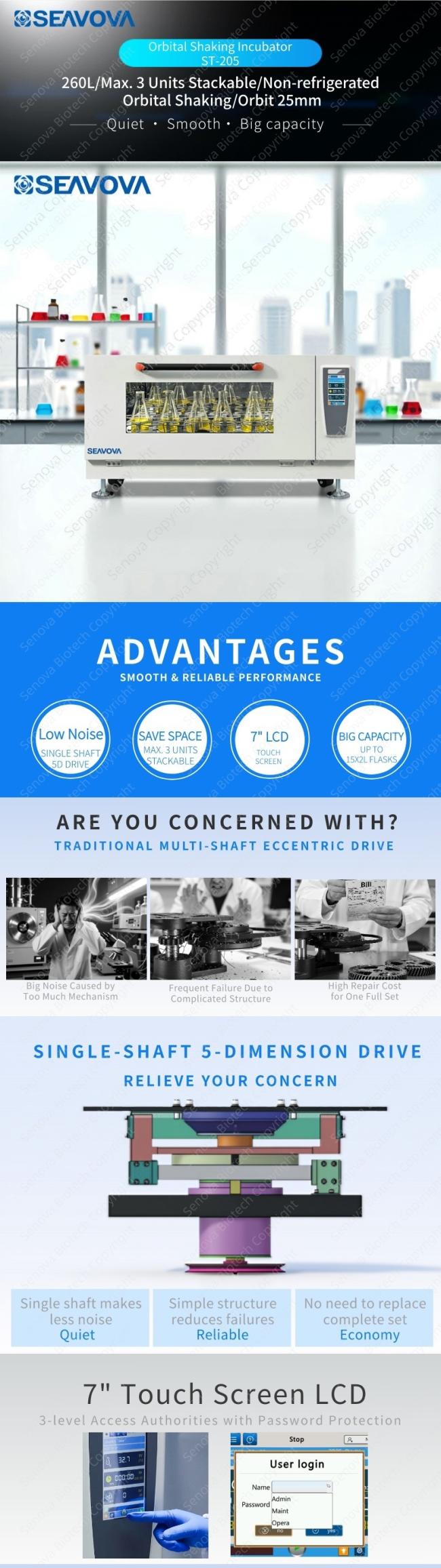

Non-refrigerated Orbital Shaking Incubator ST-205
Main Features
- Powder-coated steel construction
- 7" touch screen LCD display of set and working parameters.
- Thermal printer and USB interface
- Stainless steel chamber with illumination.

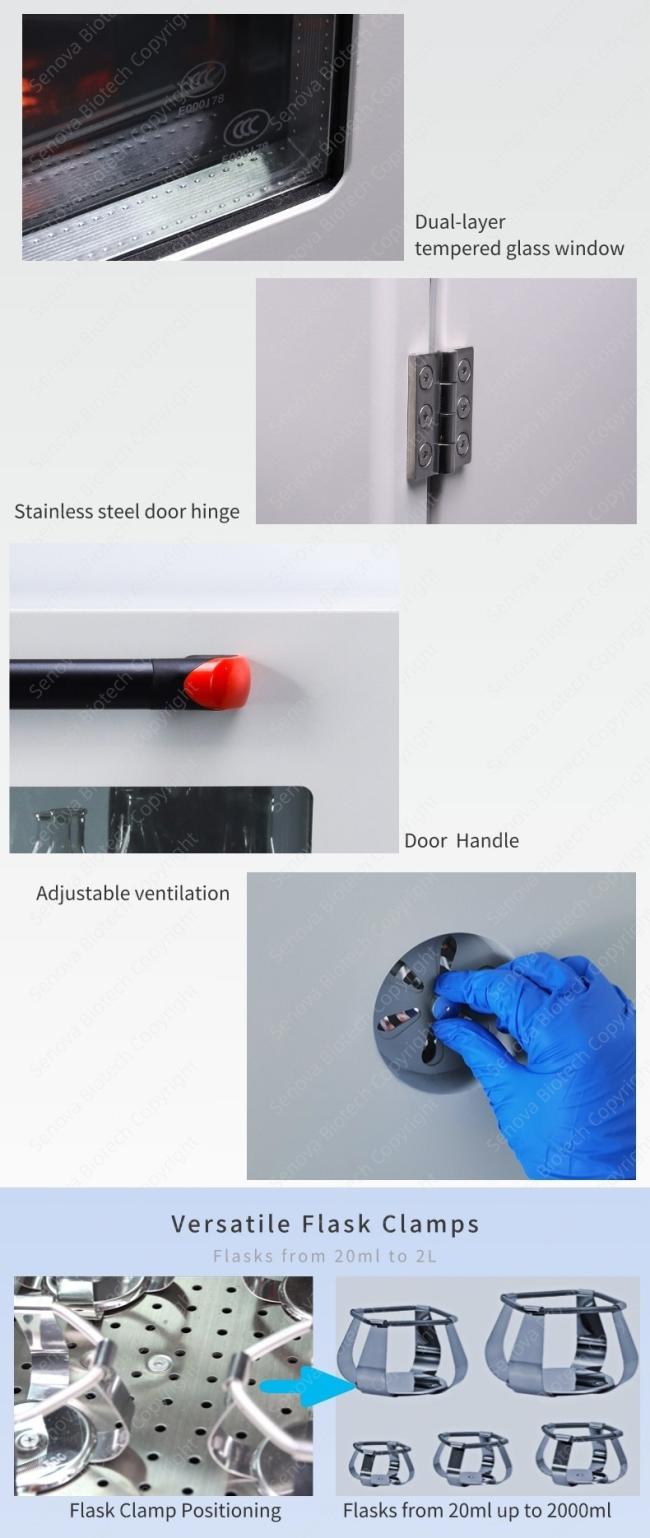

- Large toughened glass window to view temperature, speed and time.

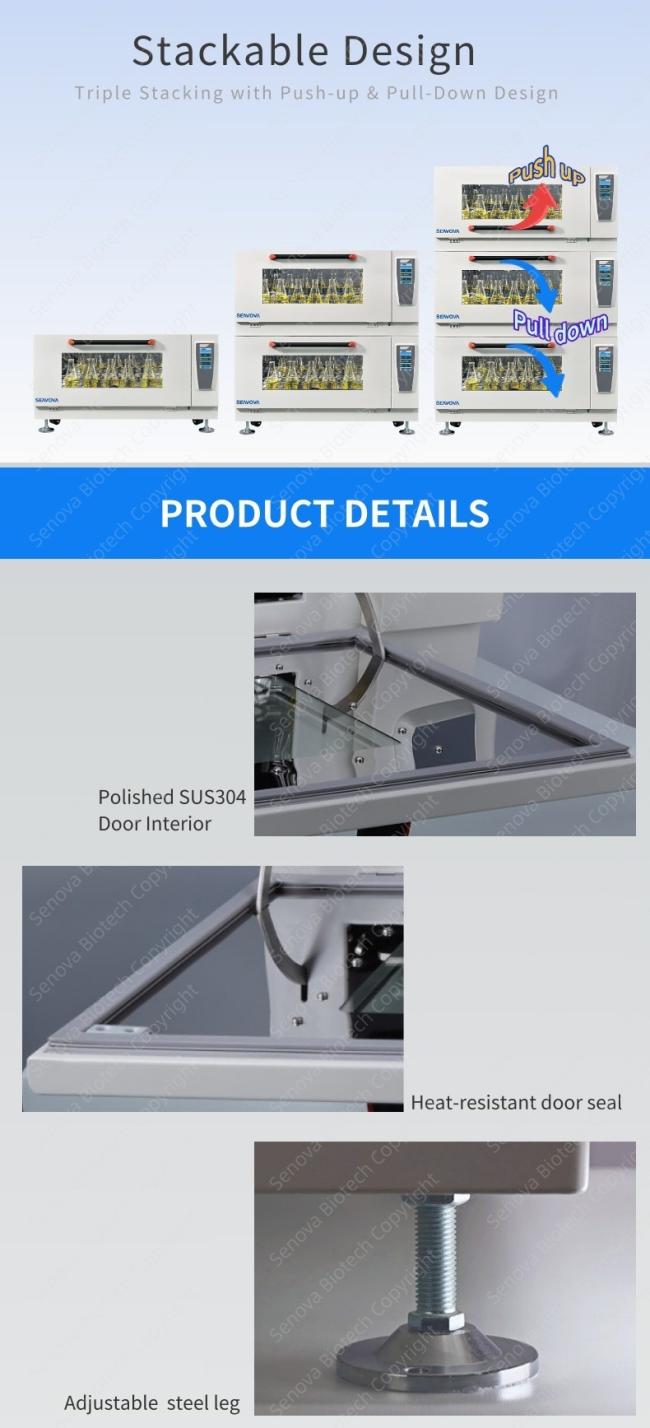

- Stackable floor standing (max. 3 units)
- P.I.D controller with acoustic & visual alarm
- 8-segment programs allows settings of different temperature/speed and time for each program
- Single-shaft drive technology, quite and durable
- Speed range extensible to 30-300rpm.
- Independent electricity leakage and over load protection without disrupting other equipment
- High/low limit over temperature acoustic & visual alarm, high/low limit over speed alarm, stop-running protection for door opening, electric current leakage and over load protection. Motor over-heat protection. Automatic power cut-off in case of temperature out of control or abnormal over-temperature
Technical Data
| Temp. Control Range | RT+5℃-60℃ |
| Environment Temp. | 15℃-35℃ |
| Control | P.I.D. |
| Display | 7" LCD with touch screen |
| Thermal Printer | Included |
| USB Interface | Included |
| Convection Mode | Forced Convection |
| Shaking Mode | Orbital |
| Drive | Single-shaft balance device |
| Temp. Resolution | 0.1℃ |
| Temp. Accuracy | ±0.1℃ |
| Temp. Uniformity | <±1℃ (at 37℃) |
| Speed Range | 30-300rpm |
| Speed Accuracy | ±1rpm |
| Orbit(mm) | Φ25 |
| Refrigerant | - |
| Timing Range | 0-999.59 hr/Continuous |
| Platform Size | 920x540x10(mm) |
| Flask Capacity | 2000mlx15,1000mlx24,500mlx40, or, 250mlx60 |
| Flask Platform Qty.(PC) | 1 |
| N.W. /G.W. (Kg,single Unit) | 345/375 |
| Chamber Dimensions | 1120x595x398(WxDxH,mm) |
| Capacity(L) | 189 |
| Overall Dimensions | 1410x785x640 (WxDxH,mm) |
| Packing Size(LxWxH,cm) | 146x84x75 |
| Power | 980W |
| Power Supply | AC 200∽240V 50-60HZ. Optional: AC110V/60Hz |
| Chamber Material | Polished SUS304 Stainless Steel |
| Construction | Steel with powder coating |
Introduction about laboratory shaker
As instrument for automated mixing, laboratory shaker agitates via controlled orbital/linear motion—creates solutions, promotes gas exchange, distributes particulates—indispensable for accuracy/reproducibility.
Premise: consistent dynamics; automation removes variability. Types: orbital (general), rocker (gentle), incubator (thermal/mechanical). Microprocessor enables precise setting, memory, monitoring.
Applications: fermenting yeast, dissolution testing, consistent binding in immunoassays. Characteristics: wide stable speed, durable motor, easy-clean design.
