Refrigerated Linear Orbital Incubator Shaker 50mlx96 Laboratory Incubator Shaker ST-203RX2
- 1. Controlled by an intuitive P.I.D. controller with clear LCD.
- 2. Optional 7" touch screen LCD available for advanced control.
- 3. Supports complex 8-segment curve programming.
- 4. Allows repeat and increment (step) programming modes.
- 5. Features parameter memory for protocol storage.
- 6. Includes speed saving for quick operation setup.
- 7. Offers power-failure recovery to continue interrupted runs.
- 8. Provides temperature/speed calibration capability.
- 9. Displays both time and dual temperature readings.

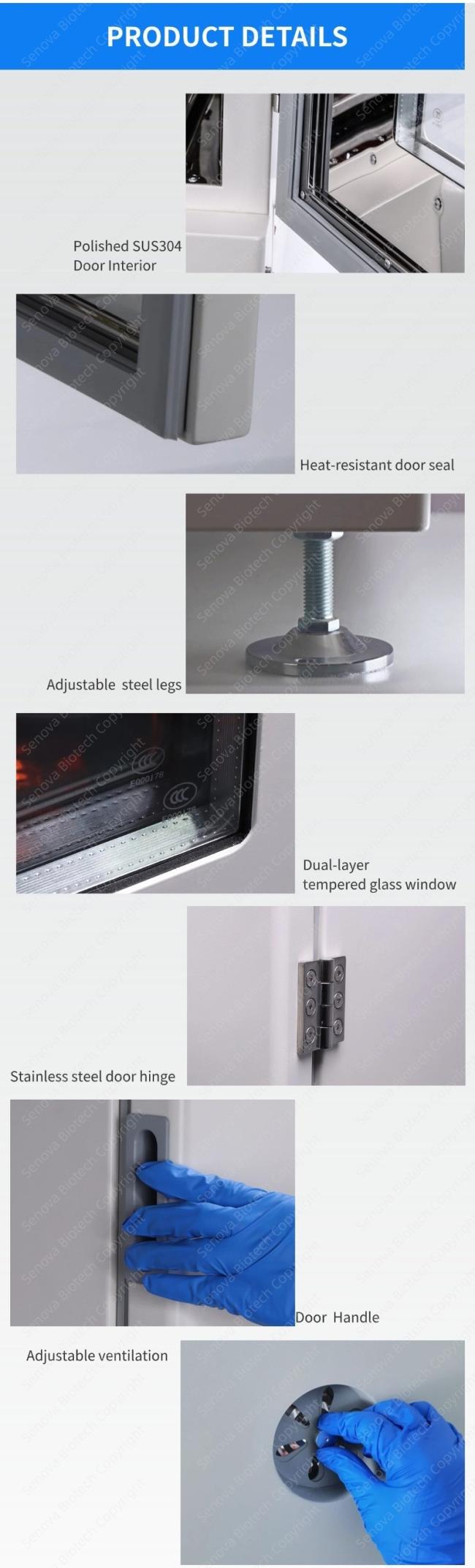

- 10. Built with a durable powder-coated steel exterior.
- 11. Features an illuminated stainless steel chamber interior.
- 12. Includes a large viewing window for process monitoring.
- 13. Offers optional refrigeration with CFC-free R134a system.

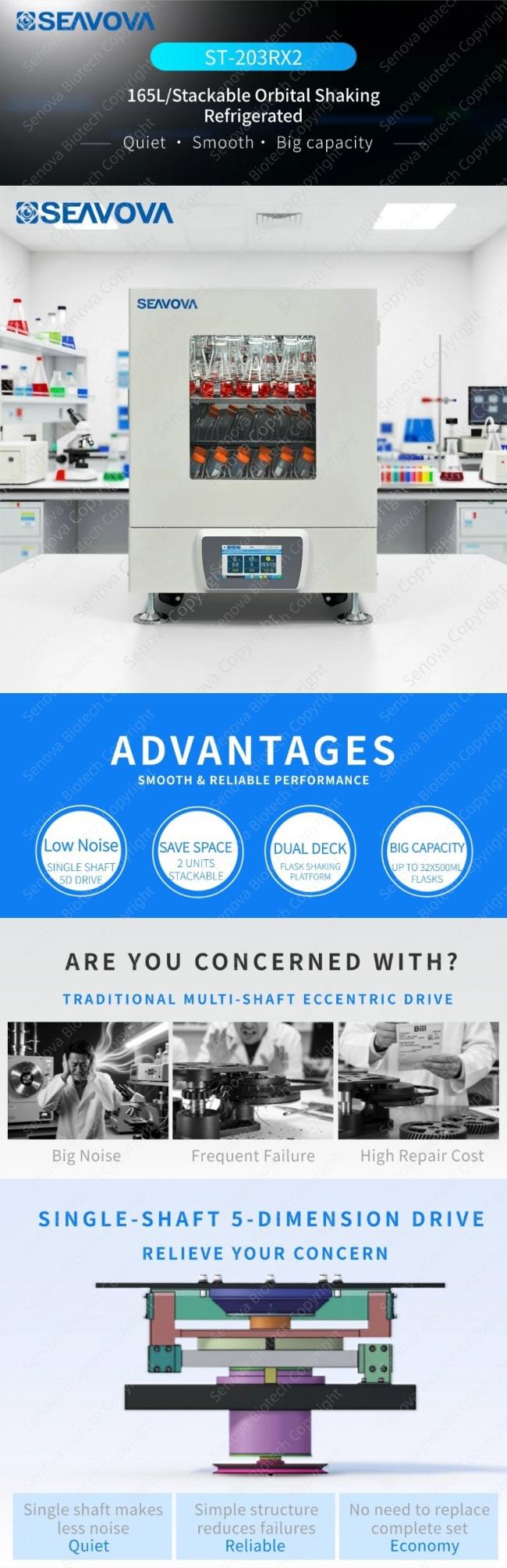

- 14. Uses quiet single-shaft 5-dimensions drive technology.
- 15. Powered by reliable brushless motor with constant torque.
- 16. Starts gently with soft start to protect samples.
- 17. Protected by comprehensive temperature/speed alarms.
- 18. Features door-open stop protection for safety.
- 19. Includes multiple electrical protection systems.

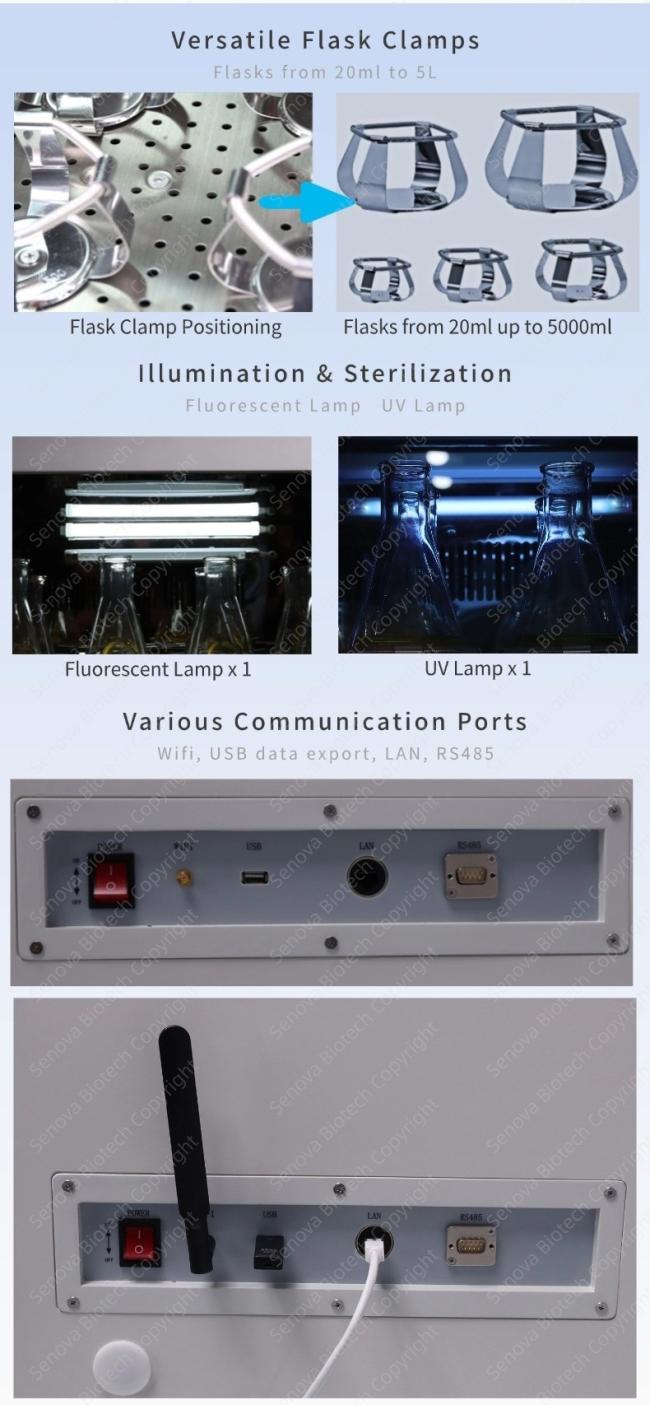

- 20. Comes with standard fluorescent and UV lamps.
- 21. ST-203R includes single platform and adjustable shelf.
- 22. ST-203RX2 offers dual-deck platform for high capacity.
- 23. Optional humidity control system available.
- 24. Various platform accessories maximize versatility.
| Control | P.I.D. |
| Display | LCD(Real-time display of working & set parameters) |
| Convection Mode | Forced Convection |
| Shaking Mode | Orbital |
| Drive | Single-shaft balance device |
| Environment Temp. | 15℃-35℃ |
| Temp. Range | 4℃-60℃ |
| Temp. Resolution | 0.1℃ |
| Temp. Fluctuation | <±0.2℃ |
| Temp. Uniformity | <±1℃(at 37 ℃) |
| Speed Range | 30-300rpm |
| Speed Accuracy | ±1rpm |
| Orbit | Φ25mm |
| Refrigerant | CFC-Free,R134a |
| Timing Range | 0-999.59 hr/Continuous |
| Platform Size | 450x400(mm) |
| Flask Capacity | 500mlx32,250mlx40,100mlx60,or, 50mlx60 |
| Platform Qty. (Single Unit) | 2 PCS(1x dual-deck shaking platform) |
| N.W/G.W.(Single unit) | 198/218 |
| Chamber Dimensions | 560x500x555(WxDxH,mm) |
| Overall Dimensions | 650x820x810(WxDxH,mm) |
| Capacity | 155L |
| Packing Size | 70x87x91(LxWxH,cm) |
| Power | 830W |
| Power Supply | AC 200∽240V/50-60HZ. Optional: AC110V/60Hz |
| Chamber Material | Polished SUS304 Stainless Steel |
| Construction | Steel with powder coating |
The laboratory shaker is automated for agitating samples in flasks/tubes/plates (benchtop/floor). Function: defined motions (primarily orbital) for homogenizing, aerating for cell growth, preventing stratification—cornerstone for uniform treatment in research/QC.
Operation: precise mechanical motion; consistent alternative to manual. Types differentiated: basic orbital, gentle-motion rockers, comprehensive incubator. Digital interfaces bring precise control for RPM, time, temp—crucial for sensitive processes.
Utility evident: growing recombinant E. coli for protein purification, sample prep for spectroscopy (complete dissolution), gentle agitation for cell-based assays in immunology. Characteristics: user-replaceable drive belt, intuitive control panel, sturdy construction for daily use.
