2000mlx4 Incubator Shaker Refrigerated 25mm Rotary Orbital Shaker Incubator ST-209R
Refrigerated Orbital-Linear Laboratory Incubator Shaker/ Shaking Incubator Shaker ST-209R
Main Features
- Durable Build: Powder-coated steel exterior

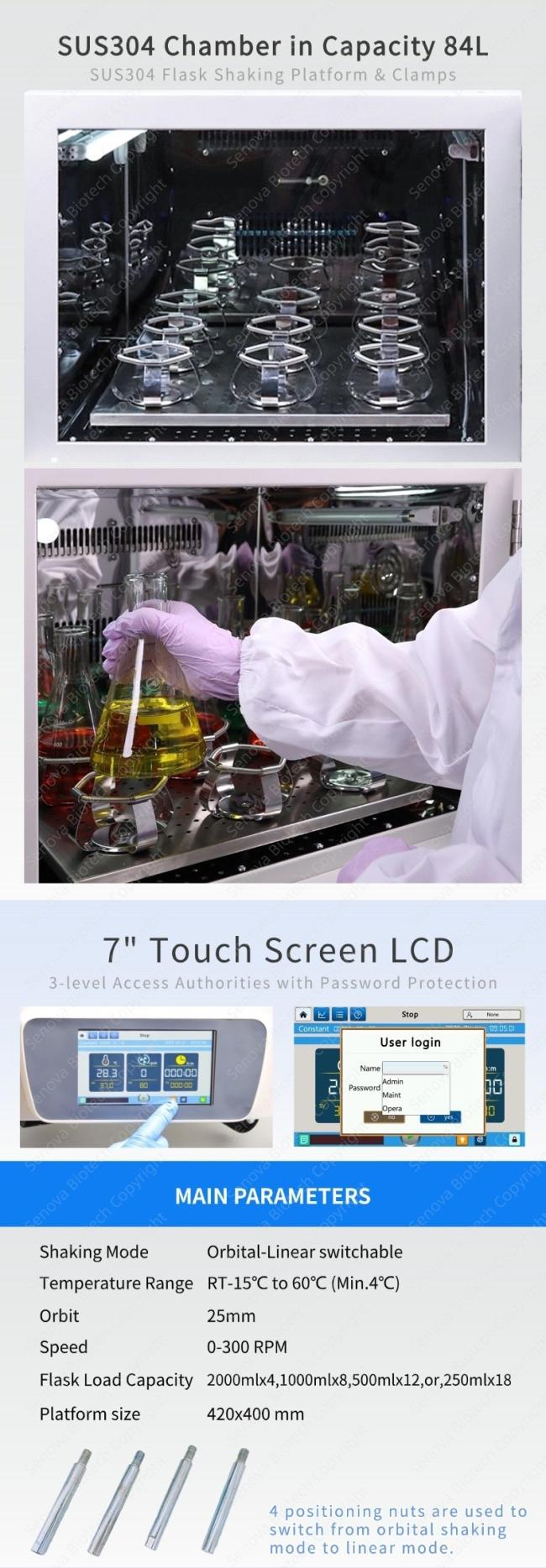

- Clean Chamber: SUS304 chamber with illumination and UV lamp
- Clear View: Large tempered glass window
- Large Capacity: SUS304 brushed shaking platform with flask clamps for 50ml~2000ml

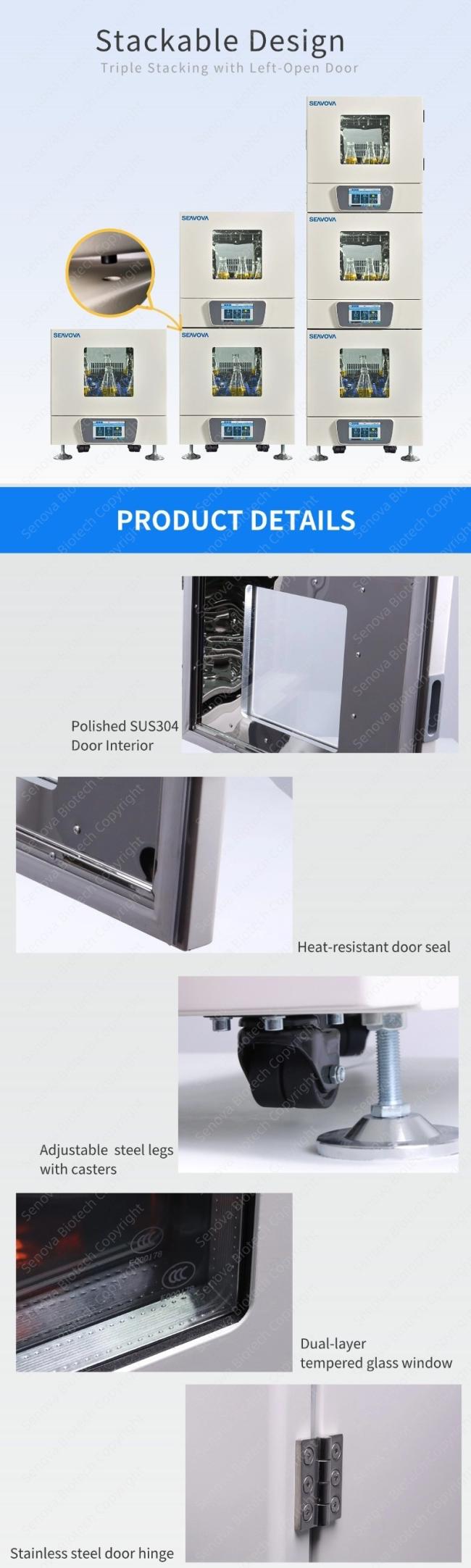

- Space Efficient: Stackable design (max. 3 units)
- Dual Modes: Switchable orbital-linear shaking
- Precise Temperature: Refrigerated system with RT-15℃ to 60℃ range (min. 4℃)
- Eco-Friendly: R134a CFC-free refrigerant
- Advanced Control: P.I.D. controller with 7" color touch screen

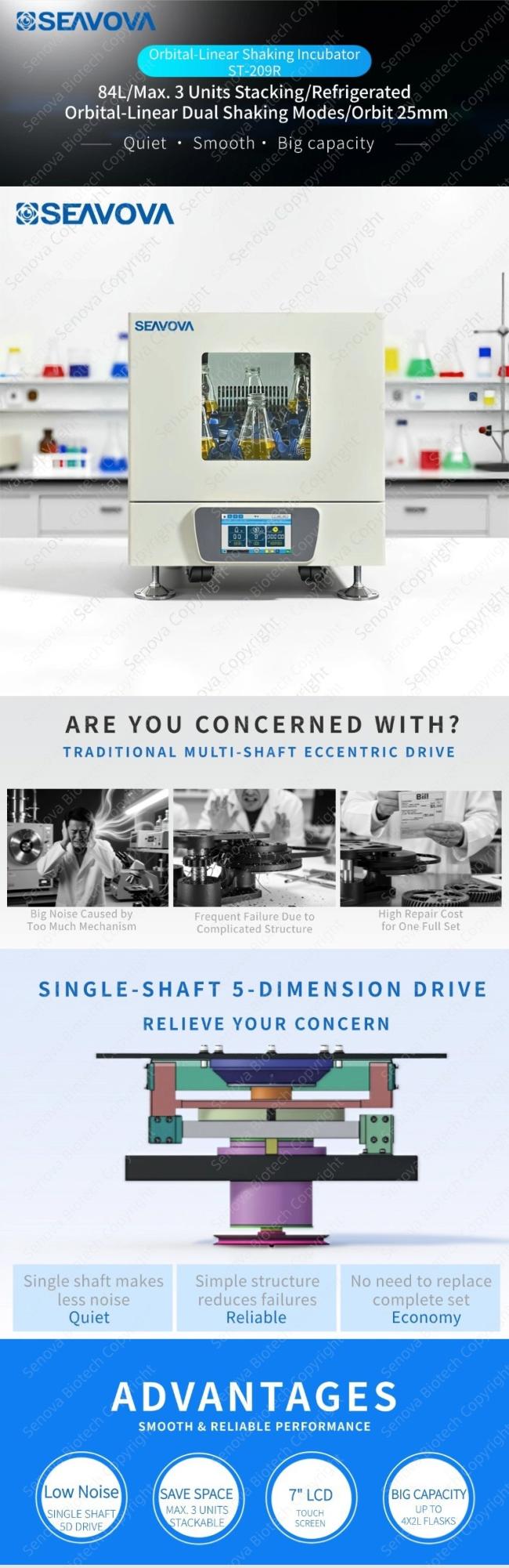

- Smooth Operation: Single-shaft 5-dimensions technology
- Electrical Safety: Independent leakage and overload protection
- Comprehensive Alarms: Temperature/speed limits, door opening, motor overheat protection
- Auto Safety: Automatic power cut-off for temperature abnormalities.
- Flexible Programming: Repeat, step, and 8-segment curve settings
- Smart Functions: Power failure recovery, parameter memory, speed saving

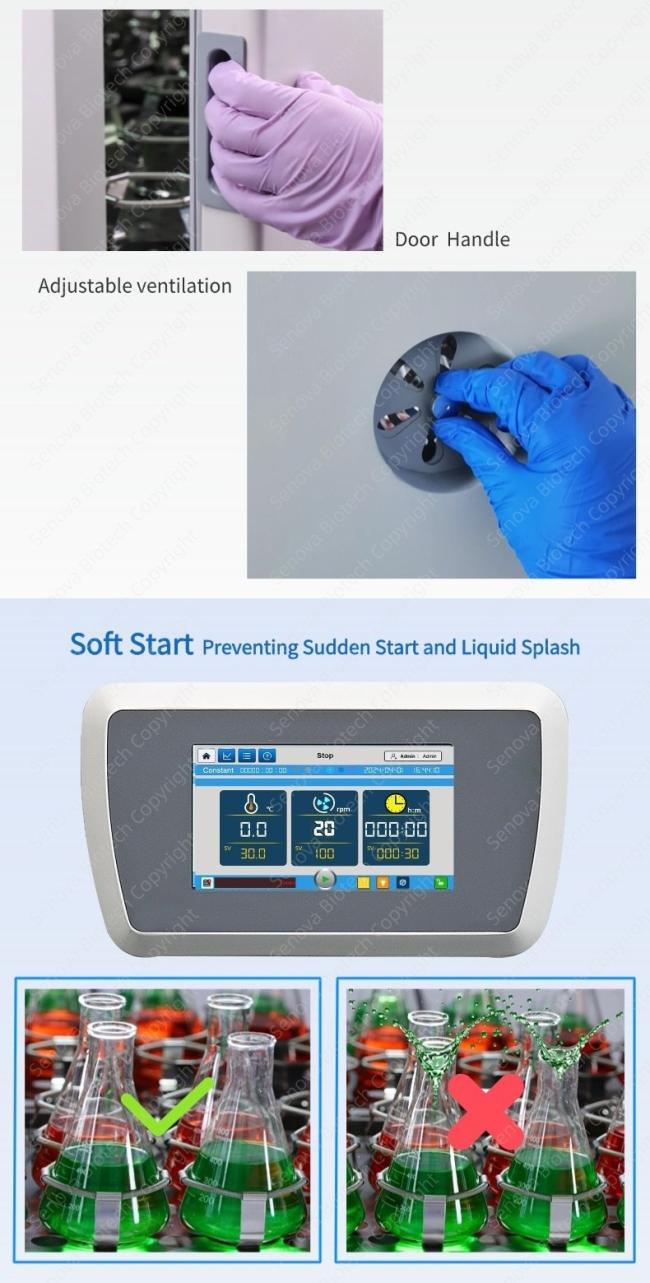

- Sample Protection: Soft start circuit prevents liquid splash

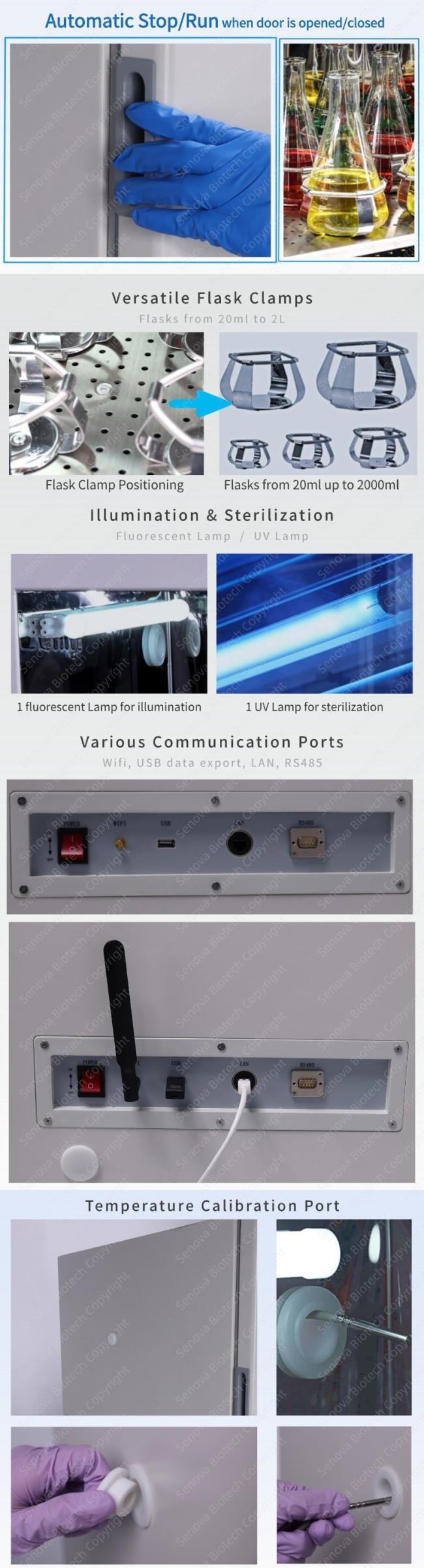

- User Safety Protection: Automatic stop when door is opened and automatic run again when door is closed
- Reliable Motor: Maintenance-free AC brushless motor with constant torque
- Data Ready: Standard USB and RS485 ports
- Calibration Ready: Temperature and speed calibration capability
- Extended Options: Humidity control, thermal printer, and specialized racks available
Application Benefits:
- Supports diverse cell culture, microbial, and biochemical applications
- Dual shaking modes adapt to specific experimental protocols
- Stackable design maximizes laboratory space
- Comprehensive safety systems protect valuable samples and users
- Advanced programming enables complex experimental designs
- Easy maintenance and cleaning design reduces contamination risk
- Reliable performance ensures consistent experimental results
Technical Data
| Control | P.I.D.(Environmental Scanning Microprocessor) |
| Display | 7" colour LCD (with touch screen) |
| Convection Mode | Forced Convection |
| Shaking Mode | Orbital-Linear switchable |
| Drive | Single-shaft balance device |
| Max. Stacking Units | 3 |
| Working Temperature | 5℃-35℃ |
| Temp. Control Range | RT+5℃-60℃ |
| Temp. Resolution | 0.1℃ |
| Temp. Fluctuation | ≤±0.2℃ |
| Temp. Uniformity | ≤±1℃ (at 37℃) |
| Speed Range | 30-300rpm |
| Speed Accuracy | ±1rpm |
| Orbit | Φ25 |
| Refrigerant | / |
| Timing Range | 0-999.59 hr/Continuous |
| Flask Platform Size | 542x445 mm |
| Flask Platform Qty. | 1 PC |
| Max. Flask Capacity | 3000mlx5, 2000mlx6,1000mlx12,500mlx20,or,250mlx30 |
| Standard Configuration | Fluorescent lamp, UV lamp, shaking platform, flask clamps |
| Optional Accessories | Universal spring shaking platform, tube rack, microplate holder, sticky pad |
| N.W./G.W. (Single Unit) | 105Kg/125Kg |
| Chamber Dimensions | 610x505x395(WxDxH,mm) |
| Overall Dimensions | 910x710x630(WxDxH,mm) |
| Packing Size | 96x76x72(LxWxH,cm) |
| Capacity | 122L |
| Power | 600W |
| Power Supply | AC 200∽240V 50-60HZ. Optional: AC110V/60Hz |
| Chamber Material | Polished SUS304 |
| Construction | Steel plate with powder coating |
Introduction about laboratory shaker
As an instrument for automated mixing, the laboratory shaker agitates samples in containers via controlled orbital/linear motion, creating homogeneous solutions, promoting gas exchange, keeping particulates distributed—indispensable for accuracy/reproducibility in life sciences, chemistry, clinical analysis.
Premise: consistent dynamic conditions; automation removes human variability. Types: orbital (general), rocker (gentle processing), incubator (thermal/mechanical control). Microprocessor controls enable precise digital setting, memory storage, real-time monitoring.
Applications: fermenting yeast in brewing research, dissolution testing of Biopharma, ensuring consistent antigen-antibody binding in immunoassays. Characteristics: wide stable speed range, durable motor for long life, easy-clean design with minimal crevices.
