16000rpm High Speed Refrigerated Centrifuge 12x5ml Cold Centrifuge Machine
It is suitable for the separation of micro samples in biology, medicine, scientific research, etc. It is the preferred product for genetic and protein nucleic acid PCR experiments.
- Power coated housing. Stainless steel chamber with guarding ring.
- Compact design saves your working desk space.
- Reliable drive system. Variable frequency motor maintenance free.
- Electronic safety lock prevent cover opening during centrifugation.
- Manually lid open in case of failure or emergency.
- Pneumatic spring supports prevent falling of lid.
- Pre-cooling during standstill. CFC free refrigeration system.
- Recall of last settings. Parameters can be changed during operation.
- Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, RCF, error display.
- The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.
- Special rotor connector which makes it easy to load and unload the rotor.
| Model | NovaFuge B121-16R |
| Max. RPM/RCF for angle rotor | 16000rpm / 17446*g |

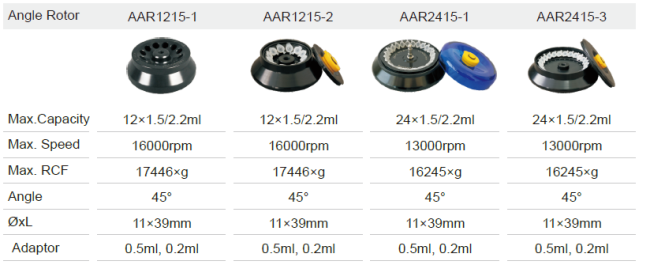

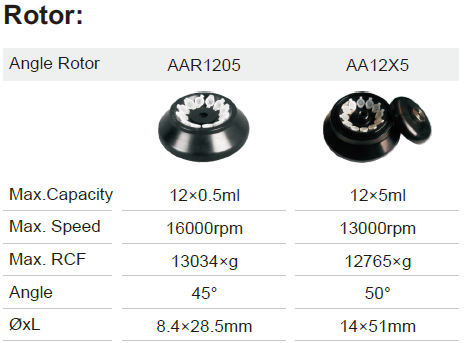

| Max. Capacity for angle rotor | 24*1.5/2.2ml, 12*5ml |
| Speed Increment | 1rpm |
| Speed Accuracy | ±20rpm |
| Temp. Range | -20℃~+40℃ |
| Temp Accuracy | ±2℃ |
| Timer Range | 0~99min59s |
| Acc / Dec rates | 10/10 |
| Power Supply | AC220V / 50~60Hz |
| Power Requirement | 668W |
| Noise | <55db |
| Display | LCD screen |
| Machine Body | Plastic and metal frame |
| Net Weight (without rotor) | 36kg |
| Machine Dimension(L*W*H) | 340*590*310mm (L*W*H) |
At the heart of many protocols lies centrifugation, a technique powered by specialized equipment. This device spins containers at high velocities, creating a centrifugal pull that segregates mixtures by component density. For practical lab use, instruments are grouped into benchtop versions, ideal for general-purpose use, and floor-standing models, built for high-speed, high-volume applications such as DNA extraction. The rotor assembly, whether fixed-angle or swinging, is central to its function. Selecting an appropriate model necessitates evaluating target g-force, temperature stability, sample tube compatibility, and comprehensive safety features.
