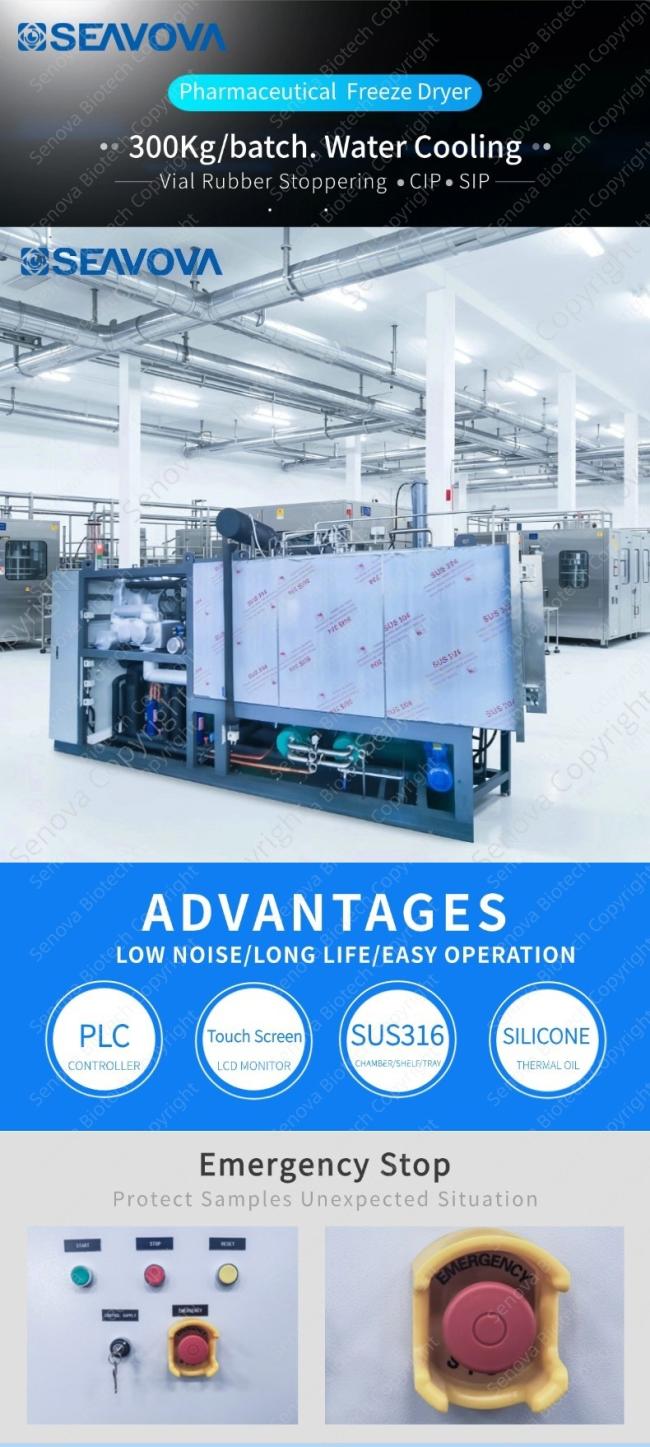

300Kg Freeze Dryer In Pharmaceutical Industry Small Lyophilizer

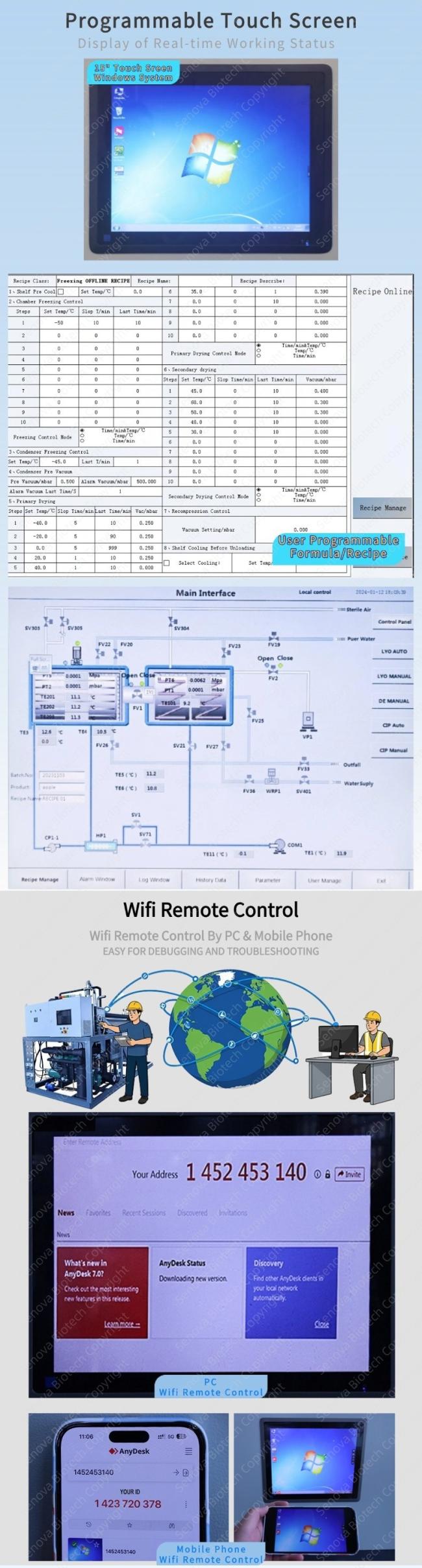

- Advanced Control & Software: Built-in Wi-Fi and remote viewing capabilities enable integration into centralized SCADA and MES for plant-wide monitoring and control.
- Advanced Control & Software: Comprehensive data logging and export functions are ready for advanced data analysis, predictive maintenance, and AI-driven process optimization.
- Key Optional Features: The SIP (Sterilization-in-Place) option is a key step towards full process automation and integration with a clean-in-place (CIP) system.
- Flexible Vacuum System: Compatibility with leading-brand vacuum pumps ensures serviceability and integration with existing site utilities and maintenance protocols.
- Precise Temperature Control: The highly accurate and reliable temperature data output is of sufficient quality for use in sophisticated process models and digital twins.

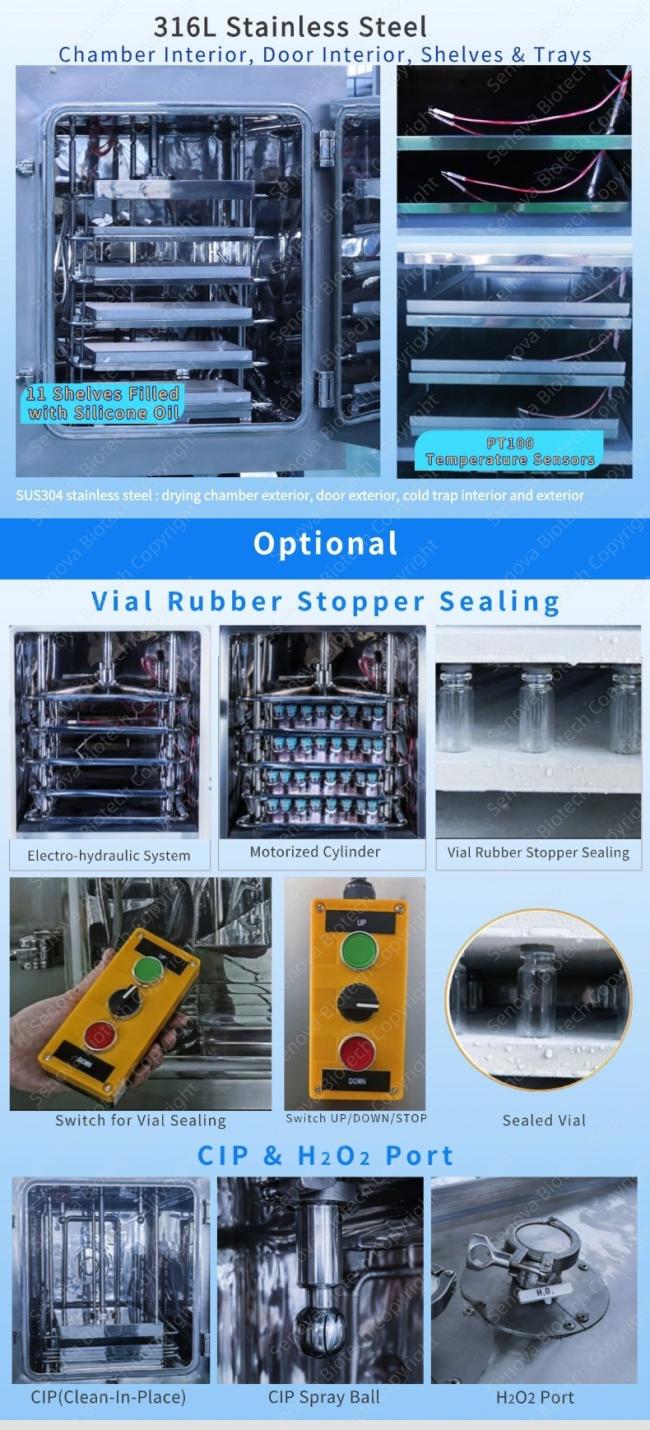

- GMP-Compliant Chamber & Trap: The design supports integration with automated loading and unloading systems (ALS/ULS) for fully automated lyophilization lines.

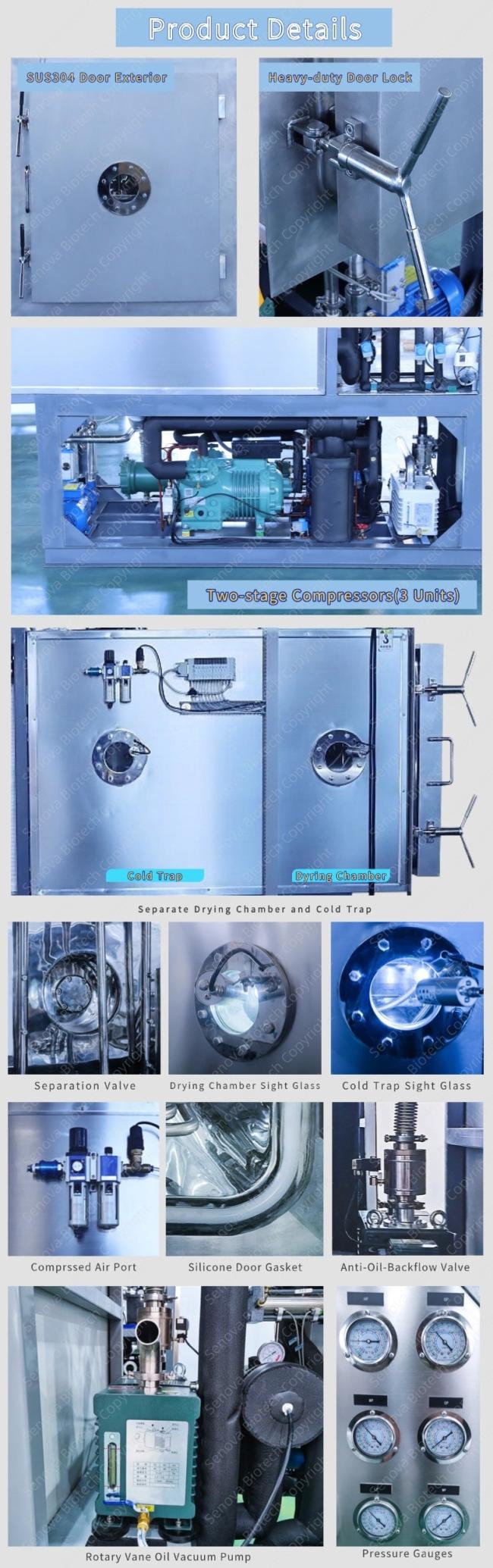

- Robust Refrigeration System: The reliable and data-rich refrigeration system can be monitored for performance trends, enabling predictive maintenance before failures occur.
|
Model |
NovaDryer-FS300 |
|
|
Shelf Area |
m2 |
30 |
|
Vial Load Capacity |
Φ16mm |
120000 |
|
Φ22mm |
60000 |
|
|
Bulk Liquid Load Capacity |
L |
600 |
|
Shelf Dimensions (mm) |
Width |
1495 |
|
Depth |
1800 |
|
|
Shelf Qty |
PCS |
11+1 |
|
Shelf Space |
mm |
100 |
|
Shelf Temp. Range |
℃ |
-55～+80℃ |
|
Condenser Temp. |
℃ |
-75 |
|
Max. Icing Capacity of Condenser |
KG |
400 |
|
PLC Controller |
OMRON or S-i-e-m-e-n-s |
|
|
Extreme Vacuum |
Pa |
1 |
|
Leakage Rate |
PA.m³/S |
0.025 |
|
Total Power |
Kw |
139 |
|
Length |
mm |
8000 |
|
Width |
mm |
2720 |
|
Height |
mm |
4300 |
|
Weight(*Type C) |
KG |
22000 |
|
Weight(*Type SC) |
KG |
22000 |
Q: What is the HS code?
A: Typically 8419331000, 8419339090, or 8419399090. Confirm with your local customs.
Q: How to get a quote and brochure?
A: Tell us the model and quantity. You'll receive a detailed quote with specs and brochure.
Q: Compatible with 110V/60Hz or 220V/60Hz?
A: Yes. Supports 110V/60Hz and 200V-240V/50-60Hz. Specify your requirement when ordering.
Q: Operating vacuum level?
A: 15Pa (0.15 mbar).
Q: English version available?
A: Yes.
Q: Can the power plug be replaced?
A: Yes. We provide cords with various international plugs. Specify your standard.
Q: Ready to use upon delivery?
A: Almost. Connect the pump, plug in, and power on. Use the touch screen to operate.
Q: Difficult to install for first-time users?
A: No. We provide a manual, picture checklist, and a setup video for easy installation.
Q: Can I get an oil-free vacuum pump?
A: Yes, as an optional upgrade for extra cost.
Q: What is the packaging?
A: Strong plywood crate for safe international shipping.
Q: Can it ship by air?
A: Yes, but extra inspections/fees apply for refrigerant. Sea freight is more cost-effective.
Q: Can we check quality before shipment?
A: Yes. We provide photos and videos of your actual unit for approval before shipping.
Q: Payment terms?
A: T/T (Bank Transfer).
Q: Delivery time?
A: 5-20 working days after payment, depending on order.
Q: Company location? Can we visit?
A: Based in Shanghai with a factory nearby. Visits are welcome.
Q: What certifications?
A: ISO 9001 and CE.
Q: After-sales service?
A: Includes online support, video training, quick spare parts supply, and optional factory training.
Q: Warranty?
A: 12-month standard warranty (14 months for stock orders). Lifetime maintenance support.
Freeze-drying (lyophilization) is an age-old technique to preserve and portableize perishables by freezing and sublimating water via pressure reduction. Dating to 13th-century Andean Indians, it became sophisticated in the 1950s. First developed for blood plasma in World War II, it later entered consumer food markets. Albert Altmann freeze-dried organs in 1890; 1920s patents included rabies virus freeze-drying. The 1950s expanded to camping food. NASA utilized it for space food, including iconic ice cream on Apollo and Gemini. Nestlé’s 1965 instant coffee launch popularized it. Early uses by Aztecs and Eskimos preserved biological samples.
Today, freeze-drying freezes products in specialized chambers with heaters to form granules influenced by chamber design. Key perks: shelf life extends 7–8 times versus fresh, nutrition is retained, costs are lower, and convenience is high. Freeze-dried foods are nutritious, and dairy keeps probiotics.
Senova, innovating freeze dryers for 15 years, serves over 80 countries with reliable performance and support, adding an EU office in 2024.
