40m2 Area Pharmaceutical Freeze Dryer For Probiotic , Pharmacy
- GMP-Compliant Chamber & Trap: Constructed with SUS304/316L mirror-finished stainless steel and integral insulation to prevent contamination and condensation, fully adhering to pharmaceutical hygiene standards.
- High-Performance Shelves: Leak-tested shelves with superior heat transfer uniformity ensure every vial receives identical thermal treatment, critical for batch consistency.
- Robust Refrigeration System: High-efficiency compressors and a protective refrigeration system guarantee reliable, low-temperature operation down to -50°C, essential for sensitive biologicals.
- Precise Temperature Control: Exceptional shelf temperature uniformity (-50°C to +80°C) is maintained by a advanced heating media system, safeguarding product integrity.

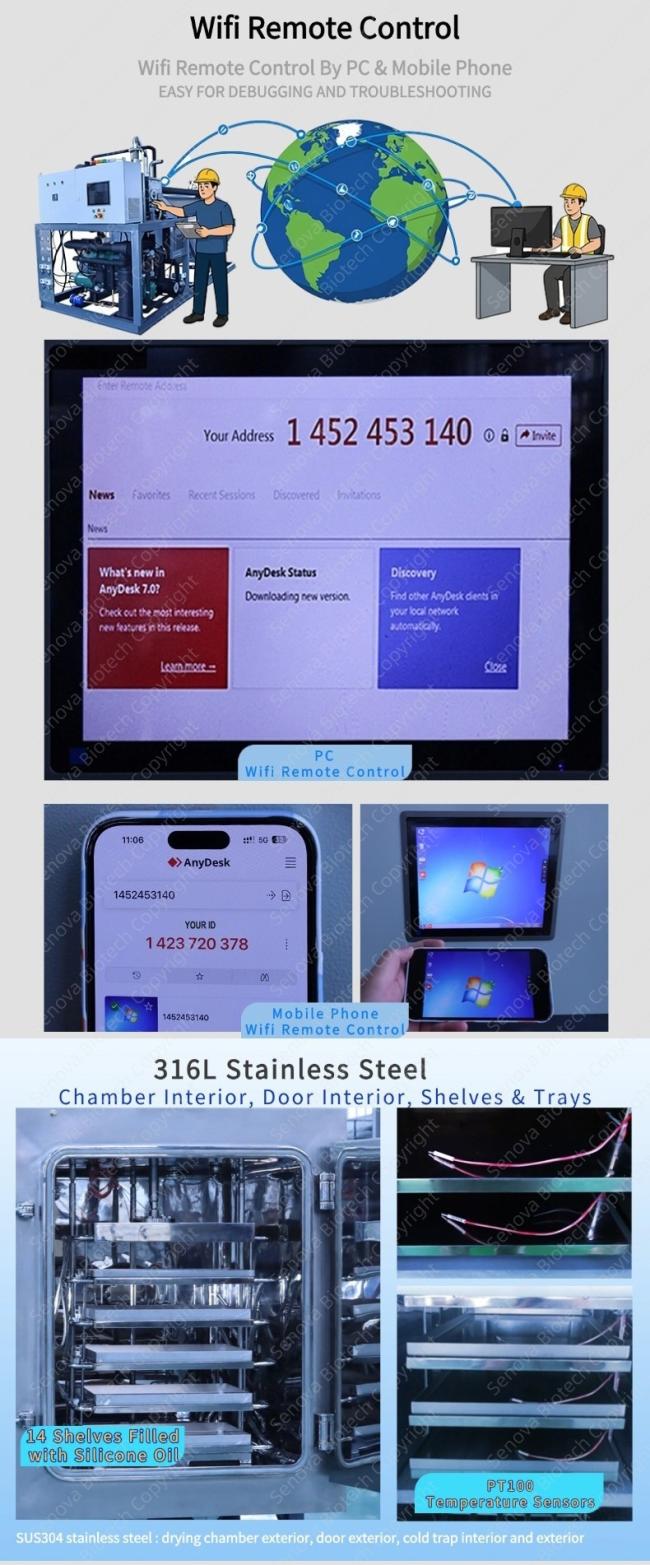

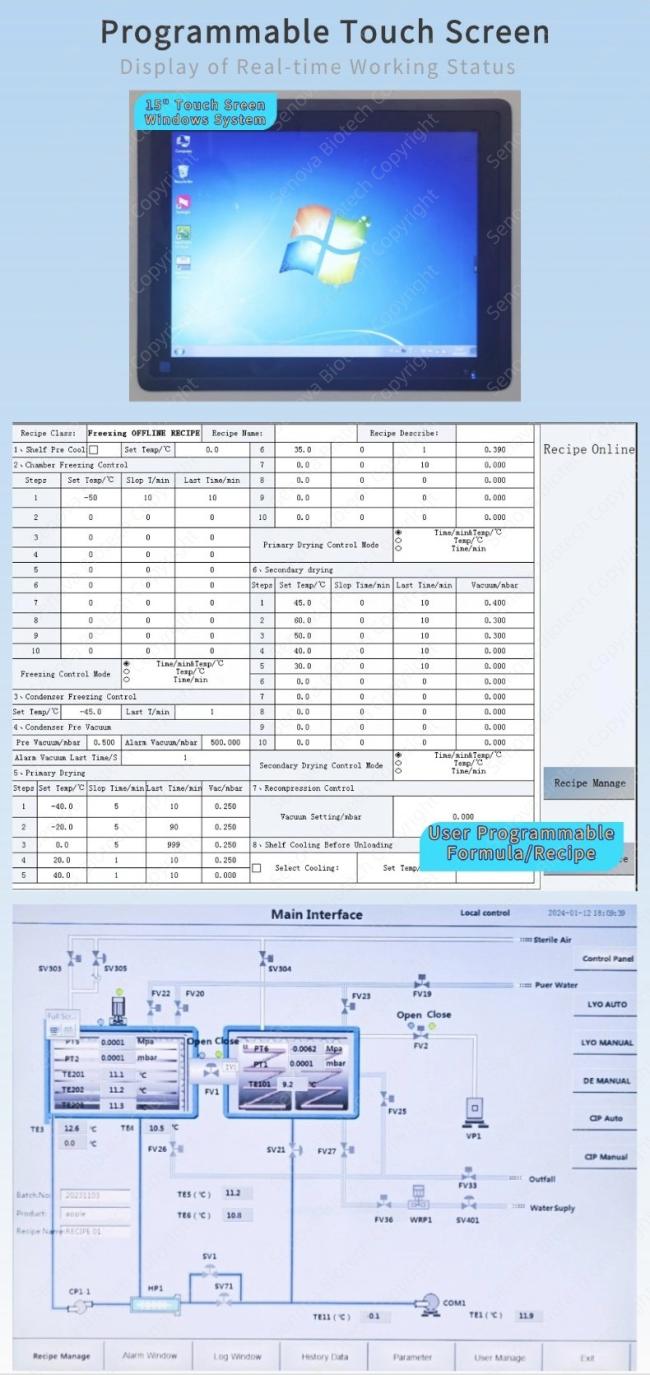

- Advanced Control & Software: Comprehensive recipe management and three-level user rights provide full process control and data integrity for strict quality assurance protocols.
- Flexible Vacuum System: Configurable with top-tier vacuum pumps, featuring anti-oil backflow protection to prevent chamber contamination.

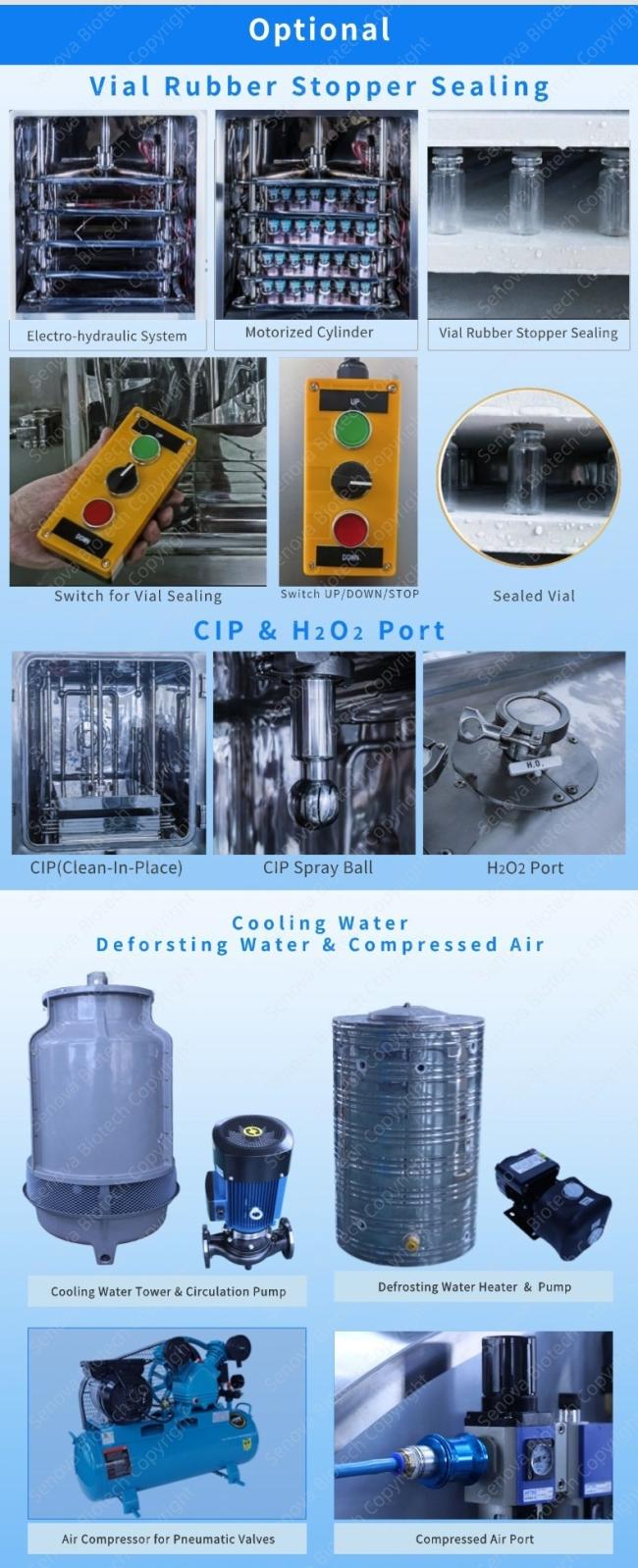

- Key Optional Features: Enhance capabilities with Sterilization-in-Place (SIP) for automated sterilization and a dry nitrogen inflation valve for inert vial sealing.
| Model | NovaDryer-FS400 | |
|---|---|---|
| Shelf Area | m2 | 40 |
| Vial Load Capacity (PCS) | Φ16mm | 168000 |
| Φ22mm | 82000 | |
| Bulk Liquid Load Capacity | L | 850 |
| Shelf Dimensions (mm) | Width | 1495 |
| Depth | 2000 | |
| Shelf Qty | PCS | 14+1 |
| Shelf Space | mm | 100 |
| Shelf Temp. Range | ℃ | -55～+80℃ |
| Condenser Temp. | ℃ | -75 |
| Max. Icing Capacity of Condenser | KG | 800 |
| PLC Controller | OMRON or S-i-e-m-e-n-s | |
| Extreme Vacuum | Pa | 1 |
| Leakage Rate | PA.m³/S | 0.025 |
| Total Power | Kw | 198 |
| Length | mm | 9000 |
| Width | mm | 3000 |
| Height | mm | 4600 |
| Weight(*Type C) | KG | 23000 |
| Weight(*Type SC) | KG | 26000 |
A: Typically 8419331000, 8419339090, or 8419399090. Confirm with your local customs.
A: Tell us the model and quantity. You'll receive a detailed quote with specs and brochure.
A: Yes. Supports 110V/60Hz and 200V-240V/50-60Hz. Specify your requirement when ordering.
A: 15Pa (0.15 mbar).
A: Yes.
A: Yes. We provide cords with various international plugs. Specify your standard.
A: Almost. Connect the pump, plug in, and power on. Use the touch screen to operate.
A: No. We provide a manual, picture checklist, and a setup video for easy installation.
A: Yes, as an optional upgrade for extra cost.
A: Strong plywood crate for safe international shipping.
A: Yes, but extra inspections/fees apply for refrigerant. Sea freight is more cost-effective.
A: Yes. We provide photos and videos of your actual unit for approval before shipping.
A: T/T (Bank Transfer).
A: 5-20 working days after payment, depending on order.
A: Based in Shanghai with a factory nearby. Visits are welcome.
A: ISO 9001 and CE.
A: Includes online support, video training, quick spare parts supply, and optional factory training.
A: 12-month standard warranty (14 months for stock orders). Lifetime maintenance support.
Lyophilization, or freeze-drying, preserves perishable items by freezing and sublimating water under low pressure, an ancient practice from 13th-century Andean Indians. It advanced in the 1950s. World War II spurred its development for blood plasma. Afterward, it became common in consumer foods. In 1890, Albert Altmann freeze-dried organ pieces; 1920s patents covered rabies virus freeze-drying. The 1950s saw camping food uses. NASA adopted it for astronaut meals, famously with ice cream on space missions. Nestlé’s 1965 freeze-dried instant coffee mainstreamed the technology. Historically, Aztecs and Eskimos used it for biological samples. Modern methods involve freezing in designed chambers with heating to create solid granules based on chamber geometry and speed.
Benefits are significant: foods last 7–8 times longer than fresh, keep nutrients, save money, and are convenient. Freeze-dried dairy preserves nutrients and probiotics.
Senova freeze dryers, serving homes, labs, and industries for 15 years, offer global support in over 80 countries, with an EU office in 2024.
