Cyto Centrifuge NovaFuge CS143-8K
The Cyto Centrifuge NovaFuge CS142-12K is a specialized instrument designed for advanced hematology diagnostics. It is used for erythrocyte-serum analysis, antigen and antibody identification, and related immunological testing in clinical hematology laboratories and research facilities.
- Microprocessor control with LED display
- Brushless DC motor system
- Automatic error diagnostics
- 8-12 specimens processed within 5 minutes
- Automatic balancing with low chamber temperature rise
- Uniform cell smear preparation with clear background and no contamination
- Stainless steel chamber with power-coated steel housing and ABS front panel
- Electronic lid lock with multiple protections: lid safety, overspeed prevention, and imbalance detection
|
Model |
NovaFuge CS143-8K |
|

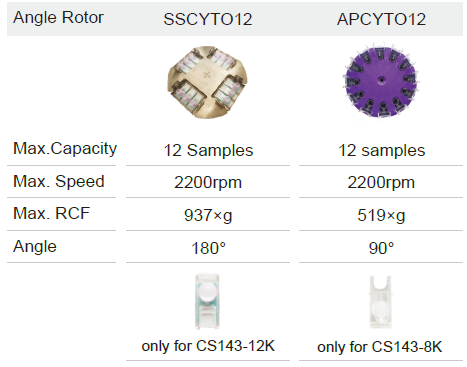

Rotor type |
Angle rotor |
|
Max. RPM |
2200rpm |
|
Max. RCF |
519×g |
|
Max. Capacity |
12 samples |
|
Speed Increment |
10rpm |
|
Speed Accuracy |
±20rpm |
|
Timer Range |
0min~99min59s |
|
Acceleration / Deceleration rates |
10/10 |
|
Power Supply |
AC220V / 50~60Hz |
|
Power Requirement |
200W |
|
Noise |
<55db |
|
Display |
LCD Screen |
|
Machine Body |
Plastic and metal frame |
|
Net Weight (without rotor) |
22kg |
|
Machine Dimension(L×W×H) |
340×480×290mm |
Centrifugation technology transforms sample preparation. A centrifuge accomplishes this by rapidly spinning its rotor, creating a force field that segregates components based on minute density differences. This principle is harnessed in two primary instrument classes. Benchtop centrifuges, compact and user-friendly, are staples in clinical labs for processing blood or urine. Conversely, floor-standing models offer heightened speed and capacity for research-intensive tasks like nucleic acid purification. The rotor, whether fixed-angle or swing-out, dictates the separation geometry. Prospective buyers must prioritize their needs: target protocols dictate speed and g-force, while sample sensitivity determines the need for temperature-controlled runs.
