Refrigerated Orbital Laboratory Incubator Shaker ST-205R
- Multi-Layer Safety Architecture: Integrates high/low limit alarms for temperature and speed, forming the first alert layer.
- Physical Safety Intervention: Features stop-running protection when the door is opened, preventing exposure to moving parts.
- Electrical Hazard Protection: Safeguarded against electric current leakage and overload for user safety.
- Critical System Protection: Includes motor over-heat protection and automatic power cut-off during control failures or extreme overtemperature events.
- Primary Sample Safeguard: A soft start function eliminates initial jolts, preventing liquid splash and protecting delicate cell cultures.

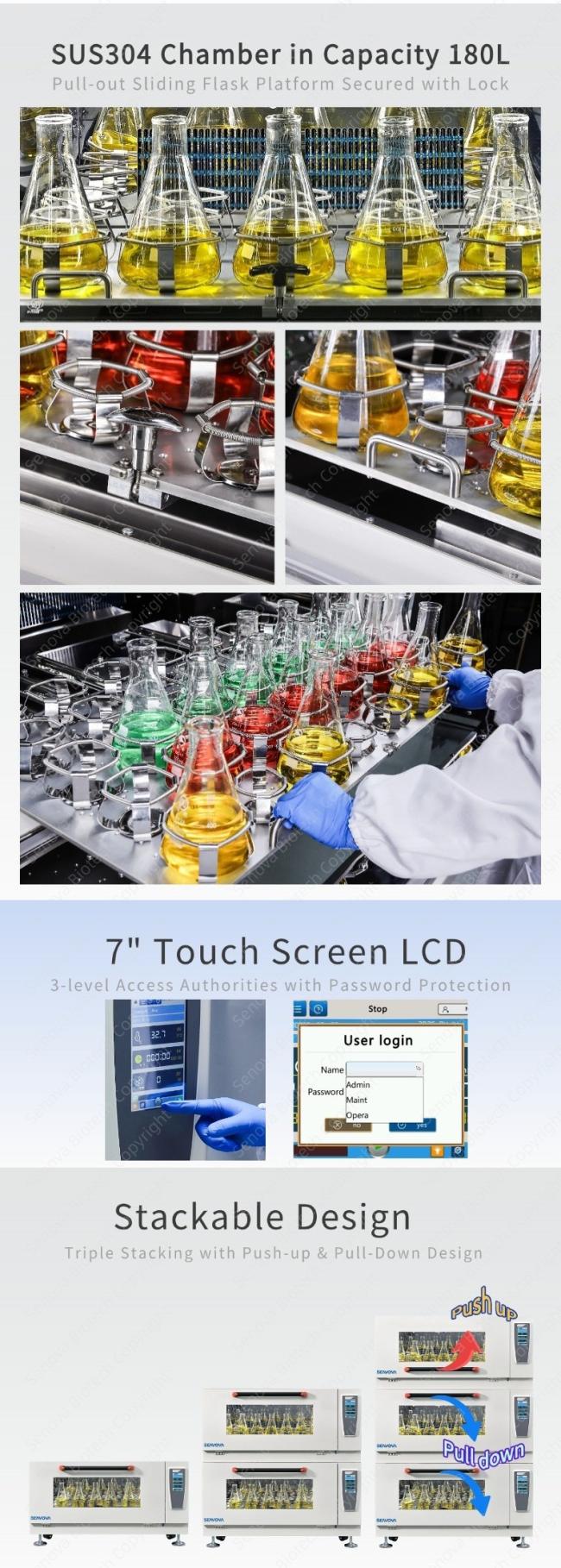

- Stable Growth Environment: Precise P.I.D. control via the 7" touch screen maintains accurate, stable temperature conditions.

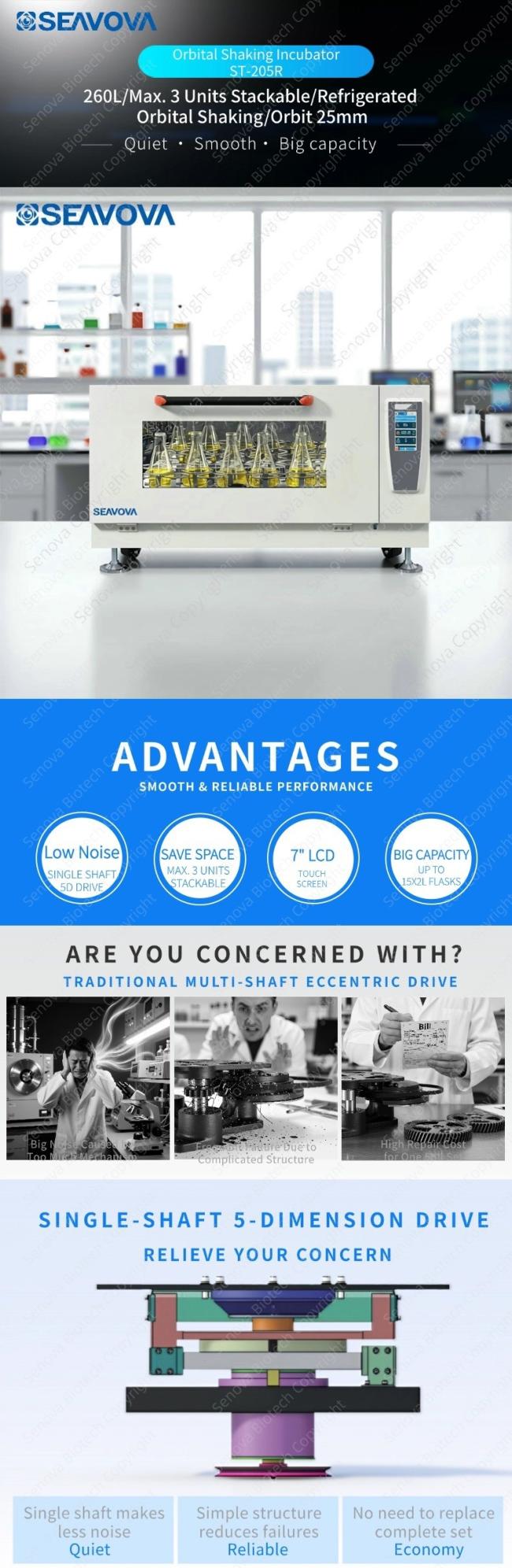

- Consistent Mechanical Motion: The combination of 5-dimensions drive technology and a constant-torque brushless motor ensures uniform, reproducible shaking.
- Contamination Control: The easy-to-clean stainless steel chamber, with optional UV lamp, supports a sterile workspace.
- Protocol Integrity Assurance: Power-failure recovery function ensures automatic continuation of experiments after unexpected power loss.
- Data Integrity Features: USB data export and optional thermal printer provide records for validation and traceability.

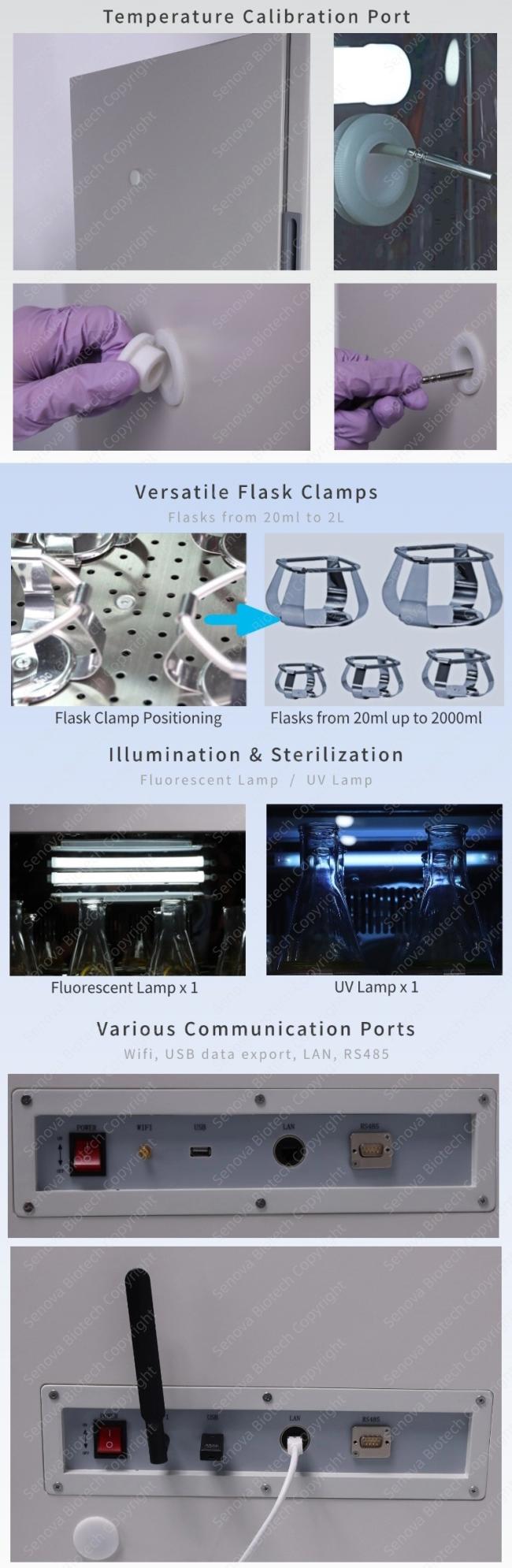

- Calibration for Accuracy: Regular temperature and speed calibration ensures the incubator's output matches setpoints precisely.
- Secure Parameter Setting: Parameter memory prevents accidental changes, ensuring protocol consistency across repeated runs.

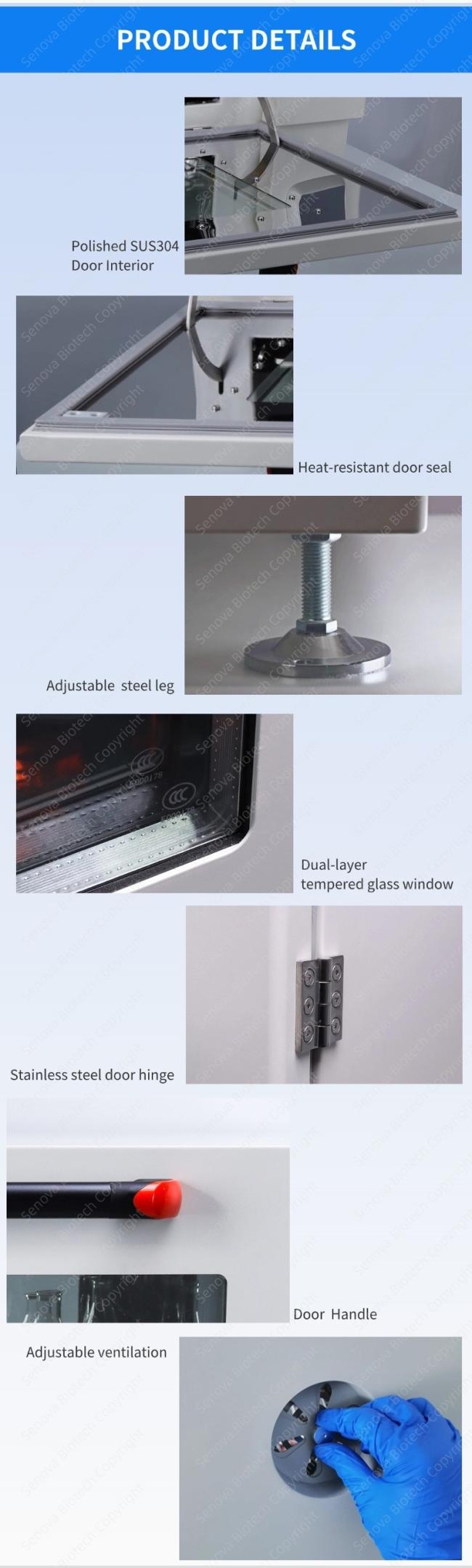

- Visible Monitoring: The large window and internal illumination allow visual confirmation of sample condition without opening the door.
- Reliable Core Components: The maintenance-free motor and durable drive system minimize the risk of mechanical failure.
- Adaptable for Sensitive Samples: Optional humidity control (on refrigerated models) and gentle platform options (spring, sticky pad) cater to delicate applications.

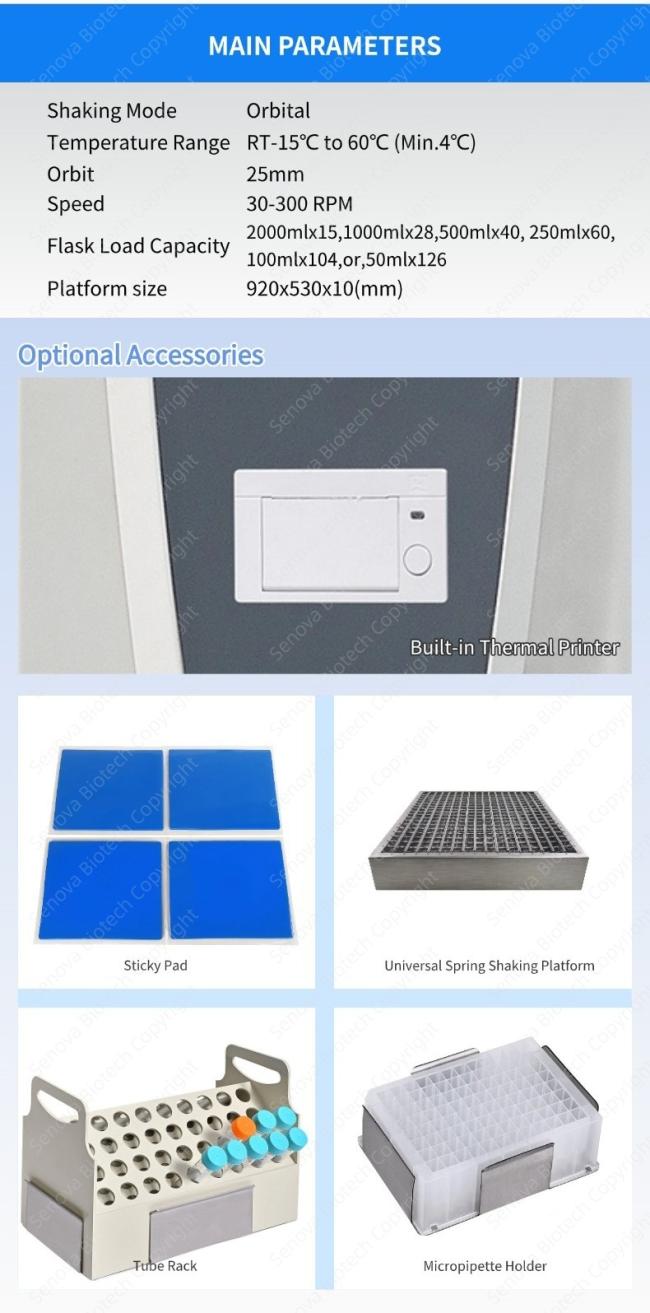

| Model | ST-205R |
| Temp. Control Range | RT-18℃ to 60℃ (Min.4℃) |
| Environment Temp. | 15℃-35℃ |
| Control | P.I.D. |
| Display | 7" LCD with touch screen |
| Thermal Printer | Optional |
| USB Interface | Included |
| Convection Mode | Forced Convection |
| Shaking Mode(Standard) | Orbital |
| Shaking Mode(Optional) | Linear |
| Drive | Single-shaft balance device |
| Temp. Resolution | 0.1℃ |
| Temp. Accuracy | ±0.1℃ |
| Temp. Uniformity | <±0.5℃ (at 37℃) |
| Speed Range | 30-300rpm |
| Speed Accuracy | ±1rpm |
| Standard Orbit(mm) | Φ25 |
| Optional Orbit(mm) | / |
| Refrigerant | R134a,CFC-Free |
| Timing Range | 0-9999 hr/0-9999 min |
| Platform Size | 920x530x10(mm) |
| Flask Capacity | 2000mlx15,1000mlx28 500mlx40, 250mlx60, 100mlx104,or,50mlx126 |
| Flask Platform Qty.(PC) | 1 |
| N.W. /G.W. (Kg,single Unit) | 354/429 |
| Chamber Dimensions | 1120x595x430(WxDxH,mm) |
| Capacity(L) | 260 |
| Overall Dimensions (without casters) | 1410x790x660(WxDxH,mm) |
| Packing Size(LxWxH,cm) | 154x98x92 |
| Power | 1200W |
| Power Supply | AC 200∽240V 50-60HZ. Optional: AC110V/60Hz |
| Shaking Platform Material | Aluminum Alloy |
| Chamber Material | SUS304 |
| Exterior Material | Mild steel with powder coating |
The laboratory shaker is a versatile instrument for agitating samples in flasks and tubes, in benchtop/floor models. It uses defined motions, primarily orbital, to achieve solution homogeneity, promote gas exchange, and ensure identical sample treatment—foundational for experimental consistency.
It reliably replicates motion parameters, creating uniform microenvironments. Specializations: orbital (general), rocking (delicate), incubator (thermal/mechanical control). Digital tech enables precise command over speed/duration, with programmable memory for workflow streamlining.
Applications: propagating bacterial cultures, mixing assay components, adhesion testing. Features: high-torque motor, easily cleaned platform, low-EMI design for use near sensitive electronics.
