Single Beam UV Vis Visible Spectrophotometer UA-100C with 4nm Bandwidth and 190-1100nm Wavelength
Price:
Available upon request
MOQ:
1
Delivery Time:
10-20 working days
Brand:
SENOVA (SEAVOVA)
Product Description

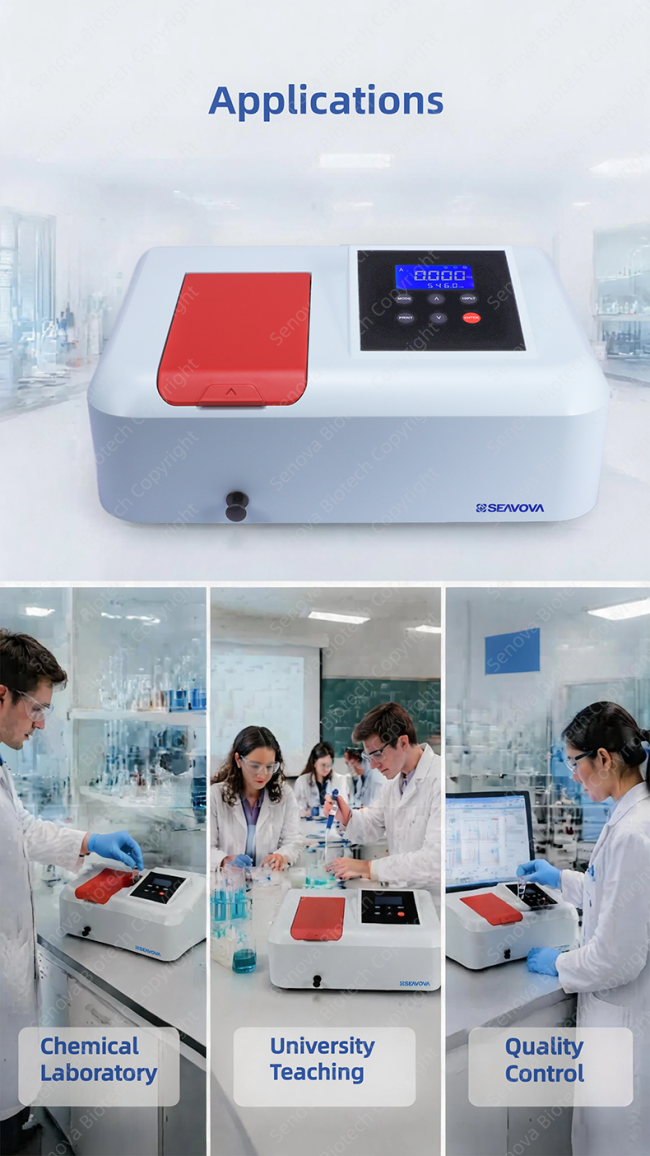

Single Beam UV Visible Spectrophotometer UA-100C with 4nm Bandwidth and 190-1100nm Wavelength
Main features:
- Vibrant Visual Interface: Features a high-contrast 3.4" backlit LCD screen for effortless navigation and data visibility.
- Instant Result Visualization: Provides immediate readouts for concentration levels, transmittance percentages, and absorbance values.
- Precision-Engineered Calibration: Increases data reliability through automated zero-point (0%T) and full-scale (100%T) sensitivity balancing.
- Automated Spectral Tuning: Eliminates human error during setup by automatically calibrating wavelengths at 0.5nm increments.
- Advanced Optical Alignment: Utilizes a smart light-seeking system for visible spectrum transitions, ensuring performance remains stable after shipping or bulb replacement.
- Dual-Lamp Configuration: Powered by high-quality Deuterium and Tungsten sources to cover the full UV-Vis range.
- Versatile Connectivity Ports: Supports various data management workflows via integrated printing, direct USB storage, or external PC software interfaces.
- Adaptable Power Architecture: Offers flexible energy solutions ranging from AC90-250V/50-60Hz to portable lithium packs or automotive power adapters.
- Standard configuration: Spectrophotometer x1, 10-50mm 4-position adjustable holder x1,Power Cordx 1, dust cover x1, 1cm glass cuvette x4
- Optional accessory: Printer
Specifications:
|
Model |
UA-100C |
|
Optical System |
Single beamwith 1200-line/mm grating |
|
Wavelength range(nm) |
190-1100 |
|
Spectral Bandwidth(nm) |
4 |
|
Wavelength Accuracy(nm) |
±1 |
|
Wavelength Repeatability(nm) |
≤0.5 |
|
Transmittance Accuracy(%T) |
≤0.5 |
|
Transmittance Repeatability(nm) |
≤0.2 |
|
Stray Light(%T) |
≤0.2 @360nm@220nm |
|
Spectral Range |
0-200%T,-3.010~3A,0-9999C(0-9999F) |
|
Light Source |
Tungsten & Deuterium |
|
Display |
LCD mono colour with back light (80x52mm) |
|
Data Output |
Flask Disk, Built-in printer, USB port |
|
Dimensions (WxDxH,mm) |
460x310x210 |
|
Weight(Kg) |
8 |
|
Power Supply |
AC90-250V/50-60Hz |
|
Packing Size(LxWxH,cm) |
58x43x30 |
|
G.W. (Kg) |
12 |
