Bluesun HJT Manufacture Bifacial Shingled Solar Power Panel 700W 690W 680W 675Watt Mono Home Use 1000w Solar Panel Complete Kit
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Why Choose Bluesun
We have local warehouse in California USA, Rotterdam and Koper in EU.
Certificate
Projects
Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.
Configuration：425W Solar Panel EU Stock
Installation site：Croatia
Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel
Installation site：U.K.
Configuration：440W Black Frame Shingled Solar Panel
Installation site：Sweden Gothenburg

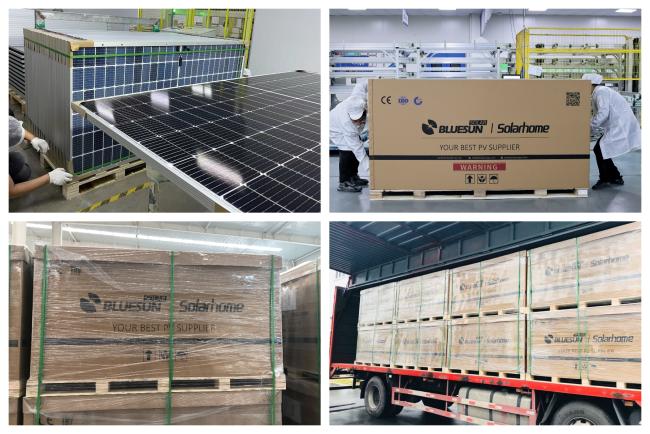

Packing & Delivery
Products Description
SPECIFICATIONS | ||||||||||||
Module Type | BSM675PMB6-70SDC | BSM680PMB6-70SDC | BSM685PMB6-70SDC | BSM690PMB6-70SDC | BSM695PMB6-70SDC | BSM700PMB6-70SDC | ||||||
STC | STC | STC | STC | STC | STC | |||||||
Maximum Power (Pmax/W) | 675 | 680 | 685 | 690 | 695 | 700 | ||||||
Operating Voltage (Vmp/V) | 39.20 | 39.30 | 39.40 | 39.50 | 39.60 | 39.60 | ||||||
Operating Current (Imp/A) | 17.23 | 17.32 | 17.41 | 17.49 | 17.57 | 17.68 | ||||||
Open-Circuit Voltage (Voc/V) | 47.20 | 47.30 | 47.40 | 47.50 | 47.60 | 47.70 | ||||||
Short-Circuit Current (Isc/A) | 18.32 | 18.41 | 18.50 | 18.59 | 18.68 | 18.80 | ||||||
Module Efficiency (%) | 21.90 | 22.10 | 22.30 | 22.50 | 22.60 | 22.81 | ||||||
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5 | ||||||||||||
Electrical characteristics with different rear side power gain(refer to700W front) | ||||||||||
Pmax gain | Pmax/W | Vmpp/V | Impp/A | Voc/V | Isc/A | |||||
5% | 735 | 39.6 | 18.56 | 47.7 | 19.74 | |||||
10% | 770 | 39.6 | 19.45 | 47.7 | 20.68 | |||||
15% | 805 | 39.6 | 20.33 | 47.7 | 21.62 | |||||
20% | 840 | 39.6 | 21.22 | 47.8 | 22.56 | |||||
25% | 875 | 39.6 | 22.10 | 47.8 | 23.50 | |||||
Advantages Of Shingled Panel
* When the shingled module is installed vertically and the single cell string is shaded, the output power of the shingled module can reach 86.65% of the normal operation. That's 35% more power than the half-cell module.
