> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

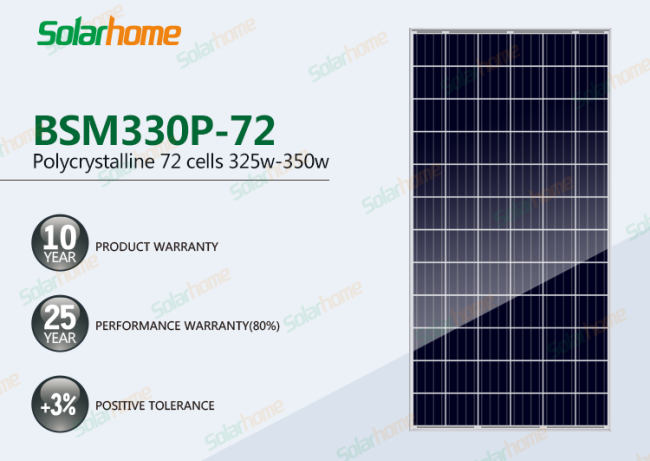

Cigs Solar Panel 330w Pv Module 340wp 350watts Hot Sale Best Price for Solar Home System
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Moduel | BSM325P-72 | BSM330P-72 | BSM335P-72 | BSM340P-72 | BSM350P-72 | ||||
Rated Maximum Power at STC | 325W | 330W | 335W | 340W | 350W | ||||
Open CircuitVoltage(Voc/V) | 46.0 | 46.1 | 46.3 | 46.5 | 46.9 | ||||
Maximum Power Voltage(Vmp/V) | 37.17 | 37.6 | 37.9 | 38.2 | 38.5 | ||||
Short Circuit Current(Isc/A) | 9.05 | 9.28 | 9.36 | 9.45 | 9.6 | ||||
Maximum Power Current(Imp/A) | 8.74 | 8.78 | 8.84 | 8.9 | 9.09 | ||||
Module Efficiency(%) | 16.77 | 17.00 | 17.3 | 17.5 | 18.0 | ||||
Power Tolerance | -0~+5W | ||||||||
Standard Test Condition(STC) | Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 | ||||||||
Detailed
Glass
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life

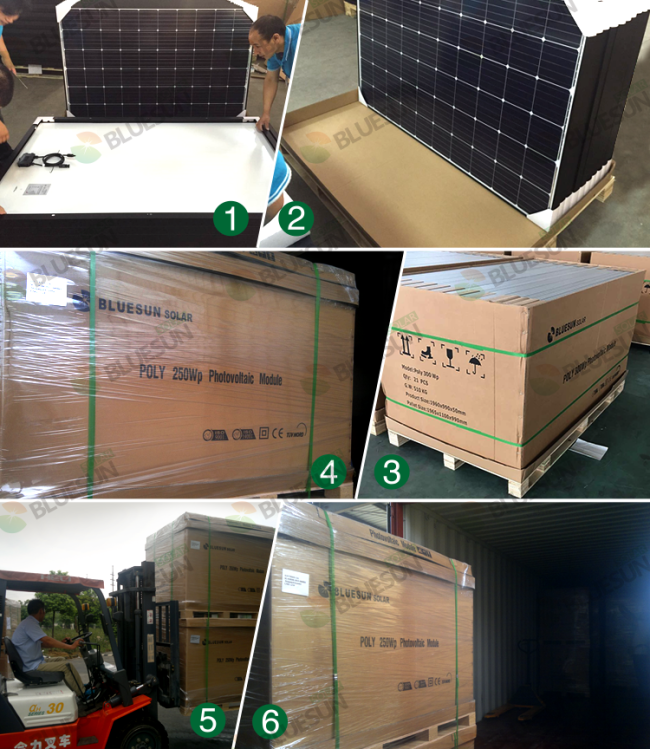

Packing & Delivery
By Sea | Delivery from Shanghai or Ningbo seaport | ||||
By Air | Departure from Shanghai Pudong Airport | ||||
By Express | By TNT/DHL | ||||

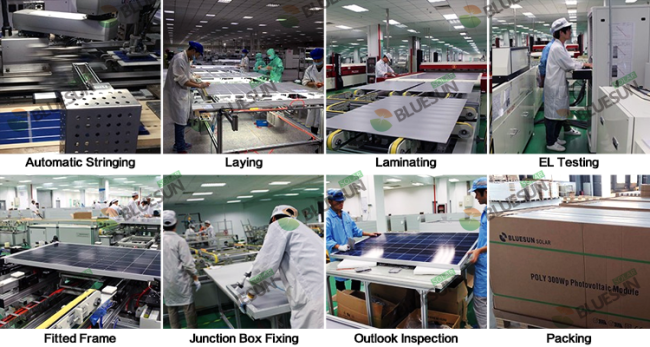

Our Company
History .
From 1983, first for silicon business , 2004 beginning produce solar cell ,solar panel . capacity 50MW per year
Capacity .
Full automatic production line ,all machine import from Germany . now capacity 500MW per year
International .
400MW export to more than 80 counties , EPC company in Germany ,Italy ,USA and Canada ,
World Partner.
More than 20 famous international famous company partner in the world , solar city,Solar world ,Q-Cell ,Tesla ...
Office&Warehouse.
more than 4 office in the world ,Germany ,USA ,Brasil ,Canada,Ukraine
Los Angeles& Rotterdam warehouse
Service .
100 international sales, English,Spain,France Language . we support all time all language service.
