High Power Bluesun Perc Mono Solar Panel Perc Half Cut Solar Panels 24 Volt 144cell
1.Higher Yield Due to Better Shading Response
Half Cell Module comprises two separated and identical solalr cell arrays, which means the ordinary strings of cells are cut into halves, and these shorter strings compose which has separated current paths. When a module is shaded, only one side shaded array's current will be impacted, while the other array will still be functionally producing power. Under this circumstance, when a module is shaded, the affected working areas of Blade will be 50% less.
By cutting solar cell into halves, the internal power loss will be lower and hot spot effect will also be reduced.

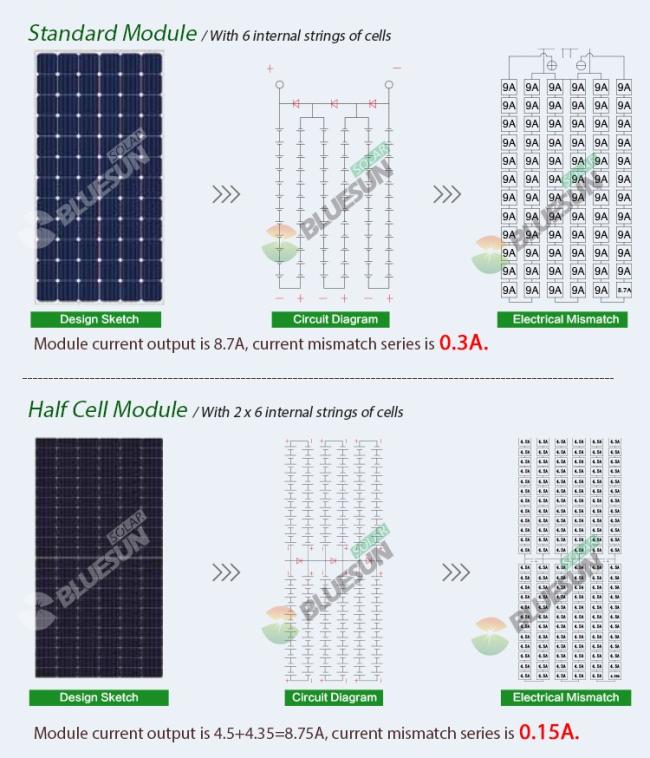

2.Less Mismatch Loss
Instead of 6 internal strings of cells, half cell module has 2*6 shorter ones. This design effectively deals with the mismatch happened between cells caused by shadow, out of sync performance degradation, etc.
Half Cell Module Electrical Parameters At STC | ||||||||||
Model | BSM375M-HC | BSM380M-HC | BSM390M-HC | BSM400M-HC | BSM410M-HC | |||||
Nominal Power | 375W | 380W | 390W | 400W | 410W | |||||
Open-circuit Voltage | 48.4V | 48.6V | 49V | 49.24V | 50.12V | |||||
Short-circuit Current | 10.17A | 10.26A | 10.44A | 10.57A | 11.14A | |||||
Maximum Power Voltage | 40.2V | 40.4V | 40.8V | 41.17V | 41.76V | |||||
Maximum Power current | 9.34A | 9.42A | 9.57A | 9.72A | 9.82V | |||||
Module Efficiency | 19.02% | 19.28% | 19.79% | 20.61% | 21.13% | |||||
Power Tolerance | 0~+5W | |||||||||
Maximum System Voltage | 1000V / 1500V DC(IEC) | |||||||||
Maximum Series Fuse Rating | 15A | |||||||||
Operating Temperature | -40 ℃ to +85 ℃ | |||||||||
Irradiance 1000W/m²,module temperature 25, AM=1.5 | ||||||||||
(60cells )Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 30 | 30 | 30 |
Pallets/Container | 14 | 28 | 28 |
Pcs/Container | 400 | 840 | 924 |
(72 cells )Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 27 | 26 | 27 |
Pallets/Container | 10 | 22 | 24 |
Pcs/Container | 270 | 572 | 696 |
T/T | EXW | 30% T/T in advance, paid the balance before shipment | |||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Paypal | |||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
