Bluesun 12v-100ah Home Battery Storage System Lifepo4 Solar Lithium Ion Stackable with Smart BMS & CAN Communication Port
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Products Description
Product Parameters
MODEL | BST-5.0LV | BST-10.0LV | BST-15.0LV | BST-20.0LV | BST-25.0LV | BST-30.0LV | ||||||
Battery Type | LiFeP04(LFP) | |||||||||||
Nominal Voltage(V) | 51.2V | |||||||||||
Nominal Capacity(KWH) | 5.42KWH | 10.85KWH | 16.28KWH | 21.7KWH | 27.13KWH | 32.56KWH | ||||||
Usable Capacity(KWH) | 4.87KWH | 9.76KWH | 14.65KWH | 19.53KWH | 24.41 KWH | 29.30KWH | ||||||
Design Life | 10+Years （25 ℃/77F) | |||||||||||
Physical | ||||||||||||
Dimension(mm) | 600*400*385 | 600*400*534 | 600*400*683 | 600*400*832 | 600*400*981 | 600*400*1130 | ||||||
Weight (kg) | 80 | 125 | 170 | 215 | 260 | 305 | ||||||
ELECTRICAL | ||||||||||||
Cycle Life | >6000. 25°C | |||||||||||
Discharge Voltage(V) | 40-48 | |||||||||||
Charge Voltage(V) | 56 -58.4 | |||||||||||
Charge/Discharge Current(A) | 83 (Recommended) 100A(Max) | |||||||||||
Internal Resistance | ≤30mΩ | |||||||||||
BMS | ||||||||||||
Power Consumption | <2W (Work) < 100mW(Sleep) | |||||||||||
Monitoring Parameters | System voltage, current, cell voltage,cell temperature, module temperature | |||||||||||
SOC | Intelligent algorithm | |||||||||||
Communication | CAN/RS-485/RS-232 | |||||||||||
OPERATION | ||||||||||||
Operating Temperature Range | -10℃-50℃ | |||||||||||
Transport or Storage Temperate Range | -20℃-45℃ | |||||||||||
Humidity | 15% - 85% (No Condensing) | |||||||||||
WARRANTY | ||||||||||||
Product Warranty | 5 Years | |||||||||||
Performance Warranty | 10 Years | |||||||||||

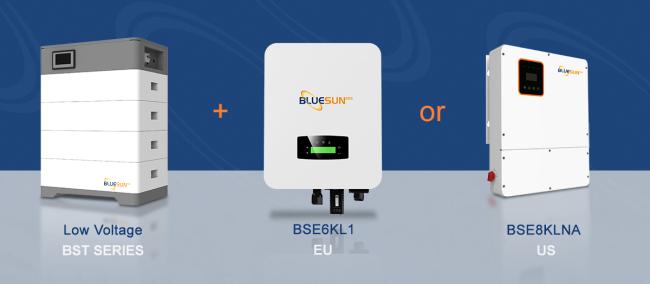

Matching inverter
High compatibility BMS, seamless communication with energy storage inverter

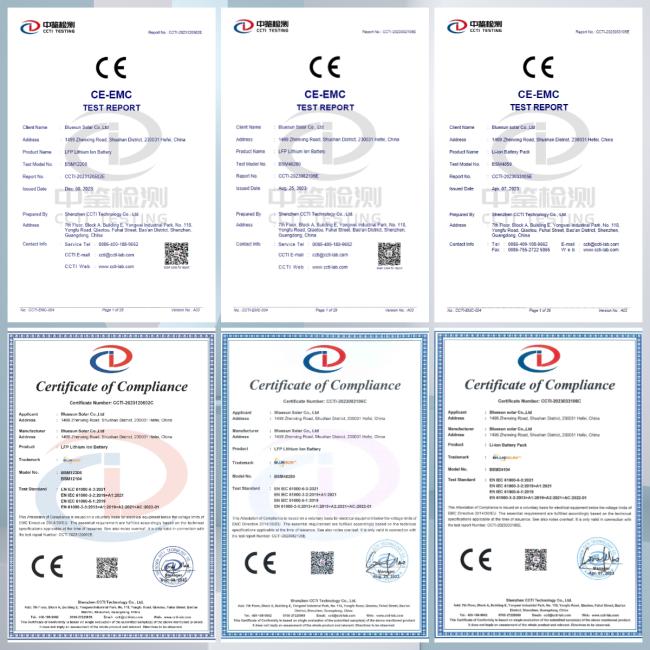

Certifications

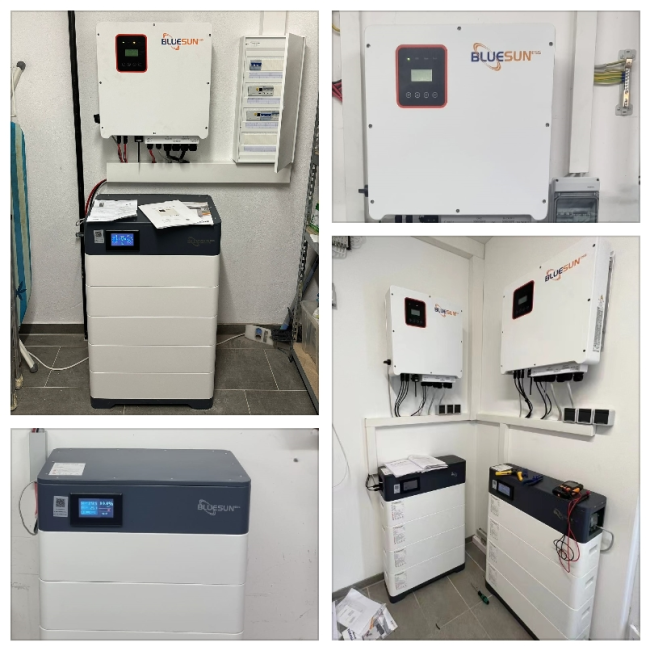

Projects
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
FAQS
1. who are we?
We are based in Anhui, China, start from 2020,sell to Eastern Asia(20.00%),North America(15.00%),Eastern Europe(10.00%),Southeast
Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Domestic Market(5.00%),Africa(0.00%),South Asia(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Solar Energy System/On Grid Inverter/Off Grid Inverter/Hybrid Solar Inverter/Lithium Solar Battery/Solar Panel/Hybrid Solar System
4. why should you buy from us not from other suppliers?
Bluesun Ess Co., Ltd. is a technology trade Internet company specializing in solar field, More than 10 years history,Export 400MW+ to over 150 countries annually, 3 Warehouses and 2 factories overseas,7 days 24 hours service,.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency: USD,EUR, JPY, CAD, AUD,HKD, GBP,CNY, CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian,Korean, Hindi, Italian
We are based in Anhui, China, start from 2020,sell to Eastern Asia(20.00%),North America(15.00%),Eastern Europe(10.00%),Southeast
Asia(10.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),Domestic Market(5.00%),Africa(0.00%),South Asia(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Solar Energy System/On Grid Inverter/Off Grid Inverter/Hybrid Solar Inverter/Lithium Solar Battery/Solar Panel/Hybrid Solar System
4. why should you buy from us not from other suppliers?
Bluesun Ess Co., Ltd. is a technology trade Internet company specializing in solar field, More than 10 years history,Export 400MW+ to over 150 countries annually, 3 Warehouses and 2 factories overseas,7 days 24 hours service,.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency: USD,EUR, JPY, CAD, AUD,HKD, GBP,CNY, CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English, Spanish, Japanese, Portuguese, German, Arabic, French, Russian,Korean, Hindi, Italian
