Bluesun Wholesale Hybrid Solar Inverter 6kw 10kw Mppt Solar Hybrid Inverter 48V for Home Use
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Bluesun
Product Description
Products Description
The Bluesun low voltage Series storage Inverters are designed to increase energy independence for home owners. Single Phase Hybrid Inverter, compatible with low voltage (40-60V) batteries.

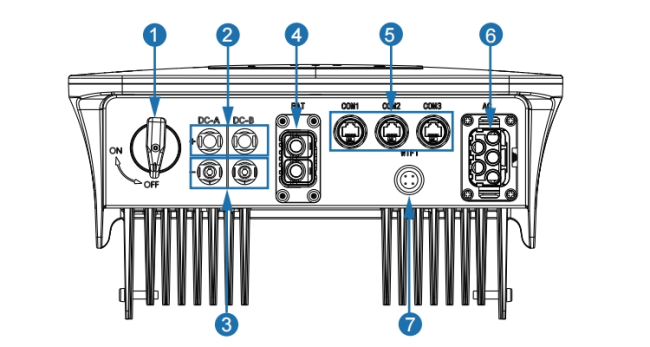

NO | Items |
1 | DC Switch |
2 | DC Connectors ( + ) For PV Strings |
3 | DC Connectors ( − ) For PV Strings |
4 | Battery Port |
5 | Communication Port |
6 | AC Port & EPS Port |
7 | Monitor Module Port |
Technical Specification
Model | BSE6KL1 | |
Dimensions (W x H x D, mm) | 370*513*192 | |
Weight (kg) | 17 | |
Topology | Transformerless | |
Cooling | Intelligent Fan | |
Relatively Humidity | 0 - 100 % | |
Operating Temperature Range (°C) | - 25 to 60 | |
Operating Altitude (m) | < 4000 | |
Noise Emission (dB) | - 25 | |
Standby Consumption (W) | < 10 | |
Mounting | Wall Bracket | |
Communication with RSD | SUNSPEC | |
Display & Communication Interfaces | LCD, LED,RS485,CAN,Wi-Fi,GPRS,4G | |
Certification & Approvals | NRS97, G98/G99, EN50549-1, C10/C11, AS 4777, VDE-AR-N4105, VDE0126, IEC62040, IEC62109-1, IEC62109-2 | |
EMC | EN61000-6-2,EN61000-6-3 | |
More Details Please Send Inquiry to Us | ||

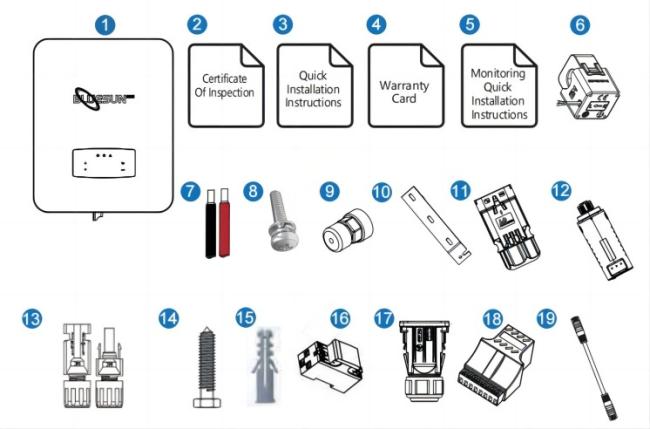

Packing List
No. | Items | Qty |
1 | Hybrid Inverter | 1 |
2 | Certificate Of Inspection | 1 |
3 | Quick Installation Instructions | 1 |
4 | Warranty Card | 1 |
5 | Monitoring Quick Installation Instructions | 1 |
6 | CT | 1 |
7 | Battery wire | 1 |
8 | Security Screw | 1 |
9 | Communication Connectors | 3 |
10 | Wall Mounting Bracket | 1 |
11 | Battery Connector | 1 |
12 | Monitor Module | 1 |
13 | DC Connector | 2 |
14 | Mounting Bracket Screw | 3 |
15 | Plastic Expansion Tube | 3 |
16 | Smart Meter (Opitional) | 1 |
17 | AC Waterproof Cover | 1 |
18 | Communication Adapter | 1 |
19 | Communication T568B | 2 |
