Bluesun Flexible Solar Power Panels 150w 160w 200w 12 Volt Flexible Solar Panels
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Bluesun
Product Description
Products Description

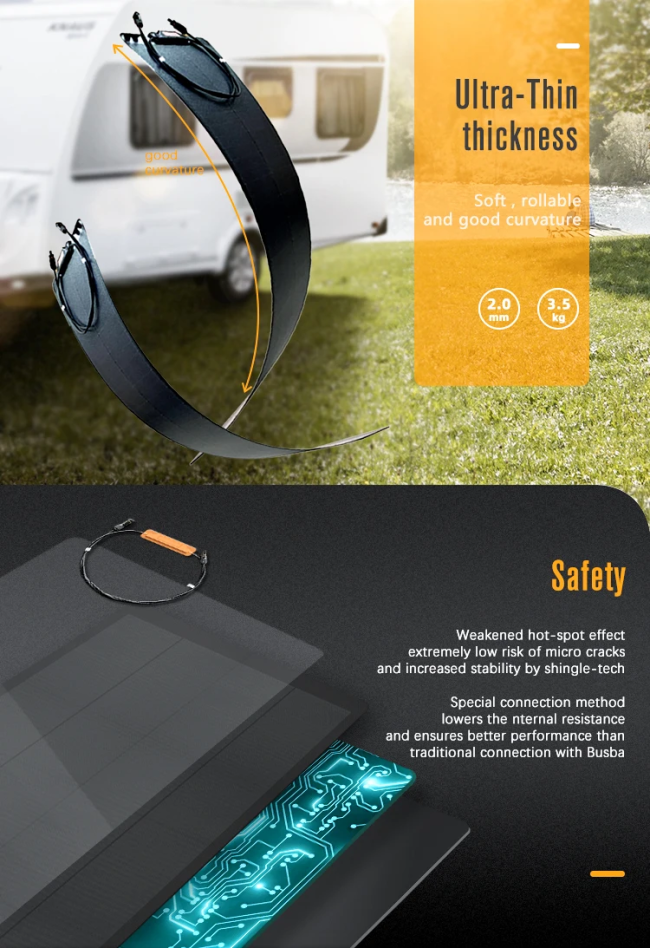

-Flexible Solar Panel as wafer thin, lightweight, and can mold to a curved surface-

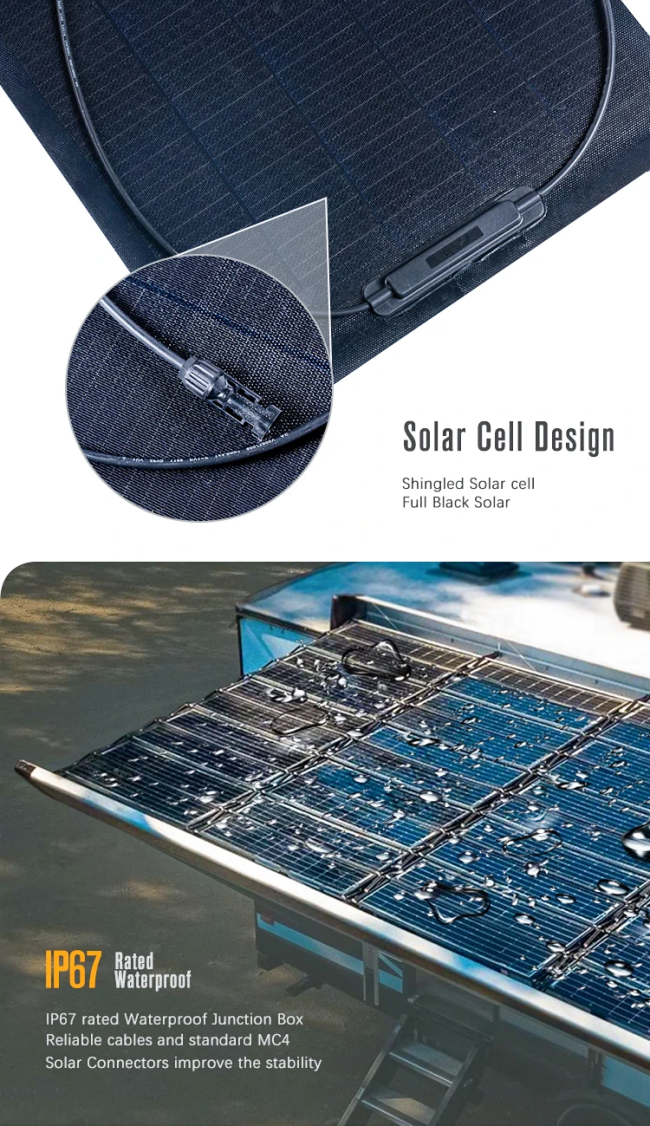

* Uses the highest efficiency mono-crystalline solar technology
* Ultra-light, waterproof, and corrosion resistant making them the perfect option for marine applications, RVs, camping and
emergency back-up charger
* Optional match charge controller required for safer battery charging.
Mechanical Data Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | ||
Nominal Power | 160W | |
Cell Type | ||
Module | 20.1% | |
Maximum Power Current (Impp) | 7.23A | |
Maximum Power Voltage (Vmpp) | 22.12V | |
Open-circuit Voltage (Voc) | 26.29V | |
Short-circuit Current (Isc) | 7..67A | |
Maximum System Voltage | 100V | |
Output Tolerance | +3% | |
Cable | 900mm /2.5mm2 | |
Connector Type | MC4 / MC4 Compatible | |
Module Structure | CPC/ EVA / Backsheet | |
Junction box rating | ≥IP67 | |
Number of Diodes | One | |
Working Temperature | -20℃~+65℃ | |
Packaging | ||
Module Dimensions | 1170*680*2mm | |
Module Weight | 2.9kg | |
Package | Single Package | |
Pieces per Pallet | 60 | |
Gross Weight per Pallet | 302kg | |
Pallet Dimensions | 1200*1000*1530mm | |
Feature Display
Application Scenario
Our Advantages
Our Company
Bluesun Solar---is one of the solar power solution leading companies in China. Specializing in research and development of solar panel, lithium battery and BMS. Bluesun product has exported to more than 185 countries and regions since 2022. We devote ourselves to provide excellent solar solution.
Our Exhibitions
2023 INTER SOLAR NORTH AMERICA
.
2023 SOLARTECH COLOMBIA
SOLAR SOLUTIONS INT AMSTERDAM
.
2023 SOLARTECH INDONESIA
2023 INTERSOLAR MEXICO
SOLAR & STORAGE LIVE UK 2023
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||||||||
FOB | |||||||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||||||||
CIF | |||||||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||||||||
West Union | Amount lower than 5000usd | ||||||||||
West Union | |||||||||||
Delivery Time | 7~10days after receiving payment for one container | ||||||||||
