Bluesun Bifacial Half Cells 210mm Panel Solar 545w 550w 555w Panel Solar Panels 48v 550watt with High Efficiency
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Products Description

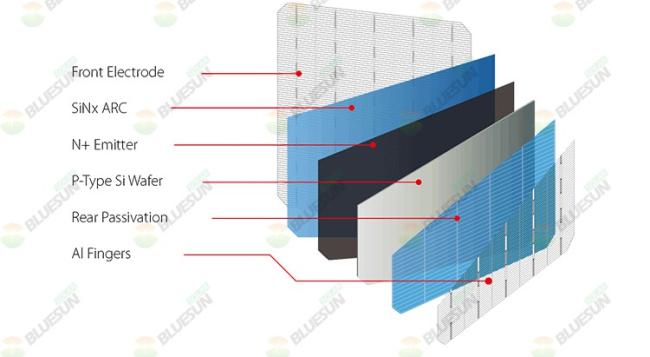

Bifacial PERC

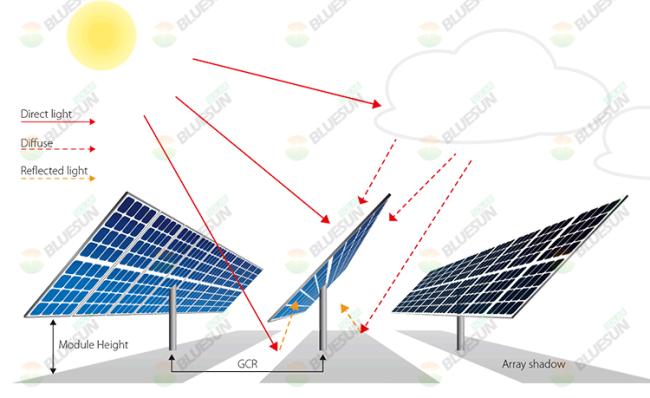

For a bifacial PERC cell, the Al back surface field is replaced by Al grid, hence render the majority of rear side transparent which enable the cell to absorb light and generate electricity from both sides.
ELECTRICAL PARAMETERS | ||||||||||
TYPE | BSM530M-72HBD | BSM535M-72HBD | BSM540M-72HBD | BSM545M-72HBD | BSM550M-72HBD | |||||
Rated Maximum Power(Pmax) [W] | 530 | 535 | 540 | 545 | 550 | |||||
Open Circuit Voltage(Voc) [V] | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | |||||
Maximum Power Voltage(Vmp) [V] | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | |||||
Short Circuit Current(lsc) [A] | 18.19 | 18.24 | 18.30 | 18.35 | 18.39 | |||||
Maximum Power Current(lmp) [A] | 17.11 | 17.16 | 17.21 | 17.24 | 17.29 | |||||
Module Efficiency [%] | 20.3 | 20.5 | 20.7 | 20.9 | 21.0 | |||||
Power Tolerance | 0 ~ +5 | |||||||||
Temperature Coefficient of Isc(α-jsc) | 0.04%/°C | |||||||||
Temperature Coefficient of Voc(β_Voc) | -0.25%/°C | |||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.34%/°C | |||||||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5G | |||||||||
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer.They only serve for comparison among different module types.
ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN | ||||||||||
Backside Power Gain | 10% | 10% | 10% | 10% | 10% | |||||
Rated Max Power(Pmax) [W] | 567 | 573 | 578 | 583 | 589 | |||||
Open Circuit Voltage(Voc) [V] | 37.3 | 37.5 | 37.7 | 37.9 | 38.1 | |||||
Max Power Voltage(Vmp) [V] | 31.0 | 31.2 | 31.4 | 31.6 | 31.8 | |||||
Short Circuit Current(lsc) [A] | 18.31 | 18.36 | 18.41 | 18.45 | 18.50 | |||||
Max Power Current(lmp) [A] | 19.46 | 19.52 | 19.58 | 19.63 | 19.68 | |||||

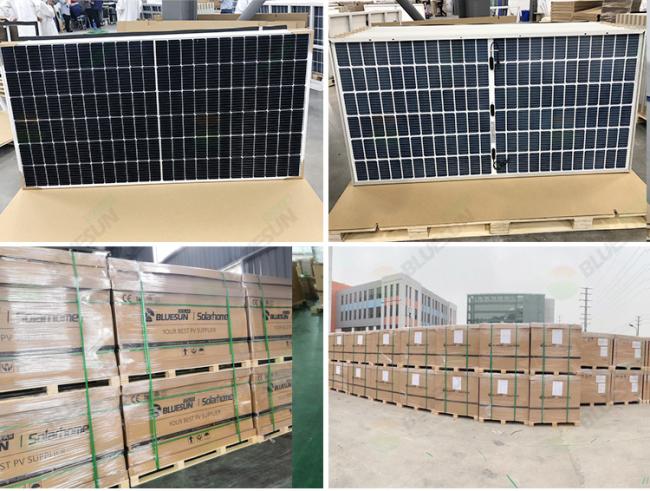

Packing & Delivery
Certifications
Our Company
Bluesun Solar Co., Ltd. is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
Feedback from our customers，if you want to know more information,please feel free to contact us,thanks!
Global Exhibition
Projects
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CNF | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
