ISO17357 Hydro Pneumatic Fender 1m-9m Yokohama Rubber Fender With Chain Net

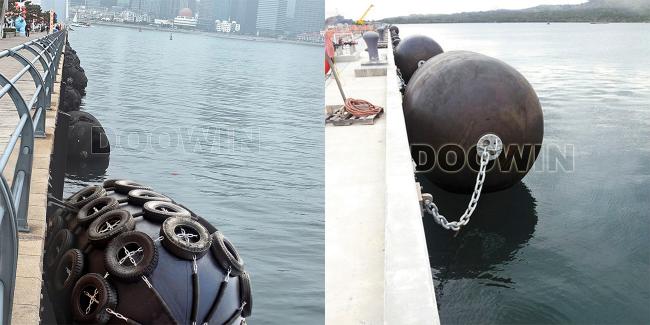

Floating pneumatic rubber fenders, also known as Yokohama fenders or Yokohama-type pneumatic fenders, are constructed from synthetic-cord-reinforced rubber sheets with compressed air inside. The internal air enables flotation on water and serves as a shock absorber between ships (ship-to-ship) or between ships and berthing structures. All Doowin Marine Yokohama-type floating pneumatic rubber fenders are manufactured and tested in full compliance with ISO 17357.

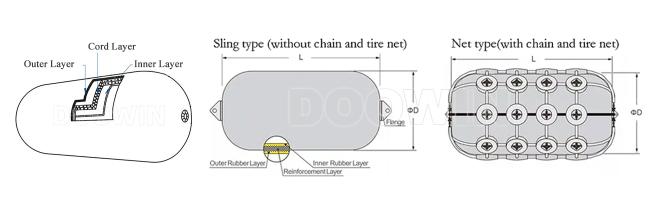

Our Pneumatic Rubber Fenders are available in two common types:

• Type I - Net Type: Covered with a chain net, wire net, or fiber net for small size fenders
• Type II - Sling Type: Features a lifting device on each end for connection with guy chains or ropes. Lightweight and easy to handle without a protection net

Floating pneumatic rubber fenders consist of an outer rubber layer, reinforcement synthetic-tire-cord layer, and inner rubber, all vulcanized firmly together.

• Outer Rubber Layer: Provides superior protection for cord layers and inner rubber, with compounds offering excellent tensile and tear resistance for harsh weather conditions.
• High Quality Synthetic-Tyre-Cord Layer: Maintains internal air pressure while the inner rubber layer seals the pressurized air.
• Safety Valve: Standard on fenders ≥2500mm diameter (optional for smaller sizes) to release excess internal pressure.

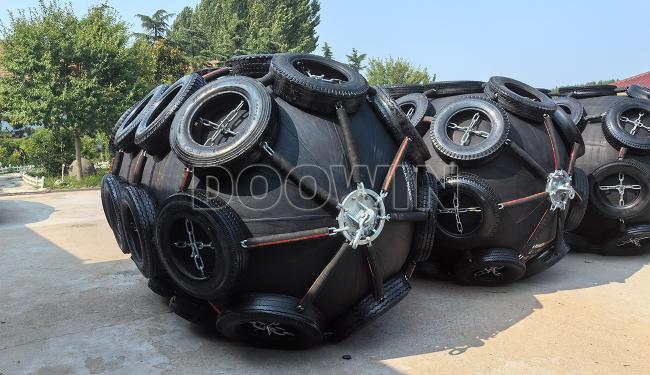

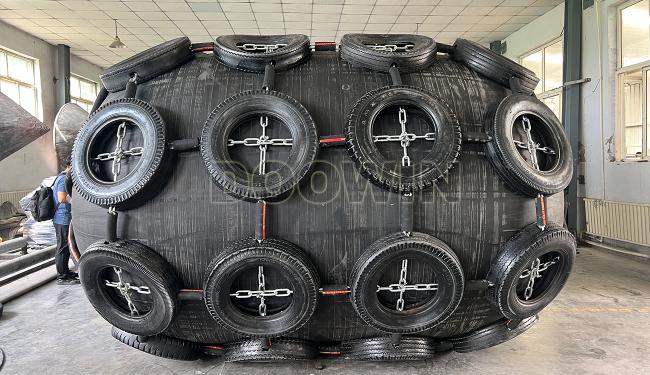

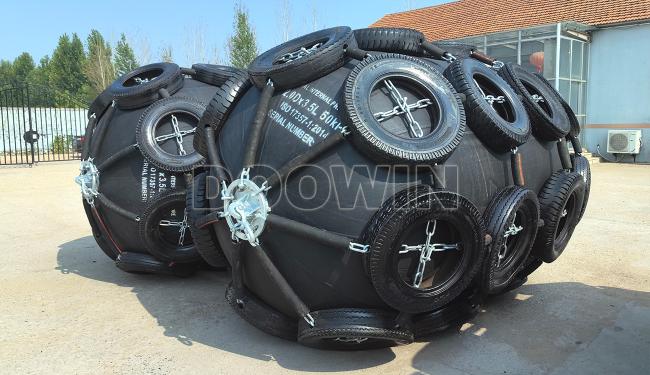

• Chain and Tire Net Protection: External chain and tire net (using truck, fiber, or aircraft tires) provide additional protection with easy replacement.

All materials comply with ISO 17357:2014 standards. Contact us for detailed outer and inner rubber material properties.

• ISO 17357-1:2014 Ships and marine technology - Floating pneumatic rubber fenders - Part 1: High pressure
• ISO 17357-2:2014 Ships and marine technology - Floating pneumatic rubber fenders - Part 2: Low pressure
•

Doowin-Marine pneumatic rubber fenders are manufactured and tested to comply with ISO 17357 using Korean production technology.

1. ISO 17357 Compliance: Manufactured and tested to comply with the latest ISO standards.
2. Soft Reaction Force: Gradual force increase protects ships and mooring facilities even under excess load.
3. 15° Inclined Berthing: Maintains energy absorption efficiency at angles up to 15 degrees.
4. Shear Force Resistance: Reinforced with strong tire-cord to withstand combined shearing forces.
5. Reduced Mooring Forces: Protects ships and facilities in rough weather conditions.
6. Tide Adaptability: Floats freely to accommodate tidal range and ship movement.
7. Cost-Effective Installation: Simple mooring with guy ropes/chains and easy relocation.
8. Low Maintenance: Minimal air leakage requires only annual pressure checks.
9. Shipping Efficiency: Ships compactly in vacuumed, folded state via containers or pallets.
