ISO17357 Hydro Pneumatic Marine Fender 0.5m- 4.5m With Chain Tyre Net
Price:
USD$ 150~ 8600
MOQ:
1pc
Delivery Time:
2~3 weeks
Brand:
DOOWIN MARINE
Product Description
ISO17357 Hydro Pneumatic Boat Fenders Marine Fender With Chain Tyre Net
Floating pneumatic rubber fenders, also known as Yokohama fenders, are constructed from synthetic-cord-reinforced rubber sheets with compressed air inside. The internal air enables flotation on water and serves as a shock absorber between ships (ship-to-ship) or between ships and berthing structures. All Doowin Marine Yokohama-type floating pneumatic rubber fenders are manufactured and tested in full compliance with ISO 17357 standards.
Pneumatic Fender Types

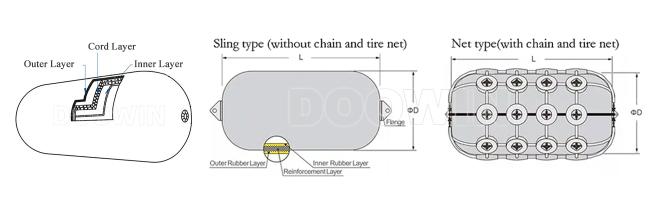

There are two common types of our Pneumatic Rubber Fenders:

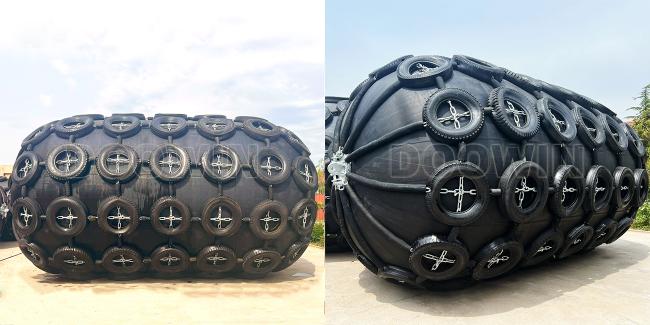

- Type I - Net Type: Covered with a chain net, wire net, or fiber net for small size fenders
- Type II - Sling Type: Features lifting devices on each end for connection with guy chains or ropes. Without protection net, lightweight and easy to handle
Pneumatic Fender Construction
Floating pneumatic rubber fenders consist of an outer rubber layer, reinforcement synthetic-tire-cord layer, and inner rubber, all vulcanized firmly together.
- Outer Rubber Layer: Provides superior protection for cord layers and inner rubber. The rubber compound offers excellent tensile and tear resistance to withstand harsh weather conditions and heavy usage.
- High Quality Synthetic-Tyre-Cord Layer: Maintains internal air pressure while the inner rubber layer seals the pressurized air inside the fender.
- Safety Valve: Fenders with diameter ≥2500mm include a safety valve for pressure release. Available for smaller fenders upon request.

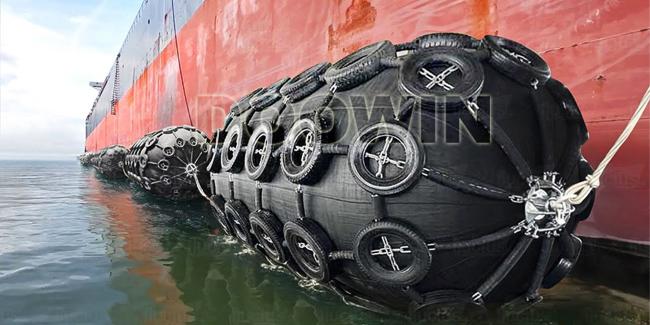

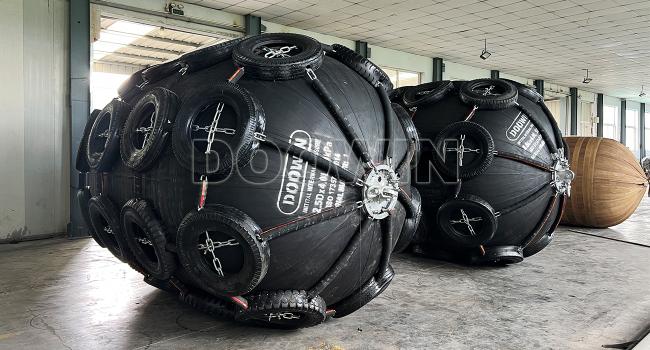

- Chain and Tire Net Protection: External chain and tire net provide additional protection for the rubber fender body. Customizable with truck tires, fiber nets, or aircraft tires.
![]()
All materials comply with ISO 17357:2014 standards for floating pneumatic rubber fenders. Contact us for detailed specifications of outer and inner rubber materials.
- ISO 17357-1:2014 Ships and marine technology -- Floating pneumatic rubber fenders -- Part 1: High pressure
- ISO 17357-2:2014 Ships and marine technology -- Floating pneumatic rubber fenders -- Part 2: Low pressure
Pneumatic Rubber Fenders Specifications
| Pneumatic Fenders Item | Pneumatic Rubber Fenders Parameter |
|---|---|
| Fender Diameter | 0.5 ~ 4.5m |
| Fender Length | 1.0 ~ 9m |
| Initial Pressure | 50kPa and 80kPa |
| Fender Type | Sling type, Net type, Hydro-pneumatic fender |
| Fender Standard | ISO 17357 : 2014 |
| Fender Application | Ship-to-ship, ship-to-port |
Performance Data
| D x L (mm) | P50 GEA (kNm) | P50 Reaction Force (kN) | P50 Hull Pressure (kN/m2) | P80 GEA (kNm) | P80 Reaction Force (kN) | P80 Reaction Force (kN/m2) |
|---|---|---|---|---|---|---|
| 500x1000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600x1000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 1000x1500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1000x2000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1200x2000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1350x2500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1500x3000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1700x3000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2000x3500 | 208 | 875 | 128 | 430 | 1150 | 168 |
| 2500x4000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2500x5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 179 |
Floating Pneumatic Rubber Fenders Advantages
Doowin-Marine pneumatic rubber fenders are manufactured and tested to comply with ISO 17357 standards, utilizing Korean production technology.
- ISO 17357 Compliance: All fenders meet the latest ISO 15375 standards.
- Soft Reaction Force: Gradual force increase protects ships and mooring facilities even under excess load.
- 15° Inclined Berthing: Maintains energy absorption efficiency at angles up to 15 degrees.
- Shear Force Resistance: Reinforced with strong tire-cord to withstand combined shearing forces.
- Reduced Mooring Forces: Provides safe protection in rough weather conditions.
- Tide Adaptability: Floats freely to accommodate tidal ranges and ship movements.
- Cost-Effective Installation: Simple mooring with guy ropes or chains, easily relocated.
- Low Maintenance: Minimal air leakage requires only annual pressure checks.
- Shipping Efficiency: Ships compactly in vacuumed, folded state in containers or on pallets.
![]()
