50kPa Pneumatic Rubber Fenders 3.3x6.5m 3015kN For Marine Berthing
| Attribute | Value |
|---|---|
| Name | Pneumatic Rubber Fender |
| Model | P50-3365 |
| Inflation Pressure | 50kPa |
| Reaction Force | 3,015 kN (at 60% Deflection) |
| Energy Absorption | 1,814 kJ (at 60% Deflection) |
| Installation Method | Chain and Tire Net |
| Warranty | 2 year |
| Application | Ship protection, dock protection |
| Material | Rubber |
| Type | Pneumatic |
| Working Temperature | -20°C to 80°C |
| Certificate | GSG, BV, etc. are all available |
| Pneumatic Fender body | 3.3x6.5m |

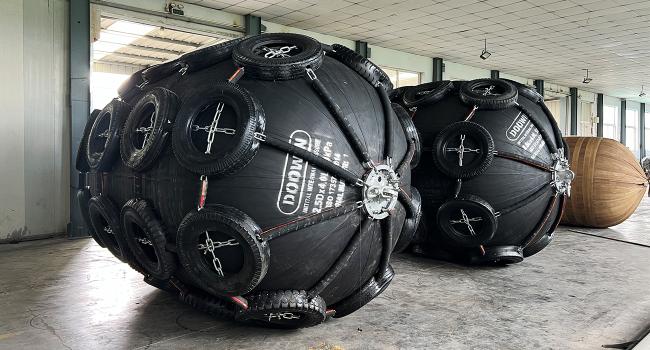

Floating pneumatic rubber fenders, also known as Yokohama fenders, are made of synthetic-cord-reinforced rubber sheet with compressed air inside. The internal air enables them to float on water and absorb shock between ships (ship-to-ship) or between ships and berthing structures. All Doowin Marine Yokohama-type floating pneumatic rubber fenders are manufactured and tested fully compliant with ISO 17357.
There are two common types of our Pneumatic Rubber Fenders:
- Type I - Net Type: Covered with a chain net, wire net, or fiber net for small size fenders
- Type II - Sling Type: Features lifting devices on each end for connection with guy chains or ropes, without protection net for easier handling
Floating pneumatic rubber fenders consist of an outer rubber layer, reinforcement synthetic-tire-cord layer, and inner rubber, all vulcanized firmly together.
- Outer Rubber Layer: Provides superior protection with high tensile and tear resistance to withstand weather conditions and severe usage
- High Quality Synthetic-tire-cord Layer: Maintains internal air pressure while the inner rubber layer seals the pressurized air
- Safety Valve: Standard on fenders ≥2500mm diameter (optional for smaller sizes) to release excess internal pressure
- Chain and Tire Net: External protection using truck tires, fiber net, or aircraft tires for enhanced durability
All materials comply with ISO 17357:2014 standards for floating pneumatic rubber fenders.
| Pneumatic Fenders Item | Pneumatic Rubber Fenders Parameter |
|---|---|
| Fender Diameter | 0.5 ~ 4.5m |
| Fender Length | 1.0 ~ 9m |
| Initial Pressure | 50kPa and 80kPa |
| Fender Type | Sling type, Net type, Hydro-pneumatic fender |
| Fender Standard | ISO 17357 : 2014 |
| Fender Application | Ship-to-ship, ship-to-port |
| D x L (mm) | P50 GEA (kNm) | P50 Reaction Force (kN) | P50 Hull Pressure (kN/m²) | P80 GEA (kNm) | P80 Reaction Force (kN) | P80 Reaction Force (kN/m²) |
|---|---|---|---|---|---|---|
| 500x1000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600x1000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 1000x1500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1000x2000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1200x2000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1350x2500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1500x3000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1700x3000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2000x3500 | 208 | 875 | 128 | 430 | 1150 | 168 |
| 2500x4000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2500x5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 179 |
- ISO 17357 Compliance: Manufactured and tested to meet international standards
- Controlled Reaction Force: Gradual force increase protects ships and mooring facilities
- 15° Inclined Berthing: Maintains energy absorption at angles up to 15 degrees
- Shear Resistance: Reinforced with strong tire-cord to withstand combined forces
- Tide Adaptation: Floats freely to accommodate tidal changes and ship movement
- Cost-Effective: Simple installation with guy ropes/chains and minimal maintenance
- Shipping Efficiency: Packed in vacuumed, folded state for container transport
