Weather Resistant Spherical Mooring Buoy 0.3m-1.9m Diameter With Polyethylene / EVA Foam Core

Price Negotiable

Price: USD$ 100~1900

MOQ: 1pc

Delivery Time: 2~3 weeks

Brand: DOOWIN MARINE

Product Description

Spherical Buoy - Resilient Closed Cell Polyethylene/EVA Foam Core Mooring Buoys

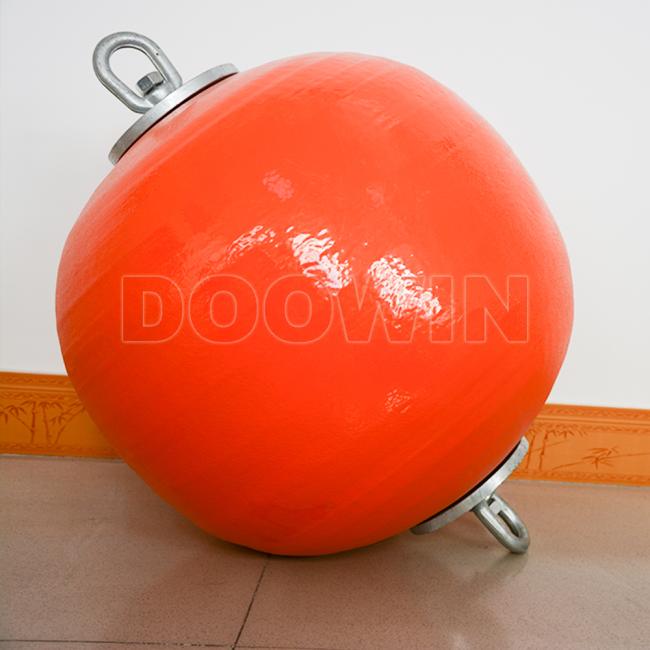

The spherical buoy is a representative pick-up buoy available in spherical or oval shapes. Designed with steelwork construction through its vertical center, these buoys can be supplied with swivel end or custom end fittings.

Spherical mooring buoy with polyurethane outer skin

Construction & Materials

Resilient closed cell polyethylene/EVA foam core around inner steelwork
Polyurethane (PU) outer skin for abrasion and UV resistance
Self-fendering and unsinkable design, even when damaged
Optional nylon-reinforced protective coating for extreme environments

For deep water applications, these spherical mooring buoys can also be constructed with Synthetic Foam.

Cross-section diagram of spherical buoy construction

Close-up of spherical buoy surface texture

Surface Spherical Pick-up Buoys Specification

Type	Float Diameter (mm)	Overall Length (mm)	Weight (kg)	Net Buoyancy (kg)	Net Buoyancy (lbs)
SB-3030	300	300	2.2	12	26.4
SB-3050	300	500	3.5	24.5	53.5
SB-3070	300	700	5.7	37.5	82.5
SB-4040	400	400	4	28	61.6
SB-4060	400	600	5	29	63.8
SB-4070	400	700	6	52	114.4
SB-5050	500	500	6.5	60	132
SB-5070	500	700	7.5	62.5	137.5
SB-5080	500	800	10	94.5	207.9
SB-6260	620	600	13	112	246.4
SB-6276	620	760	17	148	325.6
SB-6294	620	940	21	200	440
SB-62108	620	1080	26	240	528
SB-8080	800	800	40	220	484
SB-100100	1000	1000	78	440	968
SB-120120	1200	1200	130	750	1650
SB-160160	1600	1600	320	1800	3960
