Commercial Modular Spherical Steel Mooring Buoy With Chain Through
Price:
USD$ 1000 - 6900
MOQ:
1pc
Delivery Time:
2~3 weeks
Brand:
DOOWIN MARINE
Product Description
Plastic Buoy Mooring Equipment Anchor Accessory Steel Mooring Floating Marine Buoys
Commercial barrel mooring buoy is one kind of representative mooring buoy. This commercial mooring buoy features a barrel shape with chain through, handling crucifix, and modular type design.
The steelwork construction runs vertically through the buoy's middle. It can be supplied with handling crucifix and chain-through design. The barrel mooring buoys are constructed with resilient closed cell polyethylene/EVA foam around the inner central steelwork, covered by polyurethane (PU) skin.
The resilient closed cell polyethylene/EVA foam core guarantees self-fendering and unsinkable performance even in case of damage. The self-colored polyurethane elastomer skin is resistant to abrasion and ultraviolet ray degradation.
Commercial Barrel Mooring Buoys Specification
We manufacture several types of barrel mooring buoys with various buoyancy ratings. Available options include Commercial Mooring Barrel Buoys with Chain Through, Handling Crucifix, and Modular designs.
Barrel Mooring Buoy with Handling Crucifix
| Type | Diameter (mm) | Length (mm) | Overall Height (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
| BMBH-1 | 1,050 | 1,800 | 1,950 | 400 | 1,000 | 2,205 |
| BMBH-2 | 1,300 | 2,080 | 2,200 | 540 | 2,000 | 4,409 |
| BMBH-3 | 1,540 | 2,080 | 2,400 | 650 | 3,000 | 6,614 |
| BMBH-4 | 1,500 | 2,900 | 2,350 | 880 | 4,000 | 8,818 |
| BMBH-5 | 1,650 | 2,900 | 2,500 | 1150 | 5,000 | 11,023 |
| BMBH-6 | 1,800 | 2,900 | 2,650 | 1250 | 6,000 | 13,228 |
| BMBH-8 | 1,900 | 3,600 | 3,260 | 2000 | 8,000 | 17,637 |
| BMBH-10 | 2,100 | 3,600 | 3,360 | 2200 | 10,000 | 22,046 |
| BMBH-12 | 2,200 | 3,850 | 3,460 | 2300 | 12,000 | 26,455 |
| BMBH-15 | 2,400 | 4,100 | 3,660 | 2550 | 15,000 | 33,069 |
| BMBH-20 | 2,700 | 4,150 | 3,960 | 3200 | 20,000 | 44,092 |
Barrel Mooring Buoy with Chain Through
| Type | Diameter (mm) | Length (mm) | Overall Height (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
| BMBC-06 | 880 | 1,240 | 1,175 | 110 | 600 | 1,320 |
| BMBC-1 | 1,050 | 1,500 | 1,050 | 225 | 1,000 | 2,200 |
| BMBC-2 | 1,250 | 2,100 | 1,250 | 415 | 2,000 | 4,400 |
| BMBC-3 | 1,520 | 2,100 | 1,520 | 575 | 3,000 | 6,600 |
| BMBC-4 | 1,520 | 2,900 | 1,520 | 1,100 | 4,000 | 8,800 |
| BMBC-5 | 1,650 | 2,900 | 1,650 | 1,100 | 5,000 | 11,000 |
| BMBC-6 | 1,820 | 2,900 | 1,820 | 1,200 | 6,000 | 13,200 |
| BMBC-8 | 1,970 | 3,150 | 1,970 | 1,400 | 8,000 | 17,600 |
| BMBC-10 | 2,100 | 3,500 | 2,100 | 1,700 | 10,000 | 22,000 |
| BMBC-15 | 2,400 | 4,100 | 2,400 | 2,550 | 15,000 | 33,000 |
| BMBC-20 | 2,700 | 4,150 | 2,700 | 3,200 | 20,000 | 44,000 |
| BMBC-25 | 2,750 | 5,900 | 2,750 | 4,700 | 25,000 | 55,000 |

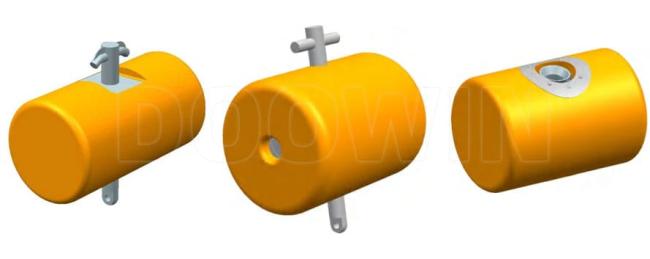

Other Design Barrel Mooring Buoy
