Barrel Commercial Mooring Buoys Chain Through Type Marine Barrier Floats
Price:
USD$ 1000 - 6900
MOQ:
1pc
Delivery Time:
2~3 weeks
Brand:
DOOWIN MARINE
Product Description
Commercial Barrel Mooring Buoys Chain Throughtype Marine PE Floats

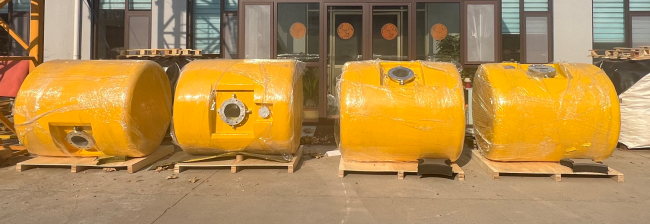

Commercial barrel mooring buoy is a representative mooring buoy type featuring a barrel shape with chain through, handling crucifix, and modular design. The steelwork construction runs vertically through the buoy's center, available with either handling crucifix or chain-through configurations.

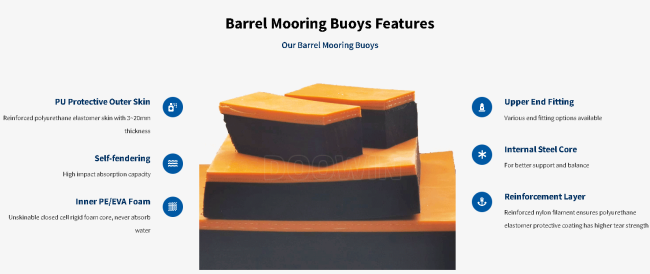

Constructed with resilient closed-cell polyethylene/EVA foam around the inner steelwork and covered by polyurethane (PU) skin, these buoys offer:
- Self-fendering capability and unsinkable design even when damaged
- Self-colored polyurethane elastomer skin resistant to abrasion and UV degradation
- Optional nylon-reinforced polyurethane coating for extreme environments
- Virtually maintenance-free with high tear strength
Commercial Barrel Mooring Buoys Specifications

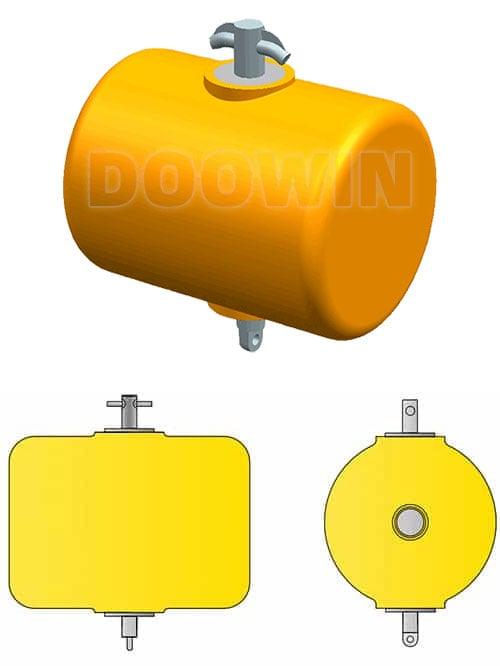

Barrel Mooring Buoy with Handling Crucifix
| Type | Diameter (mm) | Length (mm) | Overall Height (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
| BMBH-1 | 1,050 | 1,800 | 1,950 | 400 | 1,000 | 2,205 |
| BMBH-2 | 1,300 | 2,080 | 2,200 | 540 | 2,000 | 4,409 |
| BMBH-3 | 1,540 | 2,080 | 2,400 | 650 | 3,000 | 6,614 |
| BMBH-4 | 1,500 | 2,900 | 2,350 | 880 | 4,000 | 8,818 |
| BMBH-5 | 1,650 | 2,900 | 2,500 | 1,150 | 5,000 | 11,023 |
| BMBH-6 | 1,800 | 2,900 | 2,650 | 1,250 | 6,000 | 13,228 |
| BMBH-8 | 1,900 | 3,600 | 3,260 | 2,000 | 8,000 | 17,637 |
| BMBH-10 | 2,100 | 3,600 | 3,360 | 2,200 | 10,000 | 22,046 |
| BMBH-12 | 2,200 | 3,850 | 3,460 | 2,300 | 12,000 | 26,455 |
| BMBH-15 | 2,400 | 4,100 | 3,660 | 2,550 | 15,000 | 33,069 |
| BMBH-20 | 2,700 | 4,150 | 3,960 | 3,200 | 20,000 | 44,092 |
Barrel Mooring Buoy with Chain Through
| Type | Diameter (mm) | Length (mm) | Overall Height (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
| BMBC-06 | 880 | 1,240 | 1,175 | 110 | 600 | 1,320 |
| BMBC-1 | 1,050 | 1,500 | 1,050 | 225 | 1,000 | 2,200 |
| BMBC-2 | 1,250 | 2,100 | 1,250 | 415 | 2,000 | 4,400 |
| BMBC-3 | 1,520 | 2,100 | 1,520 | 575 | 3,000 | 6,600 |
| BMBC-4 | 1,520 | 2,900 | 1,520 | 1,100 | 4,000 | 8,800 |
| BMBC-5 | 1,650 | 2,900 | 1,650 | 1,100 | 5,000 | 11,000 |
| BMBC-6 | 1,820 | 2,900 | 1,820 | 1,200 | 6,000 | 13,200 |
| BMBC-8 | 1,970 | 3,150 | 1,970 | 1,400 | 8,000 | 17,600 |
| BMBC-10 | 2,100 | 3,500 | 2,100 | 1,700 | 10,000 | 22,000 |
| BMBC-15 | 2,400 | 4,100 | 2,400 | 2,550 | 15,000 | 33,000 |
| BMBC-20 | 2,700 | 4,150 | 2,700 | 3,200 | 20,000 | 44,000 |
| BMBC-25 | 2,750 | 5,900 | 2,750 | 4,700 | 25,000 | 55,000 |
Other Design Barrel Mooring Buoy
