Synthetic Tire Cord Reinforced Pneumatic Rubber Fenders Customized Aging Resistant
Price:
USD$ 199~5990$
MOQ:
1pc
Delivery Time:
2~3 weeks
Brand:
DOOWIN MARINE
Product Description
China Maker Boat Pneumatic Rubber Fender Natural Rubber Yokohama Ship Fender

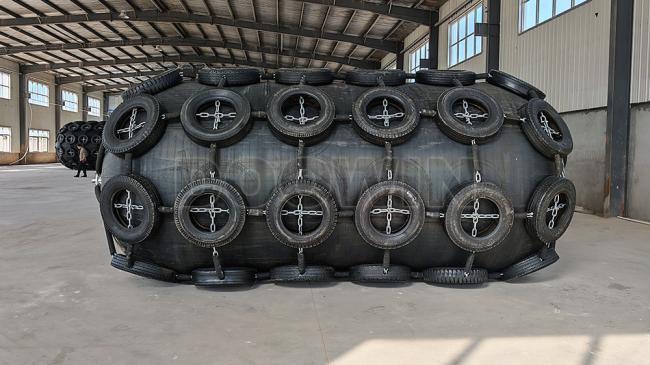

Pneumatic rubber fenders are constructed from synthetic-cord-reinforced rubber sheets with compressed air inside, enabling them to float on water and serve as shock absorbers between ships (ship-to-ship) or between ships and berthing structures during docking operations.
These fenders consist of an outer rubber layer, reinforcement synthetic-tire-cord layer, and inner rubber layer, all vulcanized firmly together. Fenders with diameters of 2500mm and larger include safety valves to release excess internal pressure during accidental over-compression. The material properties comply with ISO 17357:2002 standards.
Construction Components
- Outer Rubber: Protects cord layers and inner rubber from abrasion and external forces. The compound offers excellent tensile and tear resistance to withstand harsh weather conditions and heavy usage.
- Tire Cord Layers: Reinforcement layer designed to maintain internal air pressure integrity.
- Inner Rubber: Seals the pressurized air within the fender structure.
Performance Specifications
Floating pneumatic rubber fender performance is measured by Guaranteed Energy Absorption (GEA), Reaction Force at GEA deflection, and Hull Pressure at GEA deflection.
| Pneumatic Fenders Item | Pneumatic Rubber Fenders Parameter |
|---|---|
| Fender Diameter | 0.5 ~ 4.5m |
| Fender Length | 1.0 ~ 9m |
| Initial Pressure | 50kPa and 80kPa |
| Fender Type | Sling type, Net type, Hydro-pneumatic fender |
| Fender Standard | ISO 17357 : 2014 |
| Fender Application | Ship-to-ship, ship-to-port |
Performance Data
| D x L (mm) | P50 GEA (kNm) | P50 Reaction Force (kN) | P50 Hull Pressure (kN/m²) | P80 GEA (kNm) | P80 Reaction Force (kN) | P80 Hull Pressure (kN/m²) |
|---|---|---|---|---|---|---|
| 500x1000 | 6 | 64 | 132 | 8 | 85 | 174 |
| 600x1000 | 8 | 74 | 126 | 11 | 98 | 166 |
| 1000x1500 | 32 | 182 | 122 | 45 | 239 | 160 |
| 1000x2000 | 45 | 257 | 132 | 63 | 338 | 174 |
| 1200x2000 | 63 | 297 | 126 | 88 | 390 | 166 |
| 1350x2500 | 102 | 427 | 130 | 142 | 561 | 170 |
| 1500x3000 | 153 | 579 | 132 | 214 | 761 | 174 |
| 1700x3000 | 191 | 639 | 128 | 267 | 840 | 168 |
| 2000x3500 | 208 | 875 | 128 | 430 | 1150 | 168 |
| 2500x4000 | 663 | 1381 | 137 | 925 | 1815 | 180 |
| 2500x5500 | 943 | 2019 | 148 | 1317 | 2653 | 195 |
| 3300x4500 | 1175 | 1884 | 130 | 1640 | 2476 | 171 |
| 3300x6500 | 1814 | 3015 | 146 | 2532 | 3961 | 179 |
