PVC Proof Load Bags 1ton - 125ton Load Testing Water Bags LEEA 051 Standard
Price:
Negotiable
MOQ:
1pc
Delivery Time:
2~3 weeks
Brand:
DOOWIN MARINE
Product Description

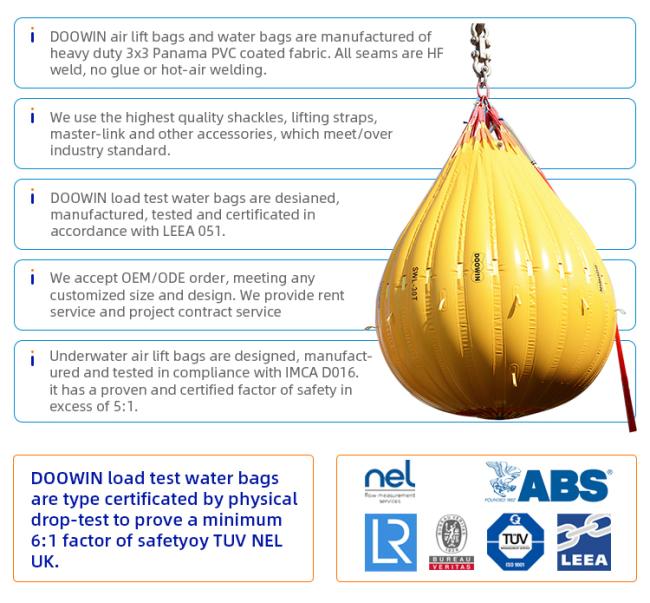

Proof Load Testing Water Bags
Proof load testing water bags are specialized equipment designed for load testing applications across various industries, including construction, marine, and industrial sectors. DOOWIN offers a comprehensive range of proof load testing water bags, ensuring compliance with global engineering standards such as the International Standards Organization (ISO). These water bags are also instrumental in meeting regulatory requirements from organizations like OSHA, IMO, and SOLAS.
Technical Features
- Weight range from 2-125 tons
- Strong PVC material
- Can be used in groups to perform tests up to 500,000 lbs and higher
- Easily foldable for more economical transportation
Typical Applications
- Crane testing
- Winch testing
- Construction
- Vessel Tests
Why Choose DOOWIN Water Bags?
- Rigorous Testing: All water bags undergo thorough inspection before deployment.
- Versatility: Suitable for diverse testing environments.
Construction and Features
- Masterlink and Shackles
- Webbing Slings
- Filling & Drain Water Hose
- Wireless Discharge Valve
Specification of DOOWIN Water Bags
| Model | Capacity | Max.Diameter | Filled Height | Gross Weight |
|---|---|---|---|---|
| PLB-1T | 1,000 KG | 1.3m | 2.2m | 50kg |
| PLB-2T | 2,000 KG | 1.5m | 2.9m | 65kg |
| PLB-3T | 3,000 KG | 1.8m | 2.8m | 100kg |
| PLB-5T | 5,000 KG | 2.2m | 3.7m | 130kg |
| PLB-6T | 6,000 KG | 2.3m | 3.8m | 150kg |
| PLB-8T | 8,000 KG | 2.4m | 3.9m | 160kg |
| PLB-10T | 10,000 KG | 2.7m | 4.8m | 180kg |
| PLB-12.5T | 12,500 KG | 2.9m | 4.9m | 220kg |
| PLB-15T | 15,000 KG | 3.1m | 5.5m | 240kg |
| PLB-20T | 20,000 KG | 3.4m | 5.5m | 300kg |
| PLB-25T | 25,000 KG | 3.7m | 5.7m | 330kg |
| PLB-30T | 30,000 KG | 3.9m | 6.3m | 360kg |
| PLB-35T | 35,000 KG | 4.2m | 6.5m | 420kg |
| PLB-40T | 40,000 KG | 4.3m | 7.5m | 450kg |
| PLB-50T | 50,000 KG | 4.8m | 7.5m | 560kg |
| PLB-55T | 55,000 KG | 4.9m | 7.8m | 600kg |
| PLB-75T | 75,000 KG | 5.3m | 8.8m | 820kg |
| PLB-100T | 100,000 KG | 5.7m | 8.9m | 1050kg |
| PLB-110T | 110,000 KG | 5.8m | 9.0m | 1100kg |
Water Weight Bags Drop Test in UK by TUV/NEL
