24 Inch Inflatable Ship Mooring Pick Up Buoy Plastic Anchor Mooring Buoys
| Attribute | Value |
|---|---|
| Product Name | 24 Inch Inflatable Ship Mooring Pick Up Buoy Plastic Anchor Mooring Buoys |
| Product Color | Yellow, orange, or customized |
| Skin | Polyurethane Elastomer |
| Product Lifespan | 10 years |
| Product Size | Varies depending on type and purpose |
| End Fittings | Hot Dipped Galvanized |
| Product Weight | Varies depending on type and purpose |
| Inner core | Closed cell foam core |
| Warranty | 2 years |
Foam mooring buoys are in service for inland waterways and offshore instead of traditional steel mooring buoys.
The cylindrical mooring buoy is one kind of representative mooring buoy. The cylindrical mooring buoys can be supplied in chain-through type, or equipped with pad-eye, crucifix, quick release hook, and maker or navigation equipment. Other varieties of end fittings are available to suit every case application. All end fittings are made of galvanized or painted steel to resist seawater corrosion.
Application for commercial mooring buoys are offshore and remote mooring, temporary mooring of vessels in a port, dock or harbour, additional mooring for large vessels on berthing/mooring dolphins and longer term mooring for infrequently used vessels.

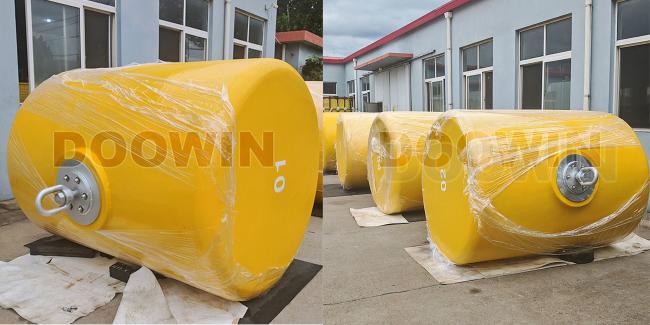

Commercial barrel mooring buoy is one kind of representative mooring buoy. This commercial mooring buoy has a barrel shape with chain through, handling crucifix, modular type.
The steelwork construction through the buoy’s middle vertically. It can be supplied with handling crucifix an chain-through design. The barrel mooring buoys are constructed by resilient closed cell polyethylene/EVA foam around the inner central steelwork, covered by polyurethane (PU) other skin. The resilient closed cell polyethylene/EVA foam core guarantees self-fendering and unsinkable even in case of damage. And self-colored polyurethane elastomer skin is resistant to abrasion and ultraviolet ray degradation.
For extreme service environments, the polyurethane elastomer skin can be reinforced by nylon to protective coating has higher tear strength, making the buoy long-lasting and virtually maintenance-free.
- Resilient out foam (available upon request)
- Rigid inner foam
- Internal steel core
- Load distribution plates
- Lower end fitting (mooring eye shown)
- Reinforced urethane elastomer skin
This drawing shows a typical specification only. For the specific design of each buoy, please feel free to contact us.
Commercial Barrel Mooring Buoys Specification
|
Type |
Diameter (mm) |
Length (mm) |
Overall Height (mm) |
Weight (kg) |
Net Buoyancy (kg) |
Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
|
BMBH-1 |
1,050 |
1,800 |
1,950 |
400 |
1,000 |
2,205 |
|
BMBH-2 |
1,300 |
2,080 |
2,200 |
540 |
2,000 |
4,409 |
|
BMBH-3 |
1,540 |
2,080 |
2,400 |
650 |
3,000 |
6,614 |
|
BMBH-4 |
1,500 |
2,900 |
2,350 |
880 |
4,000 |
8,818 |
|
BMBH-5 |
1,650 |
2,900 |
2,500 |
1150 |
5,000 |
11,023 |
|
BMBH-6 |
1,800 |
2,900 |
2,650 |
1250 |
6,000 |
13,228 |
|
BMBH-8 |
1,900 |
3,600 |
3,260 |
2000 |
8,000 |
17,637 |
|
BMBH-10 |
2,100 |
3,600 |
3,360 |
2200 |
10,000 |
22,046 |
|
BMBH-12 |
2,200 |
3,850 |
3,460 |
2300 |
12,000 |
26,455 |
|
BMBH-15 |
2,400 |
4,100 |
3,660 |
2550 |
15,000 |
33,069 |
|
BMBH-20 |
2,700 |
4,150 |
3,960 |
3200 |
20,000 |
44,092 |
Small buoyancy units from 90kg to 1t to support a small length of rope or cable wire so to pick up the line. Cylindrical or spherical in shape. Fitted with swivels on each ends.
|
Type |
Length (mm) |
Overall Length (mm) |
Diameter (mm) |
Weight (kg) |
Net Buoyancy (kg) |
Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
|
PUB-90 |
660 |
1000 |
515 |
42 |
90 |
200 |
|
PUB-225 |
910 |
1570 |
690 |
120 |
225 |
500 |
|
PUB-400 |
910 |
1570 |
900 |
155 |
400 |
889 |
|
PUB-800 |
910 |
1570 |
1150 |
180 |
800 |
1778 |
