Sailboat Mooring Chafe Chain Buoy Yacht Mooring Buoys
Price:
USD$ 200~3500
MOQ:
1pc
Delivery Time:
2~3 weeks
Brand:
DOOWIN MARINE
Product Description
Sailboat Mooring Chafe Chain Buoy Yacht Mooring Buoys
Foam mooring buoys are in service for inland waterways and offshore instead of traditional steel mooring buoys.
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | Sailboat Mooring Chafe Chain Buoy SBM Yacht Mooring Buoys |
| Product Color | Yellow, orange, or customized |
| Skin | Polyurethane Elastomer |
| Product Lifespan | 10 years |
| Product Size | Varies depending on type and purpose |
| End Fittings | Hot Dipped Galvanized |
| Product Weight | Varies depending on type and purpose |
| Inner core | Closed cell foam core |
| Warranty | 2 years |
Product Description

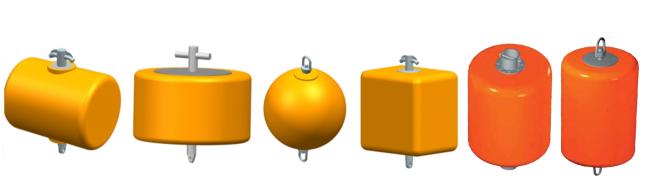

The cylindrical mooring buoy is one kind of representative mooring buoy. The cylindrical mooring buoys can be supplied in chain-through type, or equipped with pad-eye, crucifix, quick release hook, and maker or navigation equipment. Other varieties of end fittings are available to suit every case application. All end fittings are made of galvanized or painted steel to resist seawater corrosion.
Applications
Commercial mooring buoys are used for offshore and remote mooring, temporary mooring of vessels in a port, dock or harbour, additional mooring for large vessels on berthing/mooring dolphins and longer term mooring for infrequently used vessels.
- Resilient out foam (available upon request)
- Rigid inner foam
- Internal steel core
- Load distribution plates
- Lower end fitting (mooring eye shown)
- Reinforced urethane elastomer skin
Foam Filled Chain Through Buoys
Foam-filled chain support buoys with chain passing through the Buoy, from 1.5 Tons to 4.5 Tons (or more) - Cylindrical or rectangular in shape - Fitted with chain locking plate or chain locking pin, on one or both ends.
| Type | Length (mm) | Overall Length (mm) | Diameter (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
| CTB-1500 | 2000 | 2660 | 1195 | 520 | 1500 | 3333 |
| CTB-1700 | 2000 | 2660 | 1260 | 545 | 1700 | 3778 |
| CTB-2000 | 2000 | 2660 | 1325 | 560 | 2000 | 4445 |
| CTB-2250 | 2000 | 2660 | 1395 | 580 | 2250 | 5000 |
| CTB-2500 | 2000 | 2660 | 1450 | 610 | 2500 | 5556 |
| CTB-2750 | 2000 | 2660 | 1505 | 630 | 2750 | 6111 |
| CTB-3000 | 2000 | 2660 | 1565 | 658 | 3000 | 6667 |
| CTB-3500 | 2000 | 2660 | 1680 | 750 | 3500 | 7778 |
| CTB-4500 | 2000 | 2660 | 1900 | 880 | 4500 | 10000 |
This drawing shows a typical specification only. For the specific design of each buoy, please feel free to contact us.
Foam Filled Pick Up Buoys
Small buoyancy units from 90kg to 1t to support a small length of rope or cable wire so to pick up the line. Cylindrical or spherical in shape. Fitted with swivels on each ends.
| Type | Length (mm) | Overall Length (mm) | Diameter (mm) | Weight (kg) | Net Buoyancy (kg) | Net Buoyancy (lbs) |
|---|---|---|---|---|---|---|
| PUB-90 | 660 | 1000 | 515 | 42 | 90 | 200 |
| PUB-225 | 910 | 1570 | 690 | 120 | 225 | 500 |
| PUB-400 | 910 | 1570 | 900 | 155 | 400 | 889 |
| PUB-800 | 910 | 1570 | 1150 | 180 | 800 | 1778 |
Upper end fittings (various options available)
