EN 6mm ASTM A790 UNS S31803 304 Seamless Stainless Steel Tubing 316L Seamless
Price:
NEGOTIATION
MOQ:
100KGS
Delivery Time:
15-35DAYS
Brand:
YH
Product Description
EN 6MM ASTM A790 UNS S31803 304 Seamless Stainless Steel Tubing Pipe 316L Seamless
Product Specifications
| Steel grade | TP304/304L, TP316L, TP316Ti, TP321, TP309S, TP310S, S31803, 2205, 904L |
| Type | CS Seamless Pipe, SS Seamless Pipe, Black Seamless Pipe, GI Seamless Pipe |
| Standard | ASTM A312, A213, A269, A789, A790, EN, JIS, DIN 17175 |
| OD | 6MM-660MM |
| WT | 1mm - 50mm |
| Length | 0.5M-15M OR AS REQUESTED |
| Technique | COLD DRAWING, COLD ROLLED |
| Surface | ANNEALED AND PICKING OR POLISHED OR AS REQUESTED |
| Package | PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED |
| Application | Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Pharmaceutical Industries |
Product Description
ASTM EN, JIS, DIN 304/304L, 316/316L seamless stainless steel tubing
Key Features
- Exceptional corrosion resistance for demanding industrial environments
- Superior heat resistance and low-temperature performance
- High strength and durability for long service life
- Polished finish options for aesthetic applications
- Ideal for high-cleanliness environments including semiconductor manufacturing
- Widely used in petroleum refining, petrochemicals, and energy sectors
Standard Sizes
| A | O.D | SCH 5S | SCH 10S | SCH 20S | SCH 40 | SCH 80 | SCH 120 | SCH 160 |
|---|---|---|---|---|---|---|---|---|
| 6A | 10.5 | 1 | 1.2 | 1.5 | 1.7 | 2.4 | - | - |
| 8A | 13.8 | 1.2 | 1.65 | 2 | 2.2 | 3 | - | - |
| 10A | 17.3 | 1.2 | 1.65 | 2 | 2.3 | 3.2 | - | - |
| 15A | 21.7 | 1.65 | 2.1 | 2.5 | 2.8 | 3.7 | - | 4.7 |
| 20A | 27.2 | 1.65 | 2.1 | 2.5 | 2.9 | 3.9 | - | 5.5 |
| 25A | 34 | 1.65 | 2.8 | 3 | 3.4 | 4.5 | - | 6.4 |
| 32A | 42.7 | 1.65 | 2.8 | 3 | 3.6 | 4.9 | - | 6.4 |
| 40A | 48.6 | 1.65 | 2.8 | 3 | 3.7 | 5.1 | - | 7.1 |
| 50A | 60.5 | 1.65 | 2.8 | 3.5 | 3.9 | 5.5 | - | 8.7 |
| 65A | 76.3 | 2.1 | 3 | 3.5 | 5.2 | 7 | - | 9.5 |
| 80A | 89.1 | 2.1 | 3 | 4 | 5.5 | 7.6 | - | 11.1 |
| 90A | 101.6 | 2.1 | 3 | 4 | 5.7 | 8.1 | - | 12.7 |
| 100A | 114.3 | 2.1 | 3 | 4 | 6 | 8.6 | 11.1 | 13.5 |
| 125A | 139.8 | 2.8 | 3.4 | 5 | 6.6 | 9.5 | 12.7 | 15.9 |
| 150A | 165.2 | 2.8 | 3.4 | 5 | 7.1 | 11 | 14.3 | 18.2 |
| 200A | 216.3 | 2.8 | 4 | 6.5 | 8.2 | 12.7 | 18.2 | 23 |
| 250A | 267.4 | 3.4 | 4 | 6.5 | 9.3 | 15.1 | 21.4 | 28.6 |
| 300A | 318.5 | 4 | 4.5 | 6.5 | 10.3 | 17.4 | 25.4 | 33.3 |
| 350A | 355.6 | - | - | - | 11.1 | 19 | 27.8 | 35.7 |
| 400A | 406.4 | - | - | - | 12.7 | 21.4 | 30.9 | 40.5 |
| 450A | 457.2 | - | - | - | 14.3 | 23.8 | 34.9 | 45.2 |
| 500A | 508 | - | - | - | 15.1 | 26.2 | 38.1 | 50 |
| 550A | 558.8 | - | - | - | 15.9 | 28.6 | 41.3 | 54 |
| 600A | 609.6 | - | - | - | 17.5 | 31 | 46 | 59.5 |
| 650A | 660.4 | - | - | - | 18.9 | 34 | 49.1 | 64.2 |

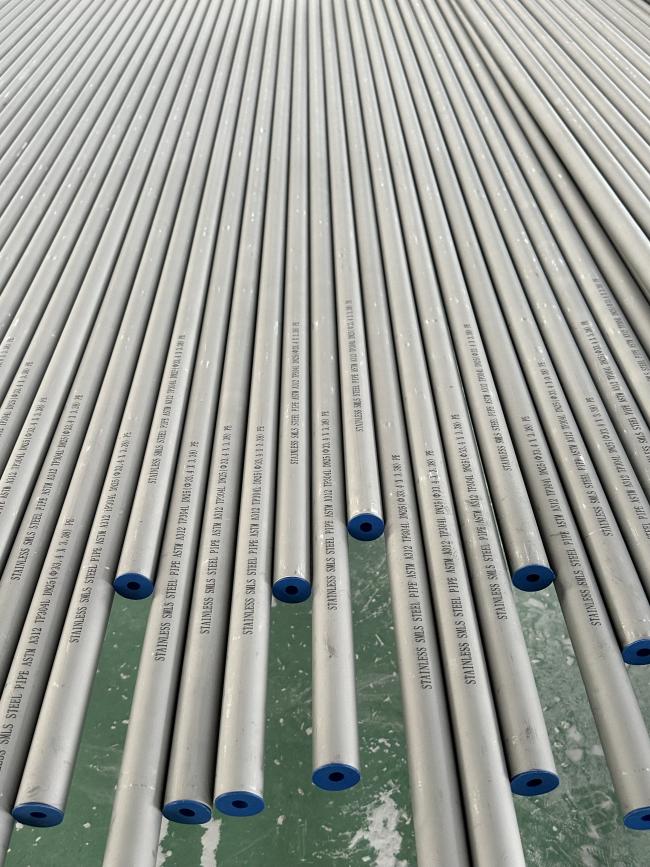

Factory Images
Frequently Asked Questions
Q1: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q2: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How is the quality about the products?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
