Double Male Thread Ball Valve Stainless Steel 316 304 NPT BSP
Price:
Negotiation
MOQ:
100kgs
Delivery Time:
3-10days
Brand:
YUHAO
Product Description
Stainless Steel Double Male Thread Ball Valve 316/304 NPT BSP
Product Attributes
| Attribute | Value |
|---|---|
| Standard | ASTM, JIS, GB, AISI, DIN, BS, EN |
| Bonnet Style | Threaded or Welded |
| Applications | Industrial, Chemical, Oil & Gas, Water Treatment, etc. |
| Thread | NPT, BSPT... |
| Port size | 1/8"-46" |
| Pressure | High/Medium/Low Pressure |
| Working pressure | 1000PSI/PN63 |
| Color | Silver, chrome, white, Customer's Request, Grey |
| Brand | YUHAO |
| Temperature of media | Medium Temperature, Normal Temperature, High Temperature |
Product Description
Customizable Durable Stainless Steel Valve Double Male Thread Ball Valve MxM Ball Valve
Yuhao specializes in manufacturing high-quality stainless steel double male thread ball valves, engineered to deliver superior performance and reliability in demanding industrial applications. Our dual male-end design provides secure threaded connections for efficient flow control in water systems, chemical processing, oil & gas, and general industrial piping.
Key Features & Benefits
- Premium 304/316 Stainless Steel - Offers exceptional corrosion resistance for harsh environments
- Double Male Thread Ends (NPT/BSP) - Enables direct installation between female threaded pipes without additional fittings
- Full Port Design - Ensures minimal pressure drop and unrestricted flow for maximum efficiency
- Fire-Safe Construction - Complies with API 607/6FA standards for hazardous environments
- Blowout-Proof Stem - Prevents stem ejection under high pressure for enhanced safety
- Teflon Seat Seals - Provides bubble-tight shutoff and long service life
- Quality Certified - Each valve undergoes hydrostatic testing to meet ISO, API, and ASME standards
Our Manufacturing Advantages
- Precision CNC Machining - Ensures perfect thread tolerance and leak-proof performance
- Comprehensive Size Range - Available from 1/4" to 48" with various pressure ratings (150# to 3000#)
- Competitive Pricing - Factory-direct pricing with bulk order discounts
- Fast Delivery - Maintain large inventory for 24-hour shipment of standard sizes
- Custom Solutions - Offer special materials (Duplex/Super Duplex) and modified designs
Yuhao's double male thread ball valves combine rugged durability with installation convenience, making them the ideal choice for your critical piping systems. Request a quote today for our complete product catalog and technical specifications!
Yuhao - Your Trusted Partner for Premium Valve Solutions
Product Information
| Place of Origin | Zhejiang, China |
| Thread | BSPT, BSPP, NPT, PS, DIN |
| Material | 316, 316L, 304, 304L, Carbon |
| Application | Oil, Water, Industrial, Chemical, Water |
| Brand | Yuhao |
| Size | Customized Size |
| Certificate | CE IS09001 ISO14001 IS045001 |
| Package | Standard sea worth bundles, Standard Plywood cases |
Product Dimensions
PN1.6MPa Main connection dimensions and weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 |
| H | 59 | 63 | 75 | 85 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 180 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(Kg) | 2.5 | 3 | 5 | 6 | 7 | 10 | 15 | 19 | 33 | 58 | 93 | 160 |

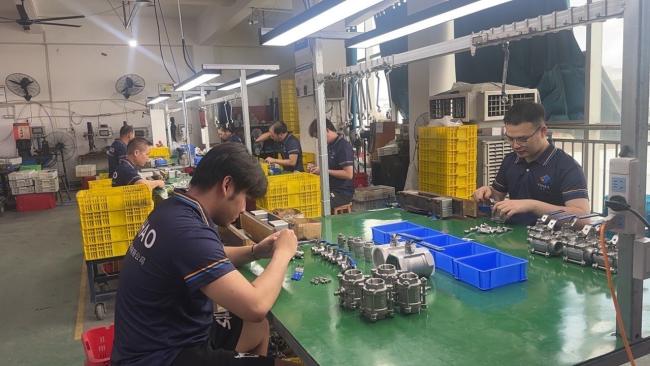

Factory Images
Frequently Asked Questions
Q1: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
