TP304 1/4 Inch Stainless Steel Seamless Pipes TP316L TP316Ti S31803
| Attribute | Value |
|---|---|
| Steel grade | TP304/304L, TP316L, TP316Ti, TP321, TP309S, TP310S, S31803, 2205, 904L |
| Type | CS Seamless Pipe, SS Seamless Pipe, Black Seamless Pipe, GI Seamless Pipe |
| Standard | ASTM A312, A213, A269, A789, A790, EN, JIS, DIN 17175 |
| OD | 1/4 inch - 36 inch |
| WT | SCH10, SCH40, SCH60, XS, SCH80 |
| Length | 0.5M-15M OR AS REQUESTED |
| Technique | COLD DRAWING, COLD ROLLED |
| Surface | ANNEALED AND PICKING OR POLISHED OR AS REQUESTED |

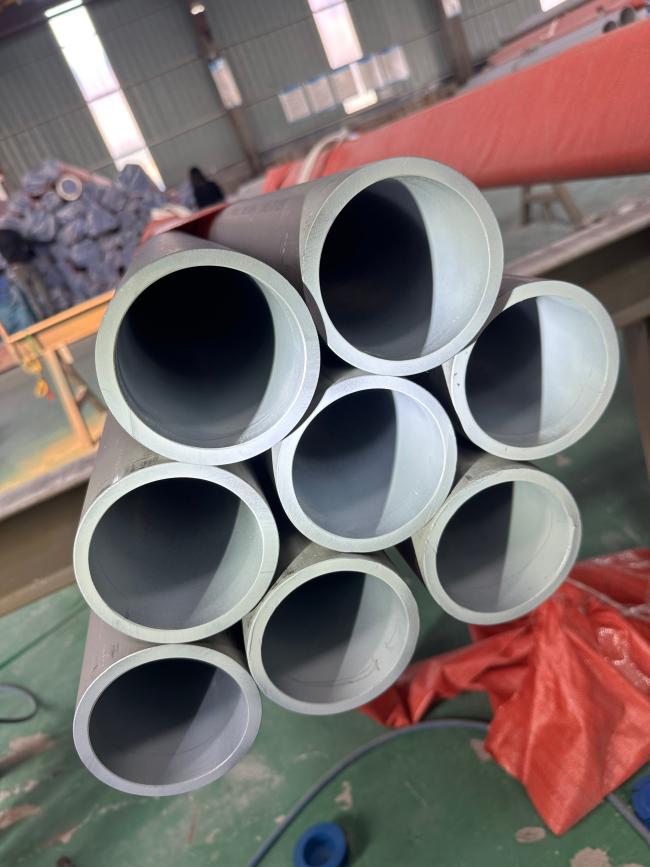

| Package | PACKAGED IN SEA-WORTH BUNDLES OR PLYWOODE CASE OR AS REQUESTED |
| Application | Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment, Pharmaceutical Industries |
Stainless steel seamless pipes are high-performance tubular products widely used in industries such as oil and gas, petrochemical, chemical, and power generation. These pipes are manufactured without any welding seams, ensuring uniform strength and durability throughout the structure. This seamless design allows them to withstand high pressure, extreme temperatures, and corrosive environments, making them ideal for demanding applications.
Available in various grades like 304, 316L, and 310S, they offer excellent corrosion resistance and mechanical properties. Common standards include ASTM A312 and DIN 17456. With sizes ranging from Φ6mm to Φ630mm, they are versatile for use in pipelines, boilers, heat exchangers, and mechanical structures.
| A | O.D | SCH 5S | SCH 10S | SCH 20S | SCH 40 | SCH 80 | SCH 120 | SCH 160 |
|---|---|---|---|---|---|---|---|---|
| 6A | 10.5 | 1 | 1.2 | 1.5 | 1.7 | 2.4 | - | - |
| 8A | 13.8 | 1.2 | 1.65 | 2 | 2.2 | 3 | - | - |
| 10A | 17.3 | 1.2 | 1.65 | 2 | 2.3 | 3.2 | - | - |
| 15A | 21.7 | 1.65 | 2.1 | 2.5 | 2.8 | 3.7 | - | 4.7 |
| 20A | 27.2 | 1.65 | 2.1 | 2.5 | 2.9 | 3.9 | - | 5.5 |
| 25A | 34 | 1.65 | 2.8 | 3 | 3.4 | 4.5 | - | 6.4 |
| 32A | 42.7 | 1.65 | 2.8 | 3 | 3.6 | 4.9 | - | 6.4 |
| 40A | 48.6 | 1.65 | 2.8 | 3 | 3.7 | 5.1 | - | 7.1 |
| 50A | 60.5 | 1.65 | 2.8 | 3.5 | 3.9 | 5.5 | - | 8.7 |
| 65A | 76.3 | 2.1 | 3 | 3.5 | 5.2 | 7 | - | 9.5 |
| 80A | 89.1 | 2.1 | 3 | 4 | 5.5 | 7.6 | - | 11.1 |
| 90A | 101.6 | 2.1 | 3 | 4 | 5.7 | 8.1 | - | 12.7 |
| 100A | 114.3 | 2.1 | 3 | 4 | 6 | 8.6 | 11.1 | 13.5 |
| 125A | 139.8 | 2.8 | 3.4 | 5 | 6.6 | 9.5 | 12.7 | 15.9 |
| 150A | 165.2 | 2.8 | 3.4 | 5 | 7.1 | 11 | 14.3 | 18.2 |
| 200A | 216.3 | 2.8 | 4 | 6.5 | 8.2 | 12.7 | 18.2 | 23 |
| 250A | 267.4 | 3.4 | 4 | 6.5 | 9.3 | 15.1 | 21.4 | 28.6 |
| 300A | 318.5 | 4 | 4.5 | 6.5 | 10.3 | 17.4 | 25.4 | 33.3 |
| 350A | 355.6 | - | - | - | 11.1 | 19 | 27.8 | 35.7 |
| 400A | 406.4 | - | - | - | 12.7 | 21.4 | 30.9 | 40.5 |
| 450A | 457.2 | - | - | - | 14.3 | 23.8 | 34.9 | 45.2 |
| 500A | 508 | - | - | - | 15.1 | 26.2 | 38.1 | 50 |
| 550A | 558.8 | - | - | - | 15.9 | 28.6 | 41.3 | 54 |
| 600A | 609.6 | - | - | - | 17.5 | 31 | 46 | 59.5 |
| 650A | 660.4 | - | - | - | 18.9 | 34 | 49.1 | 64.2 |
