304L SS Buttweld End Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings
Price:
Negotiation
MOQ:
100kgs
Delivery Time:
15days
Brand:
Yuhao
Product Description
304L SS Butt Welded Cap Sand Rolling Stainless Steel Butt Welded Pipe Fittings
Product Specifications
| Brand Name | Yuhao |
| Wall Thickness | SCH5S, SCH10S, SCH20S, SCH40S, SCH80, SCH160 |
| Standard | ASTM A403, ASTM A815, ASTM A234 |
| Surface Finish | Polished, Rolled Sand, Pickling |
| Material | 304, 304L, 316, 316L, 321, 310 |
| Pipe Fitting Type | Cap |
| Connection Type | Butt Welded |
| Application | Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Mechanical Manufacturing |
| Dimensions | DN15-DN800 |
| Country Of Origin | China |
Product Description
A steel pipe cap, also known as a steel plug, is used to seal the end of a pipe, either by welding or threading onto the external pipe end. Its primary function is to close the pipeline, similar to a pipe plug. Unlike a detachable blind plate, a welded steel cap is permanent.
The cap can take various forms, including convex, conical, variable diameter, flat, or constricted designs. Convex caps come in shapes like hemispherical, elliptical, dish, and spherical. While hemispherical caps are challenging to manufacture due to force distribution, they are feasible from a production perspective.
Product Dimensions
| DN | NPS | OD | Nominal Wall Thickness |
|---|---|---|---|
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | - | - | 1.73 | 1.73 | - | 2.41 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 3.02 | - | - | - | 2.24 | 2.24 | - | 3.02 |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.2 | - | - | - | 2.31 | 2.31 | - | 3.2 |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | - | - | - | 2.77 | 2.77 | - | 3.73 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | - | - | - | 2.87 | 2.87 | - | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | - | - | - | 3.38 | 3.38 | - | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | - | - | - | 3.56 | 3.56 | - | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | - | - | - | 3.68 | 3.68 | - | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | - | - | - | 3.91 | 3.91 | - | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 7.01 | - | - | - | 5.16 | 5.16 | - | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | - | - | - | 5.49 | 5.49 | - | 7.62 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | - | - | - | 5.74 | 5.74 | - | 8.08 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | - | - | - | 6.02 | 6.02 | - | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | - | - | - | 6.55 | 6.55 | - | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 10.97 | - | - | - | 7.11 | 7.11 | - | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.7 | - | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 12.7 | - | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.7 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 |
| 450 | 18 | 457 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | - | - | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 |

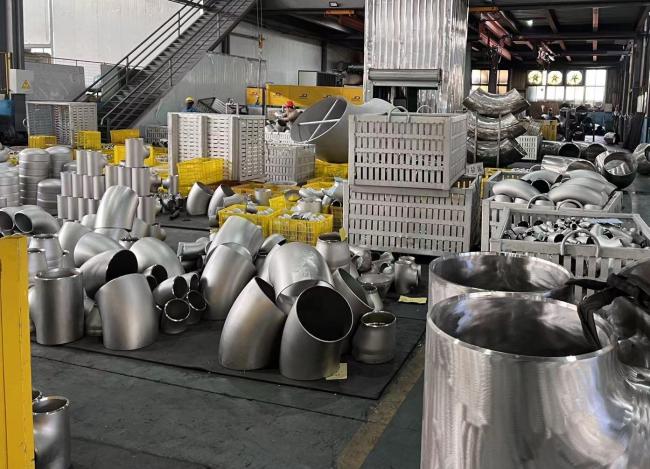

Product Images
Frequently Asked Questions
Q1: What products can you buy from YUHAO?
A: Various sizes and models of flanges and pipe fittings, and we accept customized orders.
Q2: Do you provide samples? Is it free or extra?
A: Yes, we offer samples free of charge but the customer must pay for shipping costs.
Q3: How long is your production lead time?
A: Generally 5-10 days for in-stock items, or 15-20 days for out-of-stock items, depending on quantity.
Q4: What products and services can you supply?
A: We supply various metal raw materials and products including pipes, pipe fittings, flanges, coils, sheets, round bars, and more.
Q5: How do you ensure product quality?
A: Our dedicated quality team rigorously inspects each production stage, with every product undergoing factory testing before shipment.
