B16.9 A234 ASME Stainless Steel Buttweld Caps 304 316L 904
Price:
Negotiation
MOQ:
100kgs
Delivery Time:
15days
Brand:
YUHAO
Product Description
ASME B16.9 A234 Stainless Steel 304 316L 904 Butt Welded Seamless Pipe End Caps
Product Specifications
| Attribute | Value |
|---|---|
| End Type | Beveled |
| Wall Thickness | SCH5S, SCH10S, SCH20S, SCH40S, SCH80, SCH160 |
| Standard | ASTM A403, ASTM A815, ASTM A234 |
| Surface Finish | Polished, Rolled Sand, Pickling |
| Material | 304, 304L, 316, 316L |
| Pipe Fitting Type | Cap |
| Connection Type | Butt Welded |
| Application | Oil, Gas, Chemical, Petrochemical, Power, Industrial Piping, Medical Equipment |
| Dimensions | DN5-DN1200 |
| Size | 1/2" ~ 48" |
| Usage | Pipeline Connection |
Product Description
Our stainless steel butt welded end caps provide reliable termination solutions for high-performance piping systems. Precision-manufactured from premium 304/316/316L stainless steel, these components deliver:
- Secure System Closure: Perfectly seals pipe ends to prevent contamination and leakage
- Exceptional Durability: Superior corrosion and pressure resistance for demanding applications
- Precision Engineering: Strict compliance with ASME B16.9, ANSI B16.25 standards
- Seamless Integration: Perfectly matched butt weld ends for easy installation
- Versatile Applications: Ideal for chemical processing, oil & gas, power generation, and water treatment systems
Advanced Production Capabilities
- State-of-the-art CNC forming technology
- Automated orbital welding systems
- Full-range pressure testing facilities
Rigorous Quality Assurance
- 100% material traceability with certified MTC
- Precise dimensional verification
- Optional NDT testing (RT/UT/PT) available
Inventory & Supply Advantages
Our extensive stock ensures immediate availability:
- Comprehensive Size Range: 1/2" to 36" standard sizes ready to ship
- Full Schedule Coverage: SCH 10S through SCH 160
- Custom Solutions: Special sizes, materials, and finishes available
Our stainless steel butt welded end caps offer the perfect combination of quality, reliability, and performance for your critical piping systems. Contact our sales team today for immediate quotations and expert technical consultation.
Additional Specifications
| Place of Origin | China |
| Brand Name | Yuhao |
| Connectivity | Welding |
| Size | DN15-DN2400 (1/2"-48") |
| Wall Thickness | SCH 5s-SCH XXS |
| Customized Support | ASTM DIN EN BS JIS GOST etc. |
| Surface Treatment | Sand blasting, Roll blasting, Pickled or Polished |
| Material | 304, 304L, 316, 316L |
| Pressure | High Pressure |
| Packing | Cartons, Pallet, Cases |
Product Size Chart
| DN | NPS | OD | Nominal Wall Thickness |
|---|---|---|---|
| 6 | 1/8 | 10.3 | - | 1.24 | 1.73 | 2.41 | - | - | - | 1.73 | 1.73 | - | 2.41 |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 3.02 | - | - | - | 2.24 | 2.24 | - | 3.02 |
| 10 | 3/8 | 17.1 | - | 1.65 | 2.31 | 3.2 | - | - | - | 2.31 | 2.31 | - | 3.2 |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 3.73 | - | - | - | 2.77 | 2.77 | - | 3.73 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 3.91 | - | - | - | 2.87 | 2.87 | - | 3.91 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 4.55 | - | - | - | 3.38 | 3.38 | - | 4.55 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 4.85 | - | - | - | 3.56 | 3.56 | - | 4.85 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 5.08 | - | - | - | 3.68 | 3.68 | - | 5.08 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 5.54 | - | - | - | 3.91 | 3.91 | - | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 5.16 | 7.01 | - | - | - | 5.16 | 5.16 | - | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 7.62 | - | - | - | 5.49 | 5.49 | - | 7.62 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 8.08 | - | - | - | 5.74 | 5.74 | - | 8.08 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 8.56 | - | - | - | 6.02 | 6.02 | - | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 9.53 | - | - | - | 6.55 | 6.55 | - | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 10.97 | - | - | - | 7.11 | 7.11 | - | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 12.7 | - | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 12.7 | - | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 12.7 | - | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 |
| 400 | 16 | 406.4 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 |
| 450 | 18 | 457 | 4.19 | 4.78 | - | - | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 |
| 500 | 20 | 508 | 4.78 | 5.54 | - | - | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 |

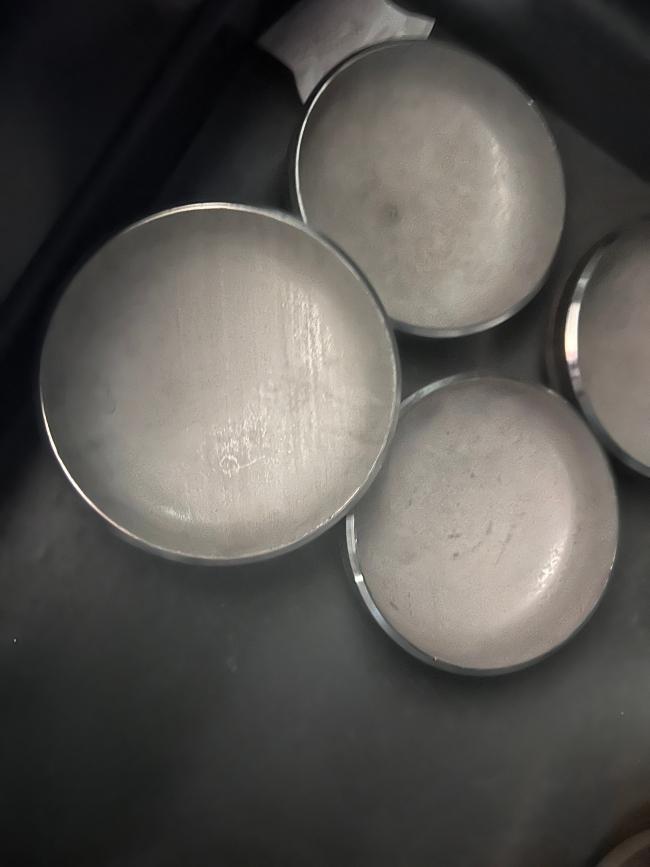

Product Images
Frequently Asked Questions
Q1: What is your minimum order quantity?
The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q2: Delivery time?
1-7 days for small order. 10-20 days for big order.
Q3: Can I customize products?
Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Do you provide samples? Is it free or extra?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
