ASTM RF RTJ Stainless Steel Pipe Flange Class 300 Weld Neck Flange
Price:
Negotation
MOQ:
100KGS
Delivery Time:
2-10 work days
Brand:
Yuhao
Product Description
ASTM RF RTJ Stainless Steel Pipe Flange Class 300 Weld Neck Flange
Product Specifications
Material
304, 304L, 306, 306L, 316, 316L
Application
Connection, Decoration, Oil and Gas, Automotive, New Energy, Chemical
Standard
ASTM, AISI, GB, JIS, ANSI
Flange Face Type
RF (Raised Face), RTJ (Ring Type Joint)
Package
Standard Seaworthy Packaging, wooden cases
Certification
ISO, API, BV, CE
Connection
Welding
Pressure
Class150/300/600/900/1500/2500
Dimensions
1/2", 2", 3", 4", 6", 8", 10", up to 24"
Product Description
A weld neck flange features a long, tapered hub that smoothly connects to the pipe or fitting via butt welding. During installation, the pipe end is inserted into the flange and welded around its circumference, forming a strong, leak-proof joint. The hub's design reinforces the flange, reducing the likelihood of distortion or damage.
Widely used in high-pressure and high-temperature applications across industries such as petrochemical, oil and gas, and power generation, weld neck flanges are produced from materials like carbon steel, stainless steel, and alloy steel to meet diverse operational demands.
Product Dimensions
| DN | Pipe OD | Connection Size | Flange Thickness (mm) | Flange ID | Flange OD | Bolt Hole Circle Diameter |
|---|---|---|---|---|---|---|
| 10 | 17.2 | 14 | 14 | 18 | 90 | 60 |
| 15 | 21.3 | 18 | 14 | 22.5 | 95 | 65 |
| 20 | 26.9 | 25 | 16 | 27.5 | 105 | 75 |
| 25 | 33.7 | 32 | 16 | 34.5 | 115 | 85 |
| 32 | 42.4 | 38 | 18 | 43.5 | 140 | 100 |
| 40 | 48.3 | 45 | 18 | 49.5 | 150 | 110 |
| 50 | 60.3 | 57 | 19 | 61.5 | 165 | 125 |
| 65 | 76.1 | 76 | 20 | 77.5 | 185 | 145 |
| 80 | 88.9 | 89 | 20 | 90.5 | 200 | 160 |
| 100 | 114.3 | 108 | 22 | 116 | 220 | 180 |
| 125 | 139.7 | 133 | 22 | 143.5 | 250 | 210 |
| 150 | 168.3 | 159 | 24 | 170.5 | 285 | 240 |
| 200 | 219.1 | 219 | 24 | 221.5 | 340 | 295 |
| 250 | 273 | 273 | 26 | 276.5 | 395 | 350 |
| 300 | 323.9 | 325 | 26 | 328 | 445 | 400 |
| 350 | 355.6 | 377 | 28 | 360 | 505 | 460 |
| 400 | 406.4 | 426 | 32 | 411 | 565 | 515 |
| 450 | 457 | 480 | 36 | 462 | 615 | 565 |
| 500 | 508 | 530 | 38 | 513.5 | 670 | 620 |
| 600 | 610 | 630 | 42 | 616.5 | 780 | 725 |

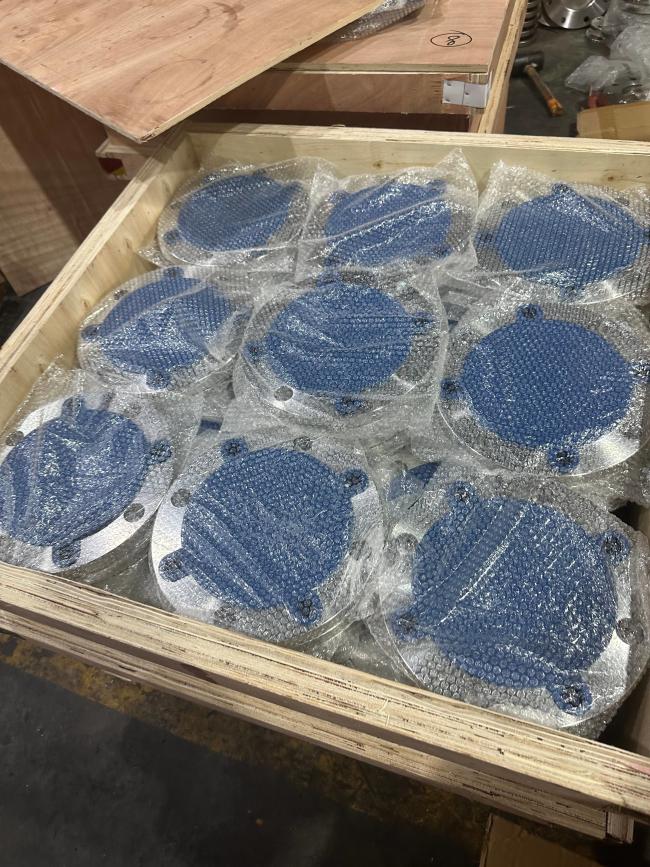

Product Images
Frequently Asked Questions
Q: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company, with more than 12 years export experience.
Q: What services do you provide?
A: We supply various metal raw materials and products, including pipes, pipe fittings, flanges, coil, sheet, round bar and more.
Q: Do you provide free samples?
A: We can provide free samples, but the shipping cost needs to be covered by the customer.
Q: What is your minimum order quantity?
A: The MOQ varies by product. Please check the product detail page or contact us with the product link for specific information.
Q: What is your production lead time?
A: Typically 5-10 days for in-stock items, or 15-20 days for out-of-stock items, depending on quantity.
